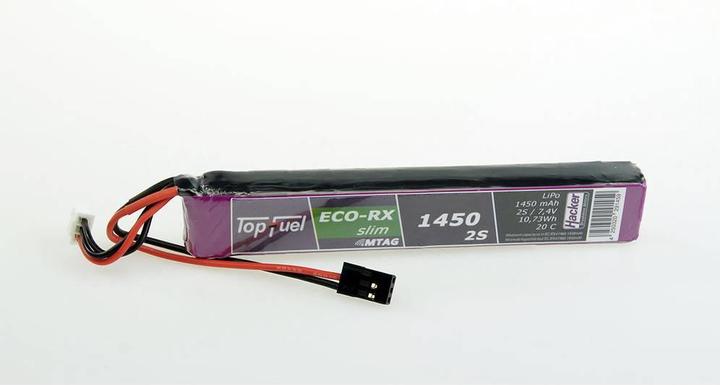

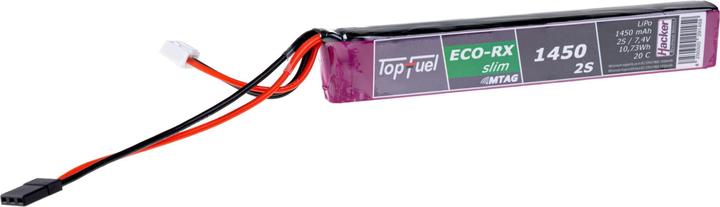

TopFuel LiPo 20C ECO-X 1450mAh 2S Slim RX MTAG

Product Description and Features

High-quality and durable LiPo battery. Due to its slim design, it is perfectly suited for narrow fuselages.

Ideal for powering receivers in all models where weight and size are important factors.

Battery Connections
JR Connector
XH Balancer Plug

Internal Chip for Battery Telemetry
The passive MTAG chip stores battery data such as type, number of cells, capacity, C-rate, and battery ID. These values can be read out as needed with an external NFC sensor, such as the HACKER or JETI MTAG, and integrated into the transmitter telemetry.

Additionally, the built-in MTAG chip allows for manual or automatic counting and storing of charge cycles. When using multiple identical batteries in series or parallel operation, this enables more effective active battery management.

Note: It is up to the user whether to utilize the MTAG function or not. The TopFuel battery can be used like any standard battery without MTAG.

Technical Specifications

• Battery Type: LiPo
• Configuration: 2S
• Cells: 2S
• Nominal Voltage [V]: 7.4V
• Capacity [mAh]: 1450
• C-Rate: 20C
• Balancer Connector: XH

Dimensions and Weights

• Length [mm]: 125
• Width [mm]: 14
• Height [mm]: 20
• Weight [g]: 70.5.
