Powerbox Systems Cable set Premium one4one
More than 10 items in stock at supplier
Product details

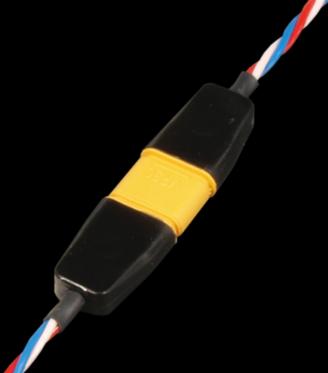

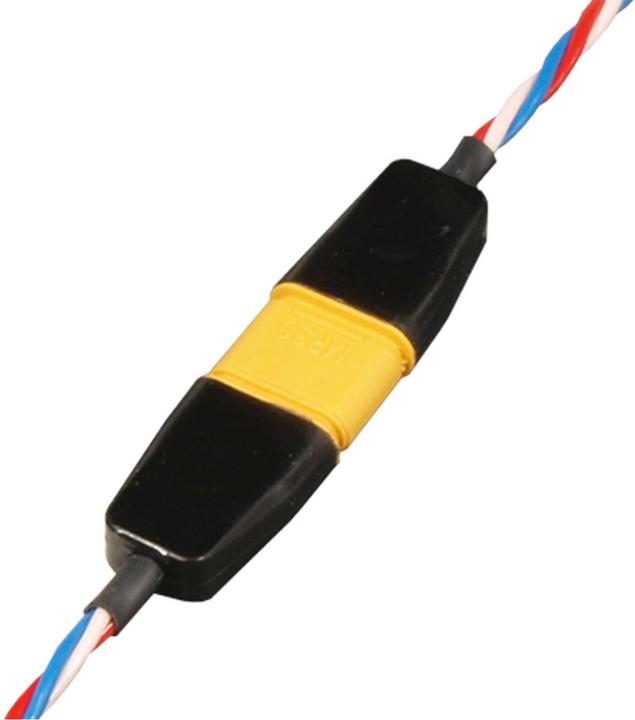

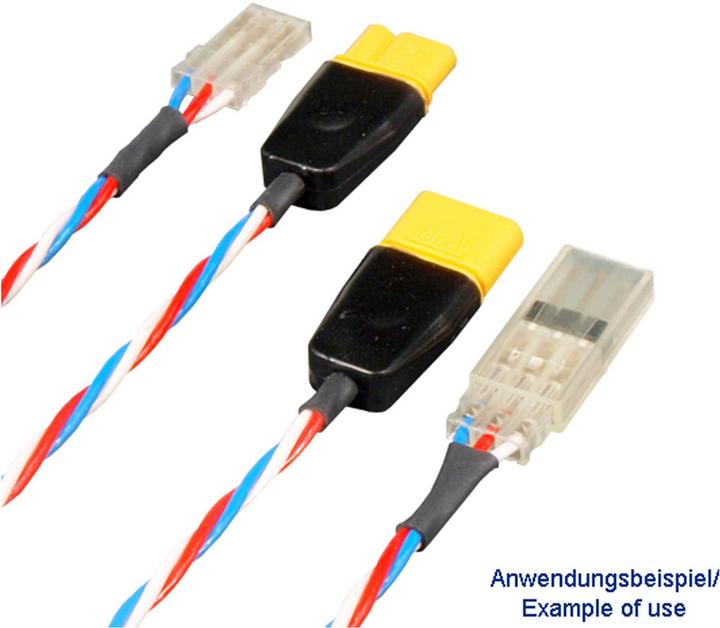

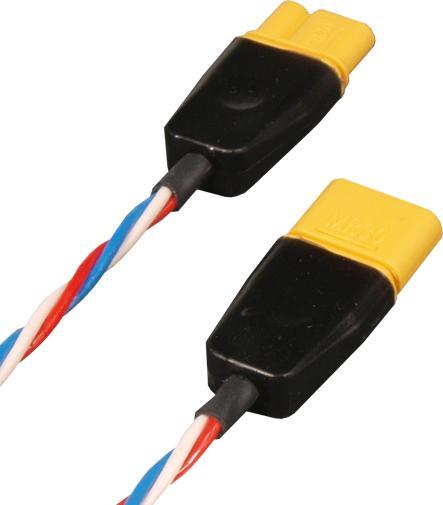

Until now, the only option was to connect individual servos, for example in the elevator, using a uni-plug. With the new Wingconnector "one4one," a whole range of improvements has been introduced: The new connectors feature robust 2mm gold contacts that ensure a perfect fit even after frequent plugging. Thanks to the hot melt encapsulation in the solder joint area, the cable is optimally strain-relieved and protected against all external influences. With the optionally attachable mounts, the connector can be securely installed in the fuselage, and the "one4one" cable set is also polarity-safe. To top it off, the lightweight and highly flexible premium cable is used. The standard set includes cable lengths of 40cm and 120cm per side, along with two mounting brackets.
Features:
• 2mm gold contacts for maximum current load
• 0.35mm² cross-section
• Lengths of 40cm/120cm
• High-strength insulation of solder joints
• Excellent long-term usability
• No oxidation of solder joints possible
• Vibration protection
• Bend protection
• Resistant to chemical influences
• Temperature resistant from -30°C to +90°C
• With optional mounting tabs
• Secure fit guaranteed even with frequent plugging.
RC Plug type | Gold contact 2mm |
Cable + connector type | Cable with plug |
Items per sales unit | 1 x |
Item number | 12687378 |
Manufacturer | Powerbox Systems |
Category | RC cables + Plugs |
Manufacturer no. | 1132 |
Release date | 6.2.2020 |
Colour | Black, Yellow |
Exact colour description | Black, Yellow |
Cable + connector type | Cable with plug |
RC Plug type | Gold contact 2mm |
AWG | 20 |
Max. temperature | 90 °C |
Min. temperature | -30 °C |
Manufacturer Type | 1132 |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1x Premium one4one cable set |
Diameter | 0.35 mm |
Length | 1800 mm |
Width | 0.35 mm |
Length | 7.90 cm |
Width | 7.50 cm |
Height | 1.70 cm |
Weight | 29 g |
