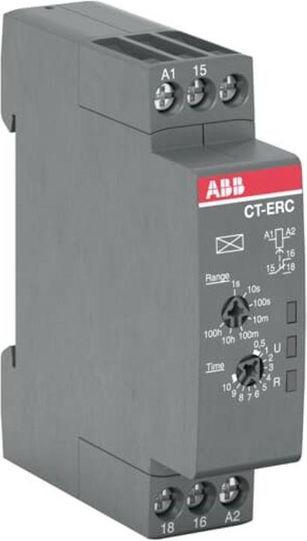

ABB Stotz S&J delayed action time relay CT-ERC.12

Manufacturer: ABB Stotz S&J
Designation: Delayed action time relay
Type: CT-ERC.12
Electrical connection type: Screw connection
Delayed action function: Yes
Fallback delay function: No
Switch-on pulse function: No
Switch-off pulse function: No
Star/Delta function: No
Pulse shaping function: No
Blinking function starting with pause, fixed time: No
Blinking function starting with pulse, fixed time: No
Pulsing function starting with pause, variable: No
Pulsing function starting with pulse, variable: No
With plug socket: No
Remote control possible: No
Suitable as remote control: No
Can be mounted on contactor: No
Rated control supply voltage Us at AC 50 Hz: 24-240 V
Rated control supply voltage Us at AC 60 Hz: 24-240 V
Rated control supply voltage Us at DC: 24-48 V
Voltage type for operation: AC/DC
Rated current: 4 A
Time range: 0.05-360000 s
Number of outputs, non-delayed, changeover: 1
Number of outputs, delayed, changeover: 1
Outputs switchable delayed/non-delayed: No
With semiconductor output: No
Suitable for DIN rail mounting: Yes
Suitable for front mounting: No
Width: 17.5 mm
Height: 70 mm
Depth: 63 mm

ABB Stotz S&J delayed action time relay CT-ERC.12: additional details
The time relays of the CT-C series combine high quality and excellent performance with low costs. All important timing functions are offered in a space-saving width of 17.5 mm. The series includes 11 single or multifunction devices with a time range from 0.05 s to 100 h. Its wide voltage input allows for global, flexible use.
EAN: 4013614534317.
