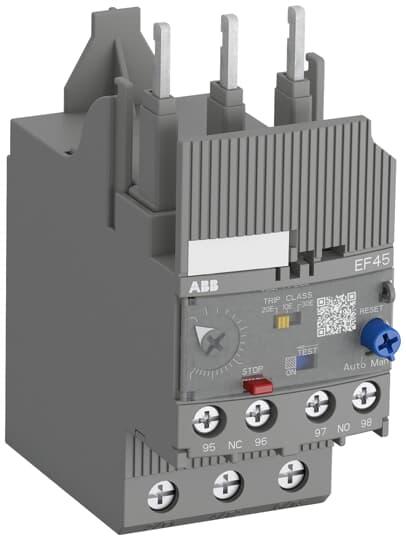

ABB Stotz S&J overload relay EF45-45

Manufacturer: ABB Stotz S&J
Designation: Overload relay 160A 15.0-45.0
Type: EF45-45
Adjustable current range: 15...45 A
Mounting type: Direct mounting
Connection type main circuit: Screw connection
Number of auxiliary contacts as NC contacts: 1
Number of auxiliary contacts as NO contacts: 1
Rated control supply voltage Us at AC 50 Hz: 0 V
Rated control supply voltage Us at AC 60 Hz: 0 V
Rated control supply voltage Us at DC: 0 V
Tripping class: Adjustable
Voltage type for actuation: Self-powered
Reset function automatic: Yes
Reset function input: No
Reset function push-button: Yes

ABB Stotz S&J overload relays EF45-45 are self-powered electronic overload relays that do not require an additional external power supply. They reliably protect motors in the event of an overload or phase failure. Like thermal overload relays, they are easy to use and compatible with standard motor applications. They are notable for their wide setting range, high accuracy, high operating temperature range, and the possibility of selecting from three tripping classes (10E, 20E, 30E). The overload relays are connected directly to the contactors. Single installation sets are available as accessories. Manual or automatic reset is selectable, with phase loss sensitivity according to IEC/EN 60947-4-1, temperature compensation, TEST and STOP function, tripped indication on the front, and trip and signal contact integrated (1 NO/1 NC).
