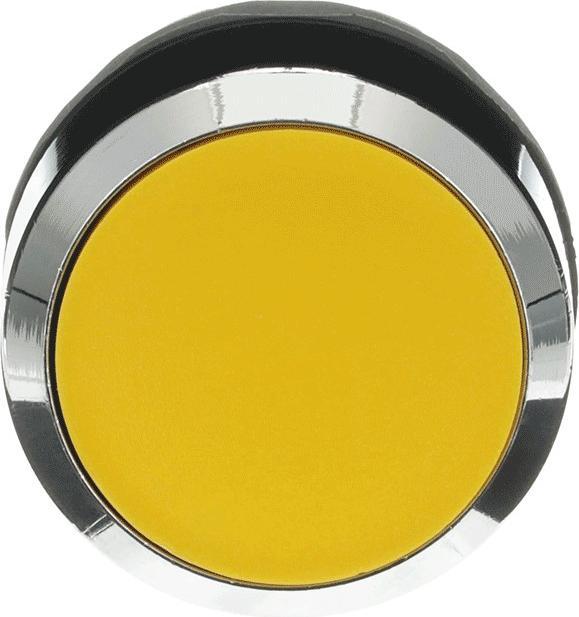

ABB Stotz S&J Pushbutton Attachment MP1-30Y

Manufacturer: ABB Stotz S&J
Designation: Yellow pushbutton attachment
Type: MP1-30Y
Button color: Yellow
Number of command points: 1
Lens shape: Round
Hole diameter: 22 mm
Opening width: 28 mm
Opening height: 11.5 mm
Button shape: Flat
Suitable for lighting: No
With protective cover: No
Labeled: No
Latching switching function: No
Momentary: Yes
With front ring: Yes
Material of front ring: Metal
Front ring color: Chrome
Protection class (IP), front side: IP66
Protection class (NEMA), front side: 4X

ABB Stotz S&J Pushbutton Attachment MP1-30Y: Additional details
Control and signaling devices, series: Plastic Modular. A versatile selection of actuators, drives, contact blocks, LED light sources, and accessories with high flexibility. High electrical performance of the switching contacts: AC-15, 6A at 230 V. The flexible solution that simplifies your inventory management. The following standards and approvals are met: IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5. The complete list of all technical data and standards met can be found in our product data sheets.
