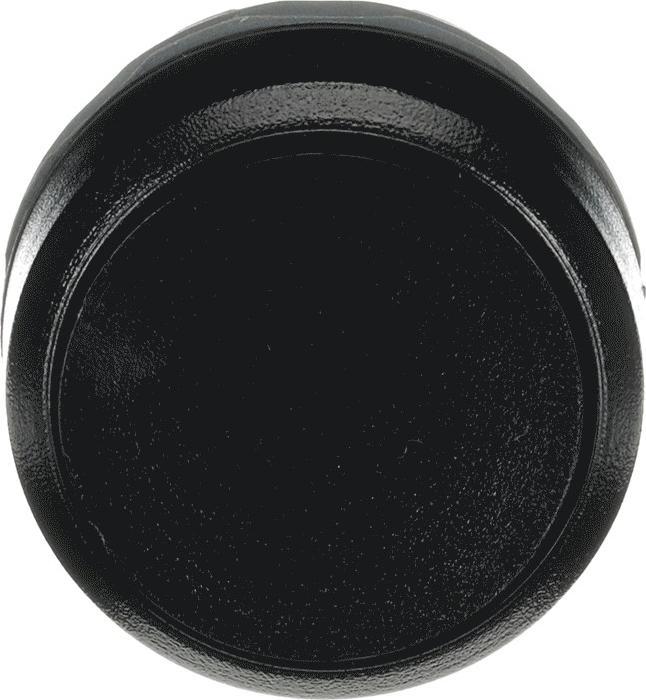

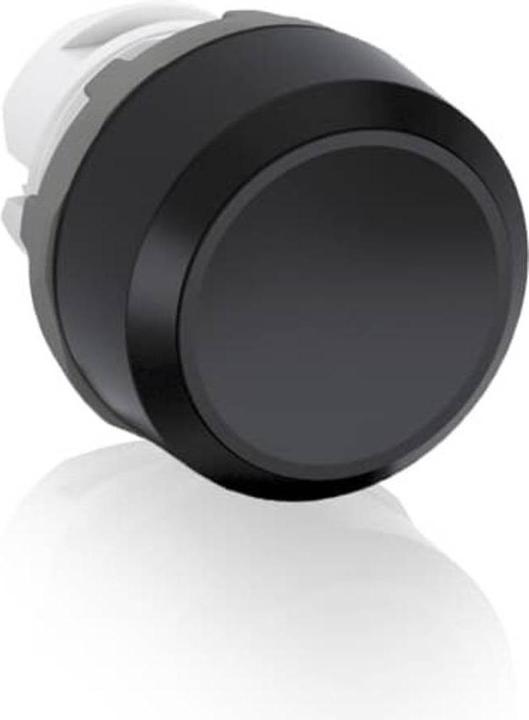

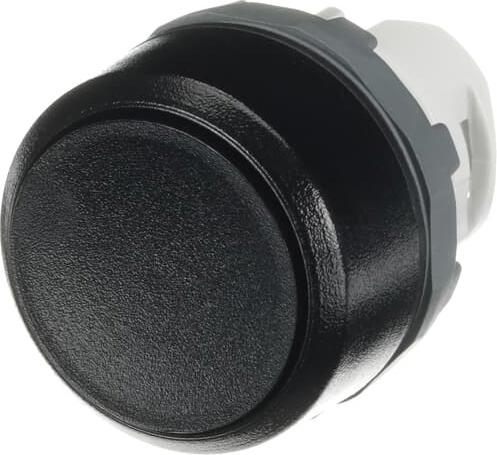

ABB Stotz S&J Push Button MP1-10B

Manufacturer: ABB Stotz S&J
Designation: Black push button, momentary, flat
Type: MP1-10B
Button color: black
Number of command positions: 1
Lens shape: round
Hole diameter: 22 mm
Opening width: 28 mm
Opening height: 11.5 mm
Button shape: flat
Suitable for lighting: no
With protective cover: no
Labeled: no
Latching switch function: no
Momentary: yes
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP), front side: IP66
Protection class (NEMA), front side: 4X

ABB Stotz S&J Push Button MP1-10B: additional details
Control and signaling devices, series: Plastic Modular. A versatile selection of actuators, drives, contact blocks, LED light sources, and accessories with high flexibility. High electrical performance of the switching contacts: AC-15, 6A at 230 V. The flexible solution that simplifies your inventory management. The following standards and approvals are met: IEC/EN 60947-1: Low-voltage switchgear and controlgear Part 1: General rules / IEC/EN 60947-5-1: Low-voltage switchgear and controlgear - Part 5-1: Control devices and switching elements - Electromechanical control devices / IEC/EN 60947-5-5: Low-voltage switchgear and controlgear - Part 5-5: Control devices and switching elements - Electrical emergency stop device with mechanical latching function. The complete list of all technical specifications and standards met can be found in our product data sheets.
