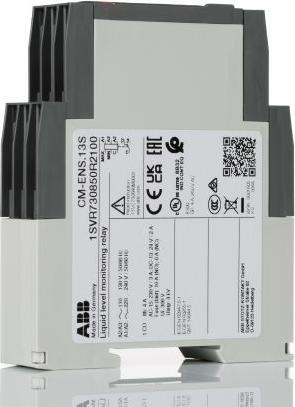

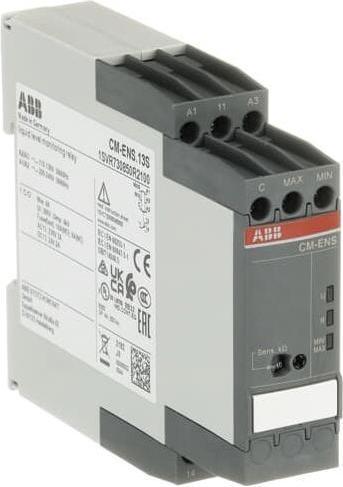

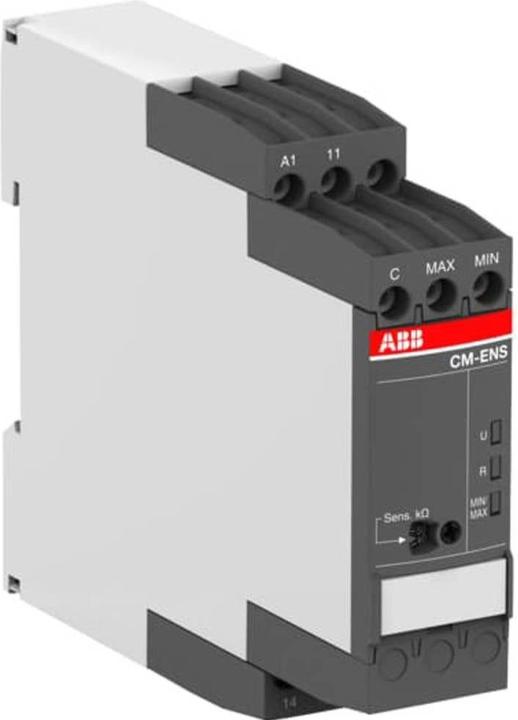

ABB Stotz S&J Level Relay CM-ENS.13S Manufacturer: ABB Stotz S&J Designation: Level Relay 1We 5-100kOhm Type: CM-ENS.13S Electrical connection type: Screw connection With removable terminals: no Voltage type of supply voltage: AC Supply voltage at AC 50 Hz: 110..240 V Supply voltage at AC 60 Hz: 110..240 V Number of electrode inputs: 3 Min. adjustable pick-up delay time: 0 s Max. permissible pick-up delay time: 0 s Min. adjustable drop-out delay time: 0 s Max. permissible drop-out delay time: 0 s Physical measuring principle: conductive Cascadable: yes Adjustable response sensitivity: yes Number of contacts as changeover: 1 Voltage type of operating voltage: AC Operating voltage at AC 50 Hz: 230 V Operating voltage at AC 60 Hz: 230 V Rated switching current: 4 A Width: 22.5 mm Height: 85.6 mm Depth: 103.7 mm

The CM-ENS.13S is a relay from the CM family for level monitoring and level control. The rated control supply voltage is 110-130 V AC or 220-240 V AC. Output: 1 changeover (250 V / 4A). It monitors and controls levels and mixing ratios of conductive liquids. It is used for filling and emptying applications, for dry running protection of pumps, and for signaling the status of the monitored level. Operating current principle. Sensitivity can be adjusted using front-mounted potentiometers. Various electrodes and a sealable clear cover to protect against unauthorized adjustment of settings are available as accessories. The device is available with double-chamber box screw terminals or push-in terminals. EAN: 4013614502903.
