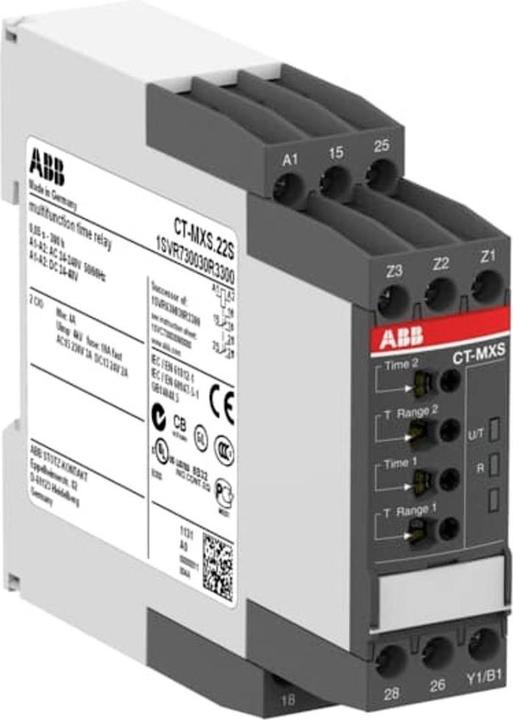

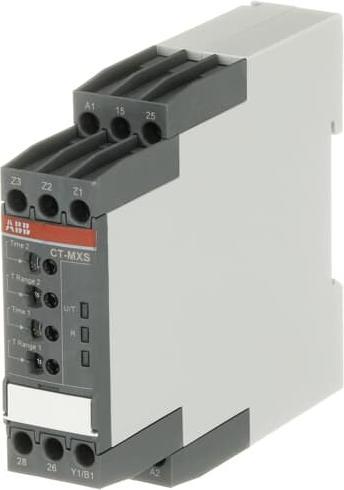

ABB Stotz S&J Multifunction Time Relay CT-MXS.22S

Manufacturer: ABB Stotz S&J
Designation: Multifunction Time Relay 24-48 VDC 24-240 VAC
Type: CT-MXS.22S
Electrical connection type: Screw connection
Complete device with base: no
Suitable for DIN rail mounting: yes
Suitable for front mounting: no
Can be plugged onto contactors: no
Delayed response function: no
Delayed drop-out function: no
Switch-on pulse function: yes
Switch-off pulse function: no
Star/delta function: no
Pulse shaping function: no
Flashing function starting with pause, fixed time: no
Flashing function starting with pulse, fixed time: no
Pulsing function starting with pause, variable: no
Pulsing function starting with pulse, variable: no
Time range: 0.05..1080000 s
Remote control possible: yes
Suitable as remote control: no
Rated control supply voltage Us at AC 50 Hz: 24..240 V
Rated control supply voltage Us at AC 60 Hz: 24..240 V
Rated control supply voltage Us at DC: 24..48 V
Type of voltage for operation: AC/DC
Number of outputs, non-delayed, changeover: 2
Number of outputs, delayed, changeover: 2
Outputs, switchable delayed/non-delayed: no
With semiconductor output: no
Operating voltage at AC 50 Hz: 250 V
Operating voltage at AC 60 Hz: 250 V
Type of operating voltage: AC/DC
Rated current: 4 A
Protection class (IP): IP20
Width: 22.5 mm
Height: 85.6 mm
Depth: 103.7 mm

ABB Stotz S&J Multifunction Time Relay CT-MXS.22S: additional details
The CT-S series is ABB's most economical and versatile time relay series. The program includes 16 multi-function and 26 single-function devices with up to 11 functions, providing the highest flexibility in use. The devices feature 7 or 10 time ranges that can be set from 0.05 seconds to 300 hours. Additionally, selected devices offer an extended temperature range of -40 °C to +60 °C.
EAN: 4016779851428.
