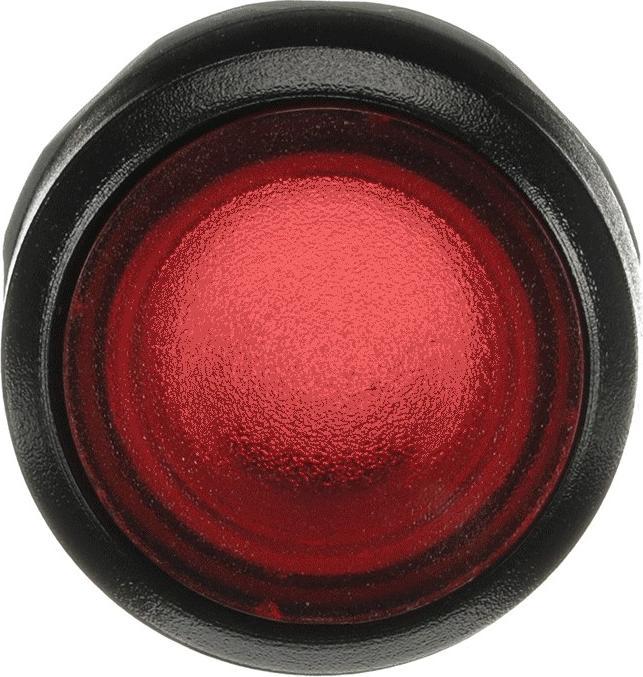

ABB Stotz S&J Push Button MP1-11R

Manufacturer: ABB Stotz S&J
Description: Push button, red, momentary, flat
Type: MP1-11R
Button color: red
Number of command points: 1
Lens shape: round
Hole diameter: 22 mm
Opening width: 28 mm
Opening height: 11.5 mm
Button shape: flat
Suitable for illumination: yes
With protective cover: no
Labeled: no
Latching switch function: no
Momentary: yes
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP), front side: IP66
Protection class (NEMA), front side: 4X

ABB Stotz S&J Push Button MP1-11R: additional details
Control and signaling devices, series: Plastic Modular. A versatile selection of actuators, drives, contact blocks, LED light sources, and accessories with high flexibility. High electrical performance of the switching contacts: AC-15, 6A at 230 V. The flexible solution that simplifies your inventory management. The following standards and approvals are met: IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5. The complete list of all technical data and fulfilled standards can be found in our product datasheets. EAN: 7320500261057.
