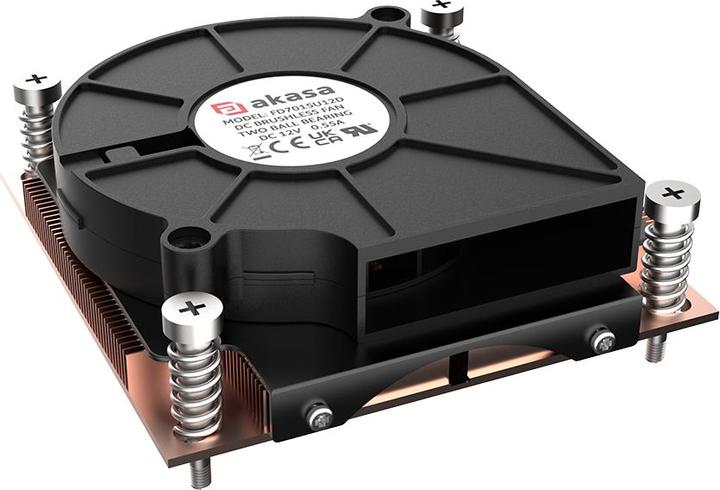

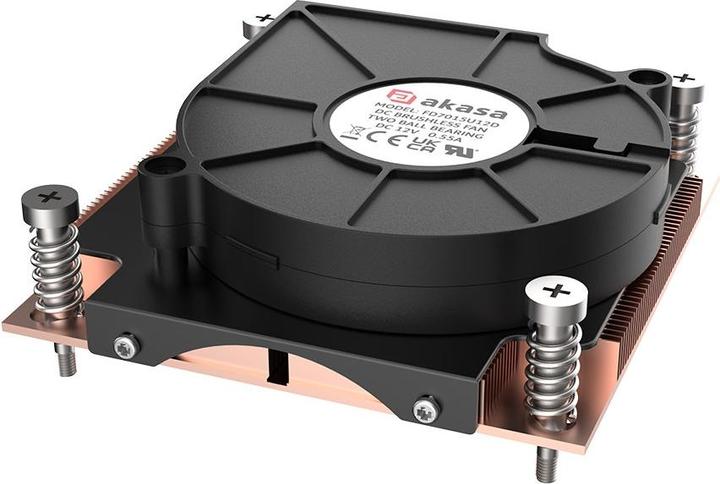

Akasa 1U Intel LGA 1700 CPU cooler - copper
28.30 mmFree shipping starting at 30,–
Intel Low Profile CPU Cooler with Side Blower Fan - 28mm height
Max cooling, minimum height
Ideal for the most confined enclosures and server chassis, boasting an overall CPU cooler height of 28mm. Representing a 9% reduction in height when compared to the AK-CC7401BP01 model.
Side blowing fan
1U low profile height ensures less space is taken up and is perfect for server setups with cramped configurations. The side blowing fan forces hot air produced by the CPU out of the heatsink.
Solid copper heatsink
The copper heatsink provides faster heat transfer from CPU to heatsink due to its heat conductivity properties.
Spring-loaded screws
Spring-loaded screws allow for a consistent and balanced connection, as well as a higher vibration tolerance to make sure the connection remains intact.
Twin ball bearing
Twin ball bearing reduces friction due to a lower surface area, resulting in a longer lifespan.
Socket | LGA 1700 |
Height (with fan) | 28.30 mm |
Diameter | 75 mm |
Number of fans | 1 x |
Max. TDP | 95 W |
Airflow | 18.26 m³/h |
power connector | 4-pin |
Item number | 49694203 |
Manufacturer | Akasa |
Category | CPU coolers |
Manufacturer no. | AK-CC7406BP01 |
Release date | 24.9.2024 |
Colour | Black |
Exact colour description | Black |
CPU cooler design | Top Blower |
Fan type | Standard |
Socket | LGA 1700 |
Cooler mounting | Screw |
Materials radiator core | Copper |
Material cooling fins | Aluminium |
Diameter | 75 mm |
Number of fans | 1 x |
Max. Speed | 5500 RPM |
Max. TDP | 95 W |
Airflow | 18.26 m³/h |
Static pressure | 2.86 Pa |
Max. noise level | 52 dB |
power connector | 4-pin |
Power consumption | 95 W |
Voltage | 12 V |
Scope of delivery | 4-pin cable |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Width (with fan) | 88 mm |
Length (with fan) | 87 mm |
Height (with fan) | 28.30 mm |
Weight | 425.70 g |
