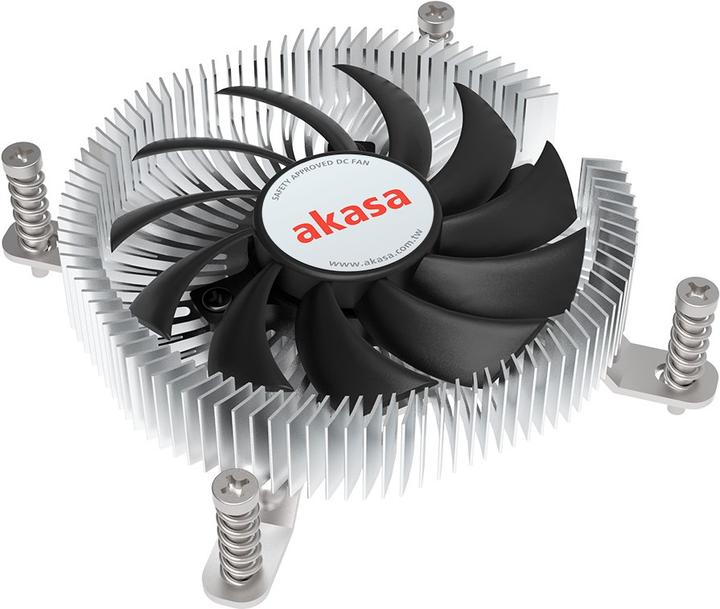

Name: AK-CC6609EP01 Low Profile CPU Cooler - Socket LGA 1700, 21.8 mm Height
Brand: Akasa
SKU: 23320577
Price: 26.9 EUR
Availability: InStock
Rating: 4 (1 reviews)

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Akasa

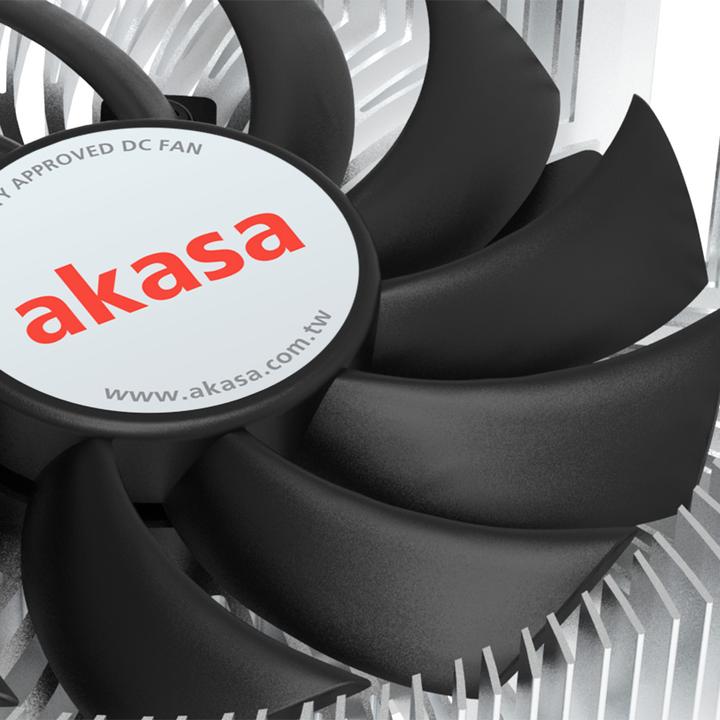

The AK-CC6609EP01 Low Profile CPU Cooler is designed for processors with the LGA 1700 socket. Thanks to its bearing, the fan is durable and quiet. The bearing is resistant to contaminants and high temperatures. Additionally, with PWM control, the fan operates at a pleasant noise level.

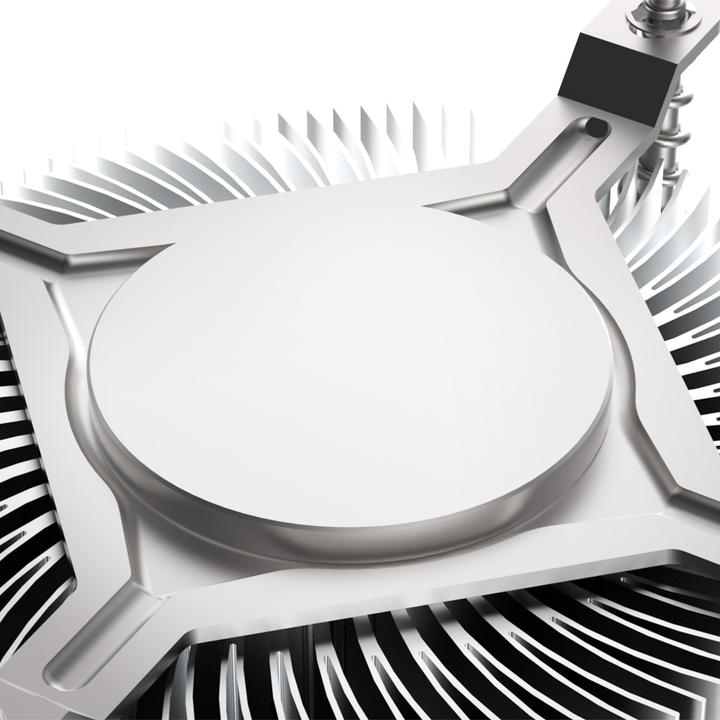

The aluminum core is in direct contact with the heat spreader of your CPU and also connects to the cooling fins, which are arranged in a circular pattern. This design provides a larger surface area and enhances heat dissipation.

Easy Installation

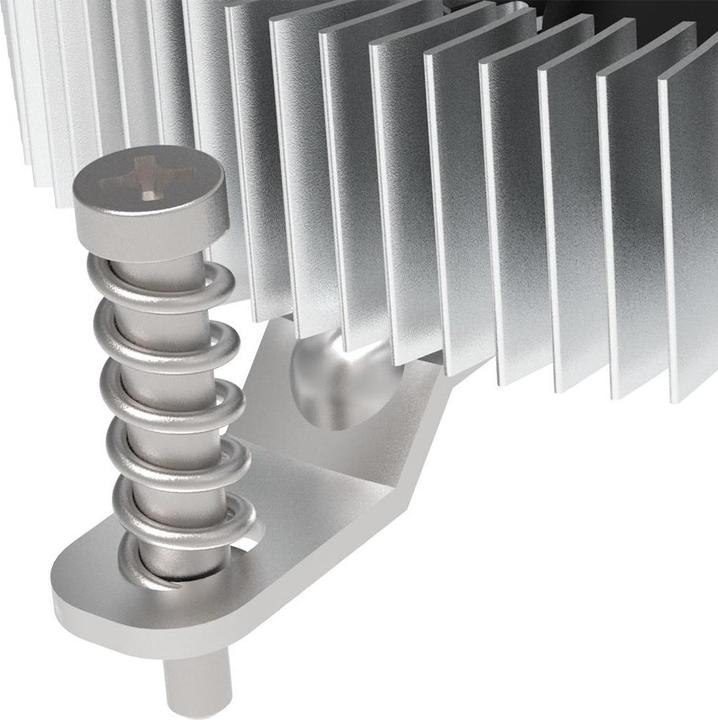

Thanks to the pre-assembled metal screws, installing the cooler is very straightforward. It simply rests over the mounting holes and is then secured with the included metal plate. The top-down design means you don't have to worry about large heatsinks or fans getting in the way.

Technical Details
- Dimensions: 94.8 x 21.8 x 94.8 mm (W x H x D)
- Color: Black, Silver
- Material: Plastic, Aluminum, Copper
- TDP Support: 35 W
- Connectors: 1x 4-Pin PWM
- Noise Level: max. 36 dB(A)
- Fan Speed: min. 600, max. 3,000 RPM
- Airflow: 39.84 m³/h
- Static Pressure: 1.81 mmH2O
- Fan Diameter: 75 mm
- Fan Voltage: 12 V DC
- Fan Current: max. 0.19 A
- Compatibility: Intel LGA 1700 socket
- Lifespan: 40,000 hours
- Package Contents: 1x Akasa AK-CC6609EP01 Low Profile CPU Cooler - LGA 1700 socket, 21.8 mm height, 1x mounting plate.

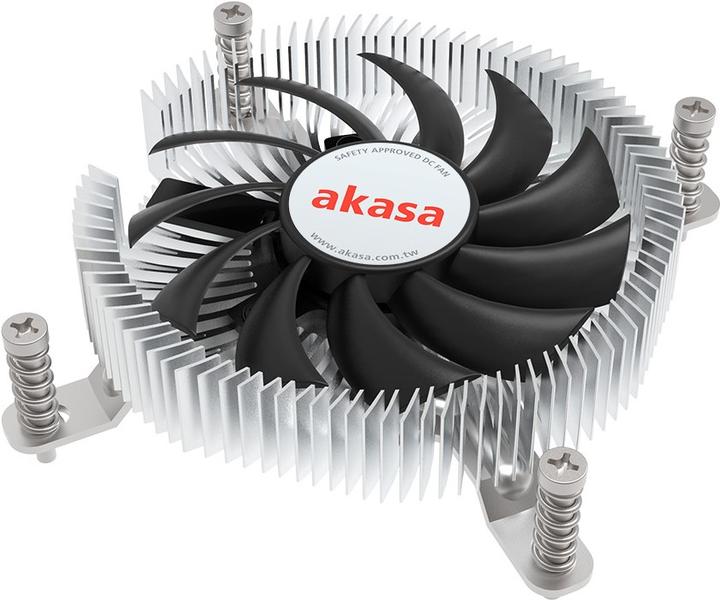

Actual product image Akasa AK-CC6609EP01 Low Profile CPU Cooler - Socket LGA 1700, 21.8 mm Height (21.80 mm)

Key specifications

Socket

A CPU socket or CPU slot is a mechanical component that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the CPU to be replaced without soldering.
Common sockets have retention clips that apply a constant force, which must be overcome when a device is inserted. For chips with a large number of pins, either zero-insertion force (ZIF) sockets or land grid array (LGA) sockets are used instead. These designs apply a compression force once either a handle (for ZIF type) or a surface plate (LGA type) is put into place. This provides superior mechanical retention while avoiding the risk of bending pins when inserting the chip into the socket.
