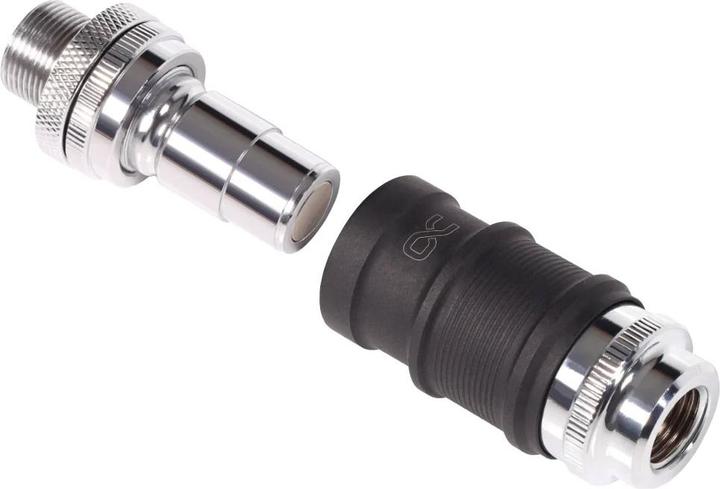

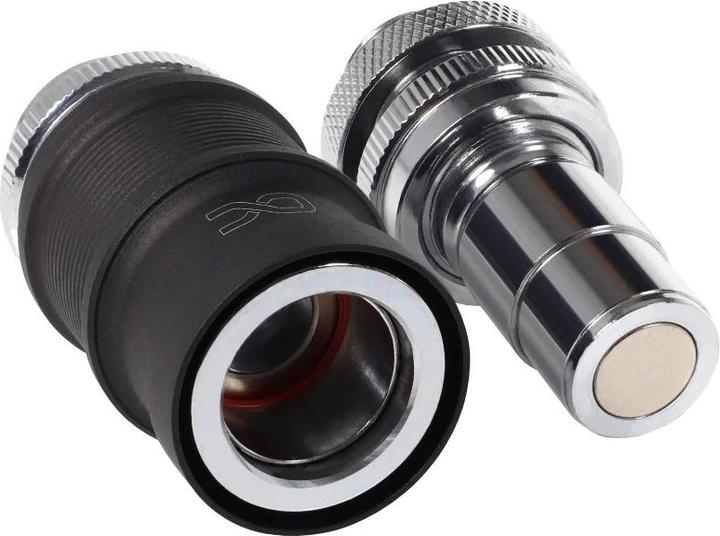

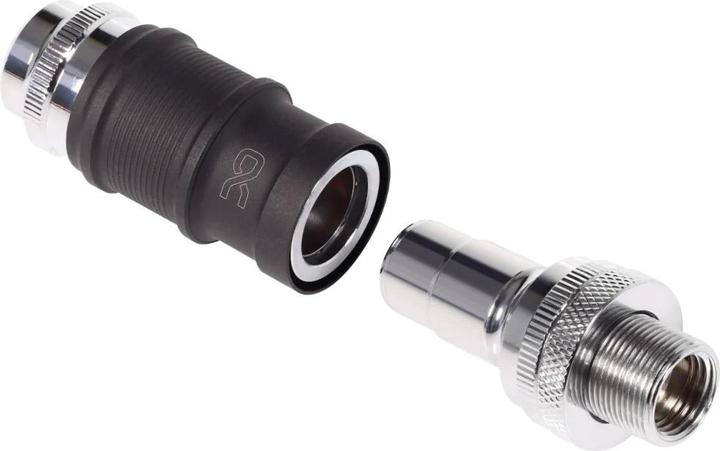

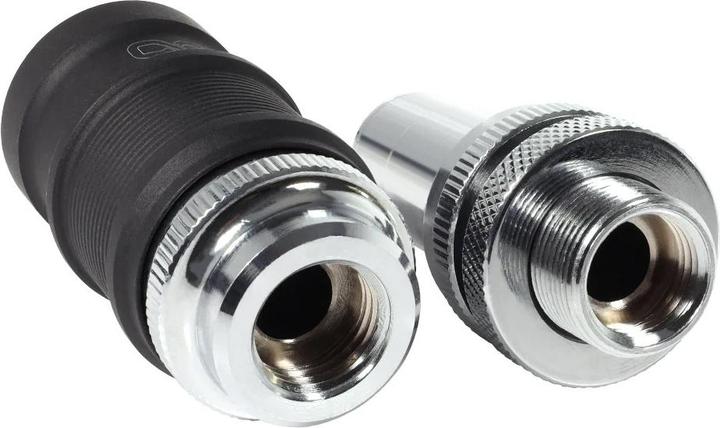

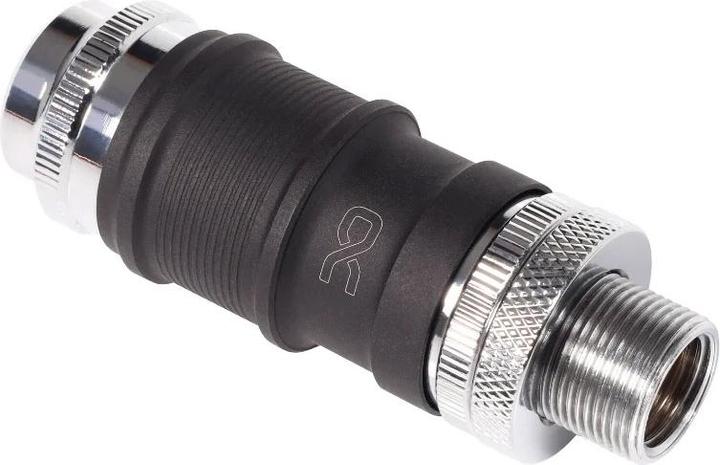

The Alphacool ES quick release is optimized for use in server and workstation systems. It features precise manufacturing quality, excellent water flow, and a secure click mechanism for closing.

Maximum flow: Other quick releases can negatively impact water flow. Therefore, the quick coupling has been fundamentally redesigned to ensure that water flow is hardly disturbed. Special emphasis was placed on minimal processing tolerances.

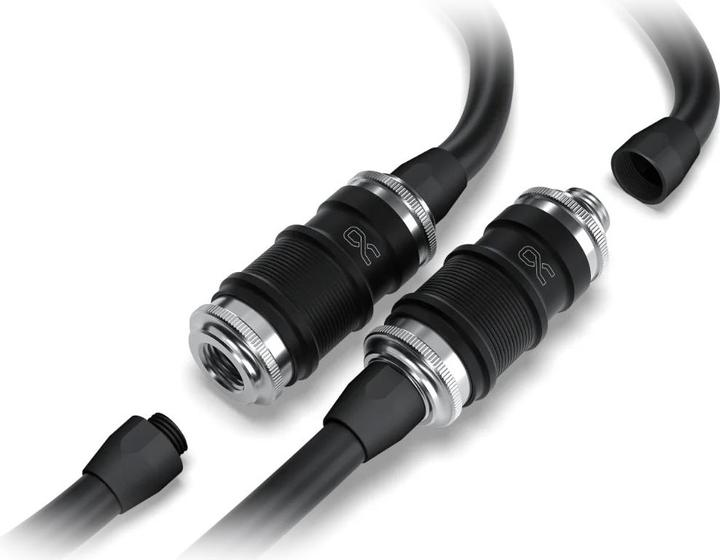

Quick and easy: The ES quick releases from Alphacool simplify the setup of server and workstation systems. Thanks to the user-friendly operation, complex systems can be connected quickly and effortlessly. To open the quick release, the outer ring is pulled back. The seal closes immediately, preventing coolant from leaking. To lock the quick releases, simply push them together. A clicking sound confirms the secure closure.

Function of the bulkhead fitting: The bulkhead fitting allows a hose to be routed through, for example, a hole in the case. It is securely attached to the case using a counter nut. Standard hose connections with 1/4" can then be screwed on.

Note: To avoid damaging the O-ring, the quick release should not be opened or closed when dry.

Technical specifications:
Dimensions (L x D): 77 x 28 mm
Weight: 170 g
Material: nickel-plated brass, plastic
Connection: 2x 1/4" female
Color: chrome, black.
