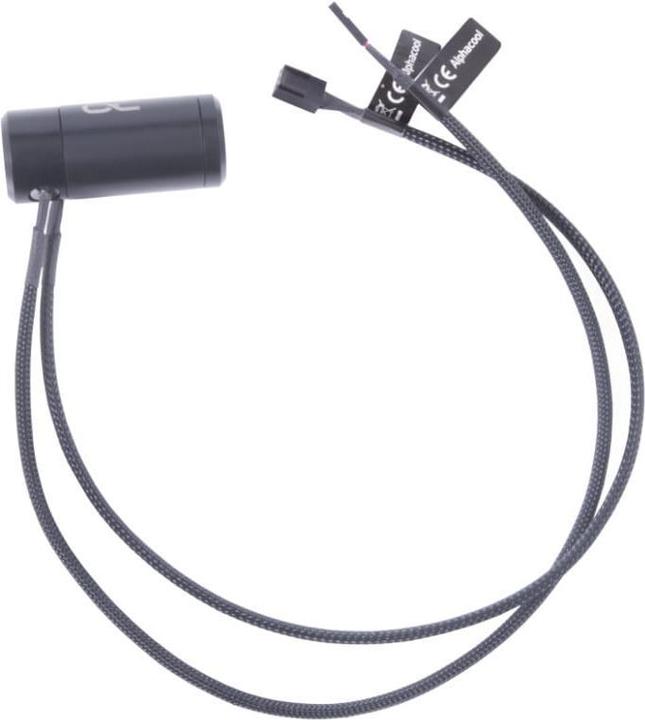

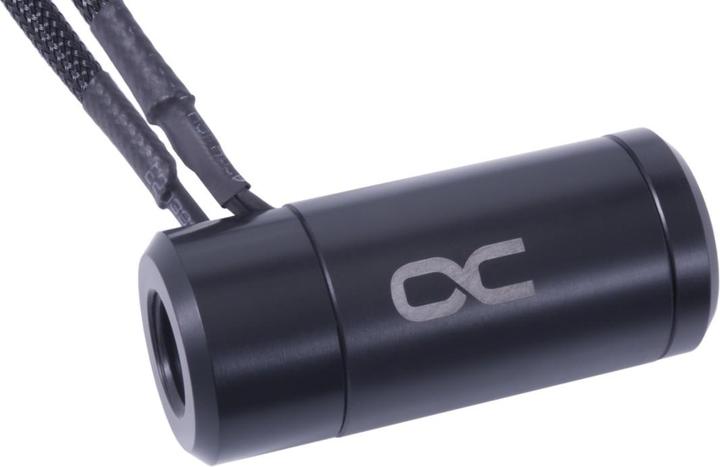

The Alphacool ES "HighFlow" with tachometer signal is a sensor for water temperature and water flow that can be easily integrated into any water circuit.

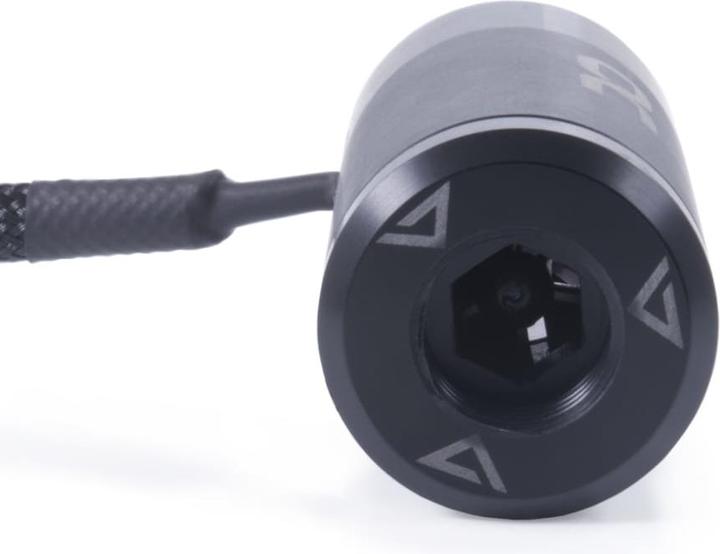

Easy integration: The Alphacool ES "HighFlow" flow and temperature sensor is very compact and can be integrated into any water circuit through its two G1/4" internal threads. It doesn't matter whether the system is equipped with hoses or hard tubes. The corresponding connections are simply screwed onto the sensor and then mounted at any position in the water circuit.

Temperature sensor: A classic NTC 10 kOhm thermistor is used as the sensor. The readable temperature range is between -40 and 125 °C. The cable is 43.5 cm long and ends in a typical 2-pin connector. Many motherboards now offer direct connection options for such sensors. Please check your motherboard's manual for details. There are also various external controllers that provide a connection for the sensor (controllers with NTC connection). A corresponding reading device is not included in the delivery.

Flow sensor: The flow sensor allows for continuous measurement of water flow within a water circuit. Connection and evaluation are done with the included 42 cm long Hall sensor cable at the appropriate connection on the motherboard.

Technical specifications:

• Dimensions (L x W x H): 58 x 25 x 25 mm
• Material: Acetal
• Weight: 45 g
• Pressure tested: 2 Bar
• Maximum operating temperature: 60 °C
• Connections: 2x G1/4" internal threads (for max. 5 mm thread length)
• Cable length Hall sensor: 420 mm
• Cable length temperature sensor: 430 mm
• Color: black.
