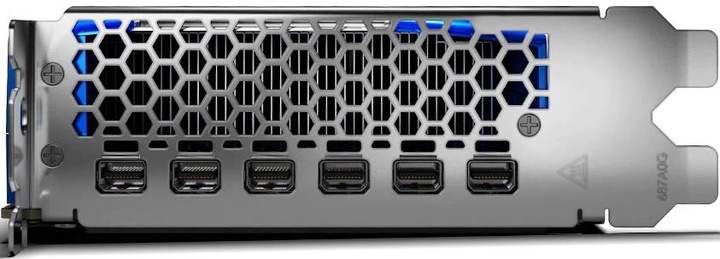

Discover how the AMD Radeon Pro W6800 performs in common demanding applications. Six displays as standard. That's a lot: Optimized for six modern HDR, Ultra HD, and Ultrawide displays. With mini DisplayPort connections, more monitors can be connected in a carefully compact form. User efficiency at the next level.
AMD GPUs are designed for round-the-clock use in modern professional environments. This also applies to the physical construction of the GPU, which carefully directs the expected heat away from full load and not into the powerhouse that your computer represents. This keeps everything cool and quiet, allowing you to work calmly and relaxed during intense periods.
Max. connected monitors | 6x |
Max. video resolution | 7680 x 4320 pixels |

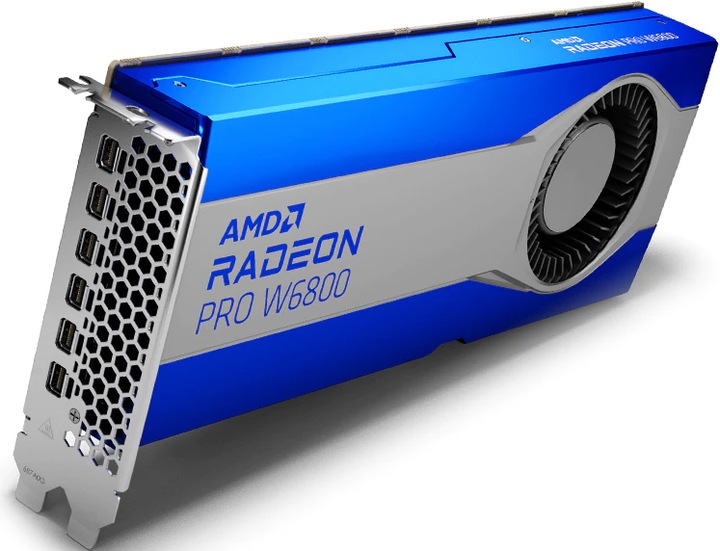

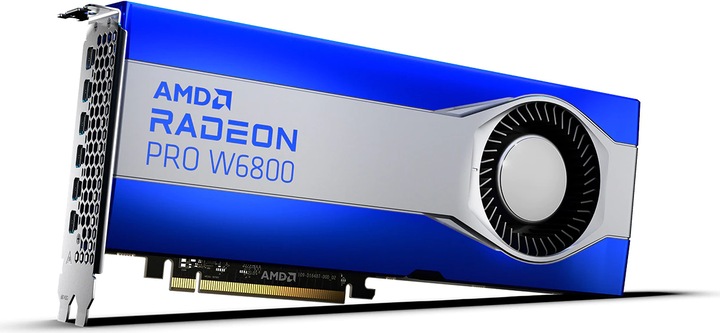

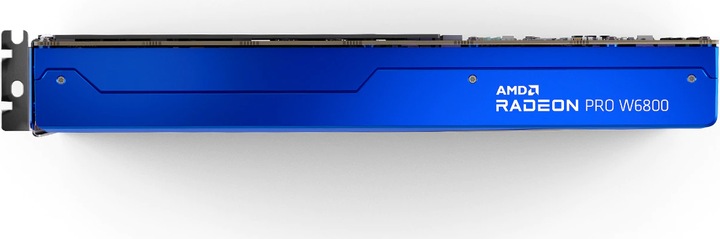

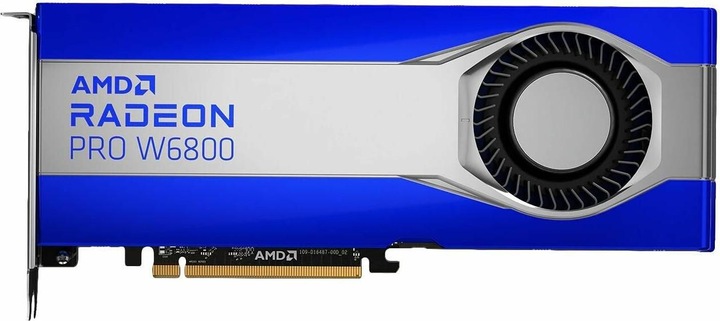

Graphics card model | Radeon Pro W6800 |
Number of shaders | 3840x |
Video memory clock | 16 GHz |
Power consumption | 250 W |
Length | 26.70 cm |
Item number | 16588245 |
Manufacturer | AMD |
Category | Graphics card |
Manufacturer no. | 100-506157 |
Release date | 8.9.2021 |
Max. connected monitors | 6x |
PCI Express version | PCIe 4.0 |
Max. video resolution | 7680 x 4320 pixels |
Expansion card form factor | 2 slots |
LED colour | without LED |
Graphics chip (GPU) | AMD FirePro |
Graphics card model | Radeon Pro W6800 |
Clock frequency | 1575 MHz |
Boost frequency | 2322 MHz |
Number of shaders | 3840x |
Video memory type | GDDR6 |
Storage capacity | 32 GB |
Video memory clock | 16 GHz |
Memory Interface | 256 bits |
Memory Bandwidth | 512 GB/s |
Graphics card cooling system | Active cooler |
Number of fans | 1x |
DirectX version | 12 |
OpenGL version | 4.6 |
Video connections | Mini DisplayPort (6x) |
DisplayPort version | 1.4a |
Power consumption | 250 W |
Min. recommended system performance | 650 W |
Power connectors | 6-pin PCI-E, 8-pin PCI-E |
Manufacturer commitment | SBTi |
Length | 26.70 cm |
Width | 26.70 cm |
Height | 26.70 cm |
Product Safety |
Length | 35 cm |
Width | 19 cm |
Height | 7 cm |
Weight | 100 g |
