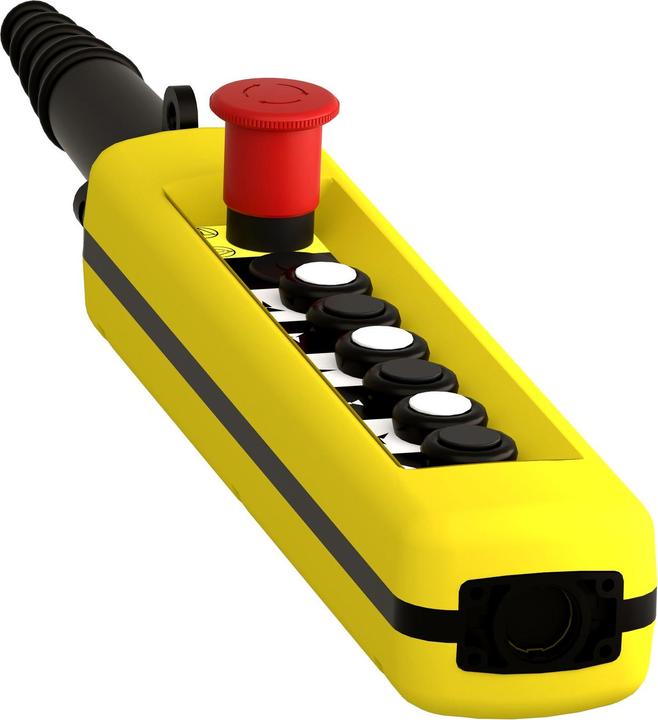

Schneider Electric Pendant Control Station XACA882H44

Manufacturer: Schneider Electric
Designation: Pendant Control Station
Type: XACA882H44
Number of Control Points: 6
Rated Operating Current Ie at AC-15, 600 V: 1.2 A
Number of Speeds: 1
Suitable for Emergency Stop: Yes
Type of Movements Executable: Lifting and Conveying
Material of Housing: Plastic
Material Quality of Housing: Other
Color of Housing Top: Yellow
Protection Class (IP): IP65
Protection Class (NEMA): 13
Width: 80 mm
Height: 560 mm
Depth: 107 mm

Additional Details: Pendant control station with 8 push buttons and an emergency stop button for control circuits. This yellow control station is double insulated, and the housing material is polypropylene. It belongs to the Harmony XAC series of pendant control stations for 22 mm plastic signal units with a diameter.
