Switching sequence: Latching
Contact arrangement: Single-pole On/Off switch (SPST)

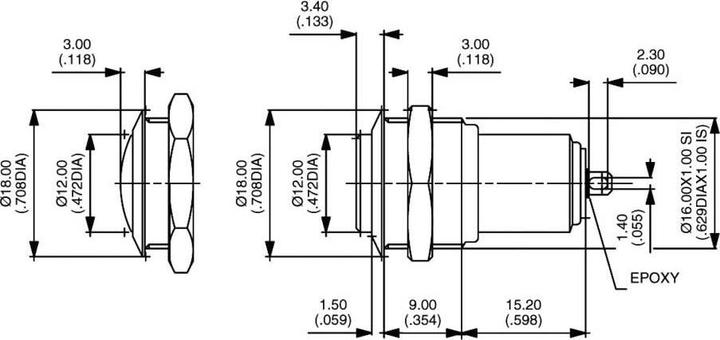

Panel cutout diameter: 16.2 mm
Rated contact current: 1 A @ 24 V dc
Actuator color: Silver
Maximum operating temperature: +70 °C

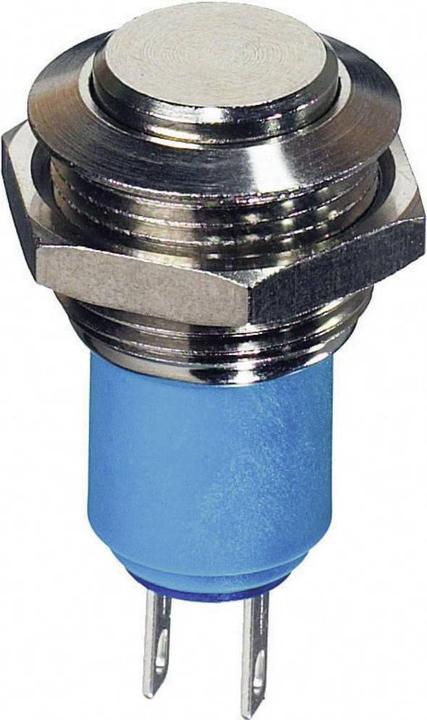

Vandal-resistant pushbutton switches from the AV series. This vandal-resistant switch from Apem's AV series is robust and durable, featuring shock resistance and a clamp-free design. With gold-plated silver contacts and a choice of stainless steel or nickel-plated brass sockets, this switch offers a high level of protection and a long mechanical lifespan.

Features and benefits:

• Electrical lifespan of 40,000 cycles
• Electrical lifespan of 200,000 cycles
• Flat 16 mm actuator element
• Electrical On/Off function
• Contact status indication signal

Available in this series:

• Order No. 225-583: Pushbutton switch with one socket and an actuator element made of stainless steel.

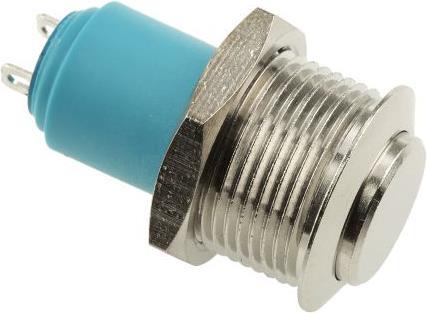

• Order No. 498-0837: Pushbutton switch with one socket and an actuator element made of nickel-plated brass.
