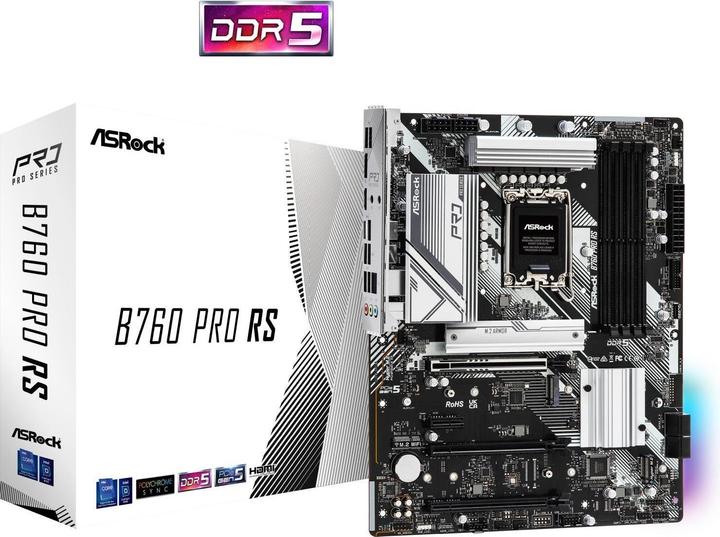

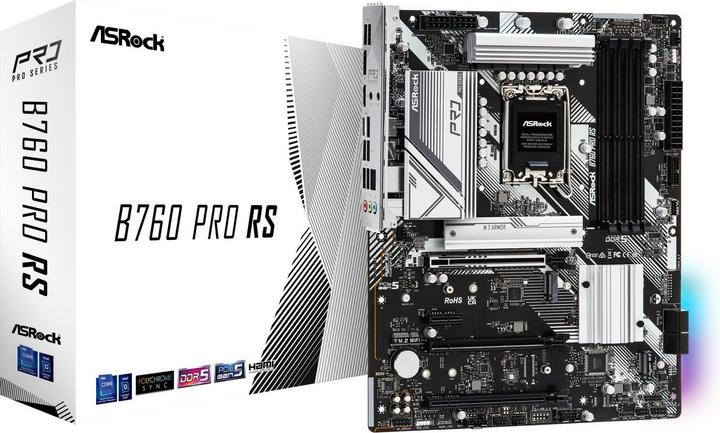

AsRock B760 Pro RS
LGA 1700, Intel B760, ATXPrice in EUR including VAT
free shipping

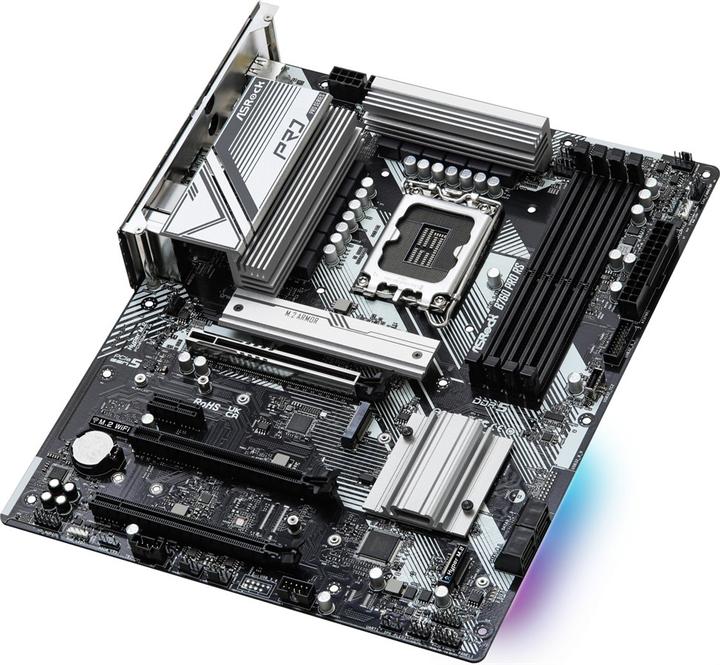

The ASRock B760 Pro RS motherboard is based on the Intel B760 chipset and supports Intel processors for the LGA 1700 socket from the 13th and 12th generations. It features four DDR5 DIMM slots operating in dual-channel mode for up to 128 GB of memory.
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Mainboard features | Front panel audio connector, RGB header |
Item number | 23804441 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBKS0-A0UAYZ |
Release date | 2.1.2023 |
Sales rank in Category Motherboards | 106 of 919 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector, RGB header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 7200 MHz |
Supported memory speed | 4000 MHz, 4400 MHz, 4800 MHz, 5600 MHz, 6000 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

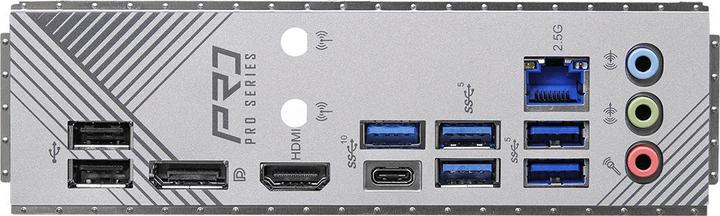

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125-BG |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Expansion slot | PCI Express x1 (Gen 3) (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 4 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.1 Gen 2 (1x), USB-A 3.2 Gen 1 (6x), USB-C 3.2 Gen 2 (2x) |
Power connectors | 20+8 pin ATX, 24-pin ATX |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

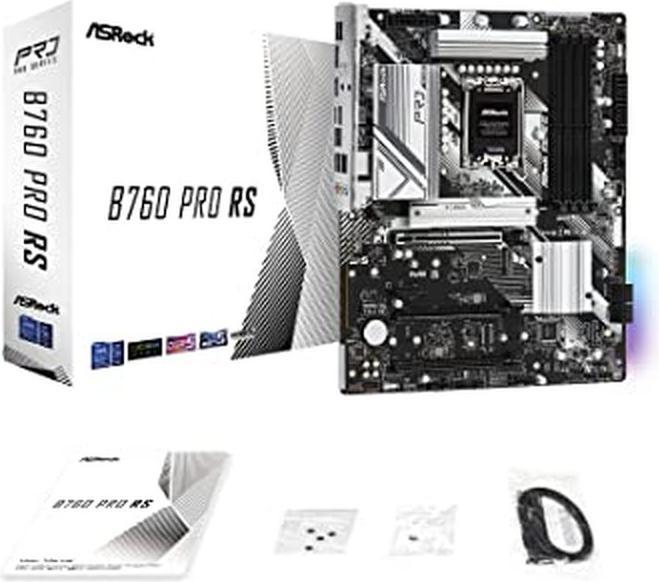

Scope of delivery | 2 x Serial ATA cable |
Length | 244 mm |
Width | 305 mm |
Height | 244 mm |
Weight | 1500 g |
Length | 35 cm |
Width | 30 cm |
Height | 7 cm |
Weight | 1.56 kg |
