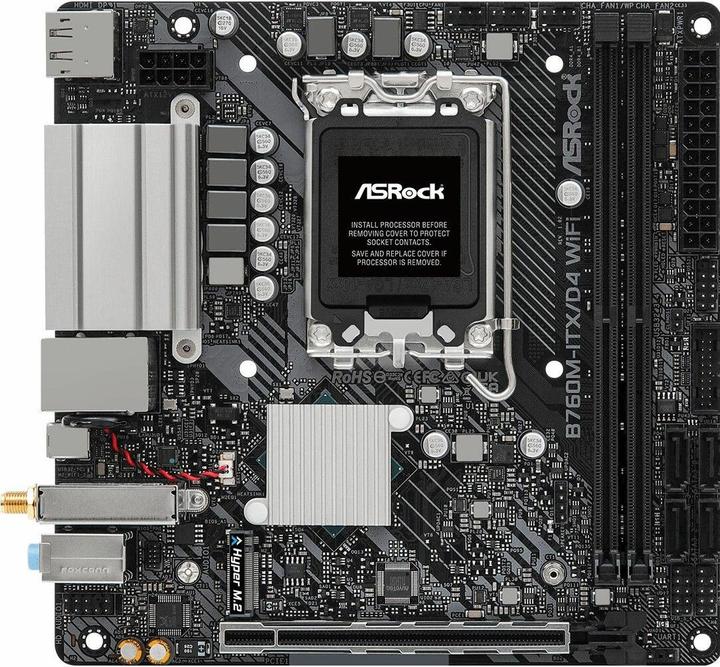

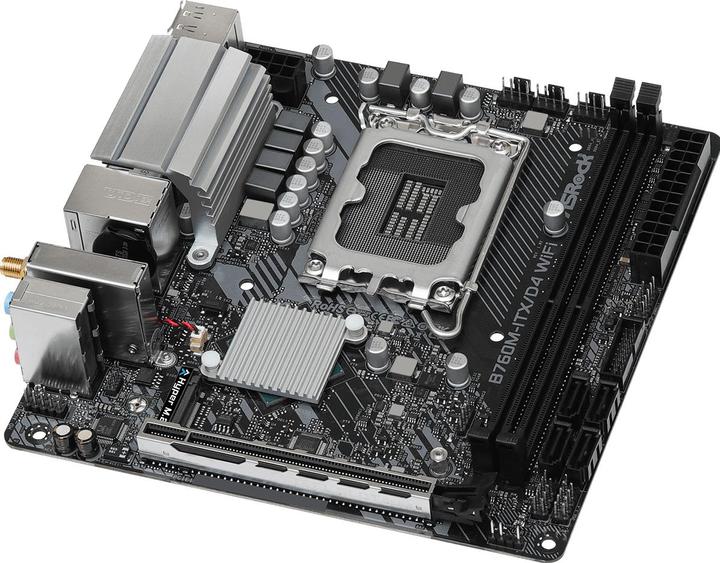

AsRock B760M-ITX/D4 Intel DDR4 S1700
LGA 1700, Intel B760, Mini-ITXPrice in EUR including VAT
free shipping
The ASRock B760M-ITX/D4 WiFi is a powerful Mini-ITX motherboard equipped with the Intel B760M chipset, designed for use with Intel processors from the 12th, 13th, and 14th generations. It supports the LGA 1700 socket and allows the use of DDR4 RAM with speeds of up to 5,333 MHz. The motherboard offers a variety of connectivity options, including PCI-Express 4.0 for graphics cards and M.2 slots for fast SSDs. With integrated Wi-Fi technology compliant with the Wi-Fi 6E standard and Gigabit Ethernet, it is ideal for modern networking requirements. Its compact design makes it an excellent choice for space-saving PC builds, while support for RAID configurations provides additional flexibility for data storage.
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i9 12th Gen, Core i9 13th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | 24-pin ATX power connector (1x), 8-pin ATX 12V (1x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector, RGB header |
Item number | 23861307 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBKY0-A0CAYZ |
Release date | 11.1.2023 |
Sales rank in Category Motherboards | 270 of 945 |
Form factor | Mini-ITX |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector, RGB header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i9 12th Gen, Core i9 13th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 5333 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

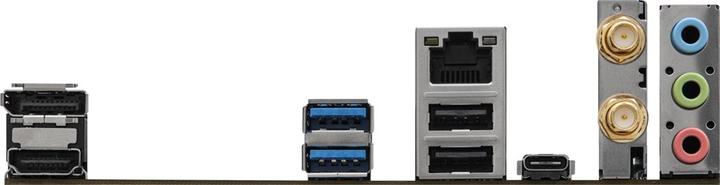

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | 24-pin ATX power connector (1x), 8-pin ATX 12V (1x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 3 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 2 (1x) |
Power connectors | 20+8 pin ATX, 24-pin ATX |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 170 mm |
Width | 170 mm |
Length | 28.10 cm |
Width | 22.30 cm |
Height | 6.50 cm |
Weight | 751 g |
