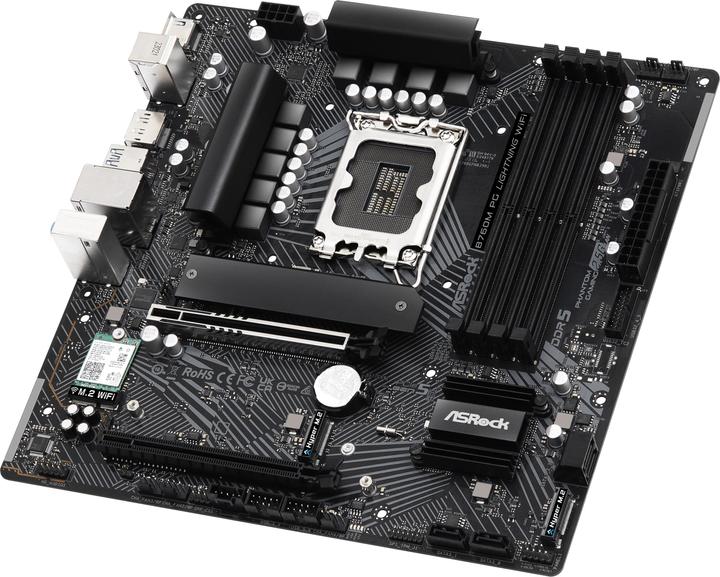

AsRock B760M

LGA 1700, Intel B760, mATX
Currently out of stock
Free shipping starting at 30,–

Product details

Dr. MOS is the integrated power stage solution optimized for synchronous buck voltage applications. Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, resulting in better thermal performance and superior efficiency. The first thing that stands out is the optimized aluminum heatsink design. Heatsinks are crucial for efficient heat dissipation, especially under heavy workloads such as gaming or productivity tasks. Motherboards equipped with heatsinks can effectively manage thermal performance, ensuring system stability and longevity with ease.

Key specifications

Processor family
CeleronCore i3Core i5Core i7Core i9
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 (3x)S-ATA III (4x)
Wireless transmission
BluetoothWi-Fi
Mainboard features
Front panel audio connector
Item number
37619827

General information

Manufacturer
AsRock
Category
Motherboards
Manufacturer no.
90-MXBMT0-A0UAYZ
Release date
17.8.2023
External links

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1700
Chipset
Intel B760
Mainboard features
Front panel audio connector
Operating system compatibility
WindowsWindows 10
BIOS type
UEFI AMI
Wireless transmission
BluetoothWi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
CeleronCore i3Core i5Core i7Core i9

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
192 GB
Memory chip
DDR5-7200
Max. RAM OC
7200 MHz
Supported memory speed
4400 MHz4800 MHz5200 MHz5600 MHz6000 MHz6200 MHz6400 MHz6600 MHz7000 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

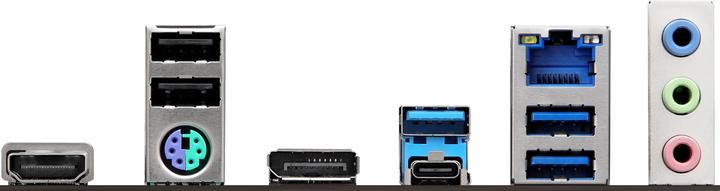

Video connections
DisplayPort (1x)HDMI (1x)
Video connection version
Display port 1.4HDMI 2.1
Multi-GPU technology
AMD CrossFire

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Dragon RTL8125BGRealtek RTL8125-BG
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Headphone output (3x)

Data storage

RAID configuration
01105

Internal interfaces

Internal connection options
M.2 (3x)S-ATA III (4x)
Expansion slot
Mini PCI Express (1x)PCI Express x16 (Gen 3) (1x)PCI Express x16 (Gen 5) (1x)
PCI express version (max.)
4
Number of fan connector
6

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x)USB-A 3.2 Gen 1 (3x)

Power supply

Power connectors
8-pin PCI-E

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
244 mm
Width
244 mm
Height
244 mm
Weight
1000 g

Package dimensions

Length
28 cm
Width
26 cm
Height
6 cm
Weight
1.06 kg
