AsRock X570S Phantom Gaming Riptide
AM4, AMD X570, ATXProduct details

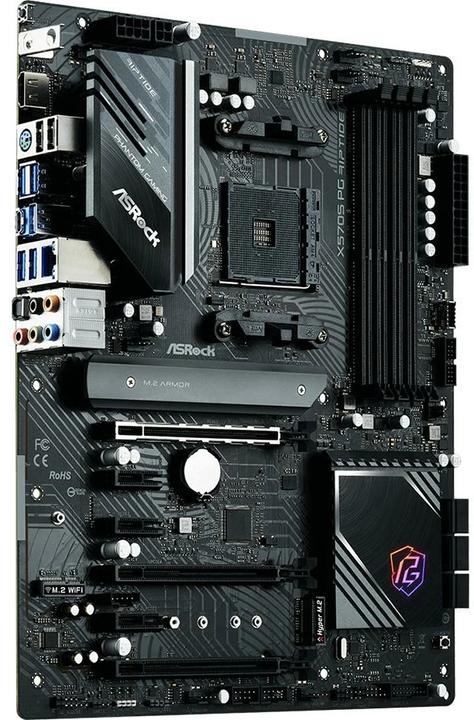

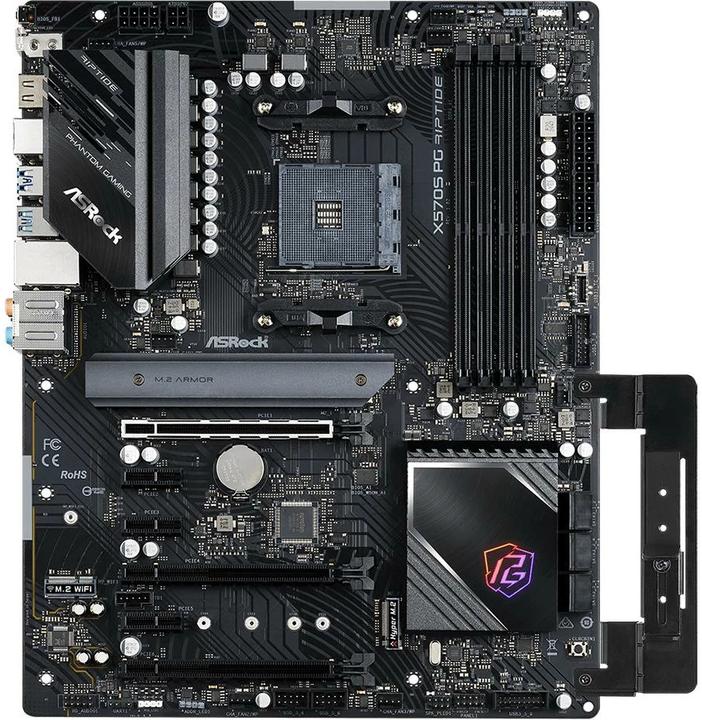

The ASRock X570S Phantom Gaming Riptide is a powerful ATX motherboard designed for use with AMD Ryzen processors. It supports the AMD AM4 socket and is equipped with the advanced AMD X570 chipset, which offers high performance and efficiency. With a maximum RAM capacity of 128 GB and support for DDR4 memory speeds of up to 5000 MHz, this motherboard is ideal for demanding applications and gaming. The integrated Radeon Vega graphics provide enhanced visual performance, while the variety of connectivity options, including HDMI, USB 3.2, and USB-C, ensures flexible connectivity. The RGB lighting also adds an appealing aesthetic to the case. The motherboard also supports RAID levels 0, 1, and 10, which enhances data security and speed.
- Supports AMD Ryzen 2000, 3000, 4000 G-Series, and 5000 Series processors
- Maximum RAM capacity of 128 GB with 4 DIMM slots
- Integrated support for M.2 PCIe interfaces
- Killer E3100G Ethernet controller for optimized network speed
- 7.1-channel HD audio for an enhanced sound experience.
Processor family | Ryzen 2nd Gen, Ryzen 3rd generation, Ryzen 4th Gen, Ryzen 5th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | 4-pin CPU (1x), 4-pin PWM (4x), M.2 PCIe (2x), S-ATA III (6x), USB 2.0 Header (2x), USB 3.0 header (2x) |
Mainboard features | Clear CMOS Button, Front panel audio connector, Thunderbolt header |
Documents | |
Item number | 16327431 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBHX0-A0UAYZ |
Release date | 29.1.2024 |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD X570 |
Mainboard features | Clear CMOS Button, Front panel audio connector, Thunderbolt header |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | Ryzen 2nd Gen, Ryzen 3rd generation, Ryzen 4th Gen, Ryzen 5th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-4866 |
Max. RAM OC | 3600 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz, 4000 MHz, 4800 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

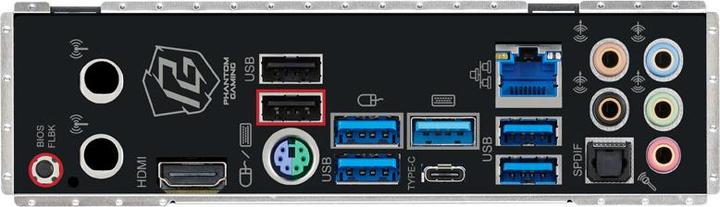

Video connections | HDMI (1x) |
Video connection version | HDMI 2.1 |
Multi-GPU technology | AMD CrossfireX, AMD Quad-GPU CrossFireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Killer NIC |
Ethernet controller | Killer E3100G |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Digital Audio Out (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | 4-pin CPU (1x), 4-pin PWM (4x), M.2 PCIe (2x), S-ATA III (6x), USB 2.0 Header (2x), USB 3.0 header (2x) |
Expansion slot | PCI Express x1 (3x), PCI Express x16 (3x) |
PCI express version (max.) | 4 |
Number of fan connector | 5 |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 305 mm |
Width | 244 mm |
Height | 160 mm |
Weight | 1900 g |
Length | 38.80 cm |
Width | 33.70 cm |
Height | 8.80 cm |
Weight | 1.91 kg |
Product Safety |
