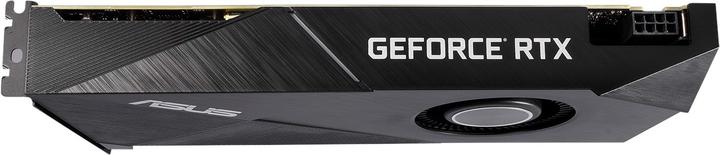

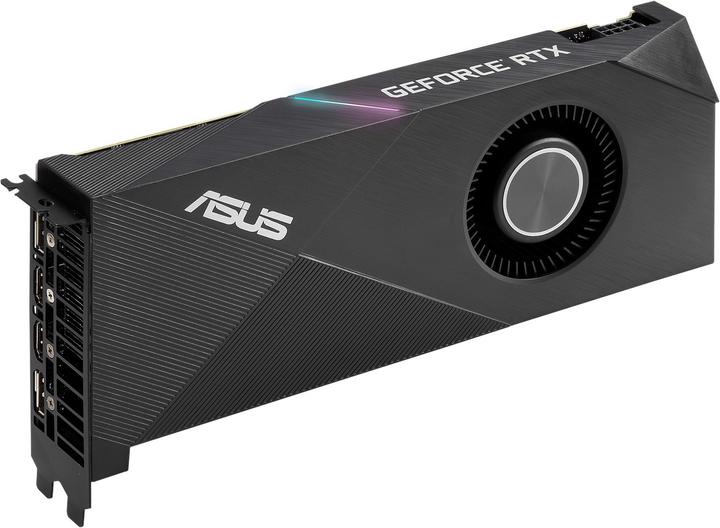

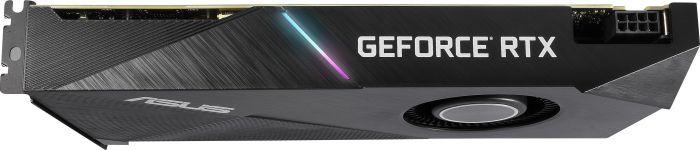

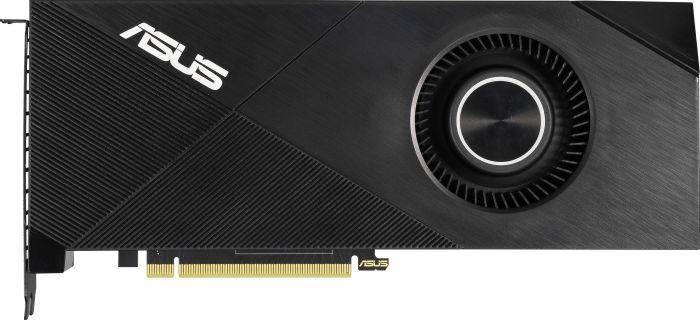

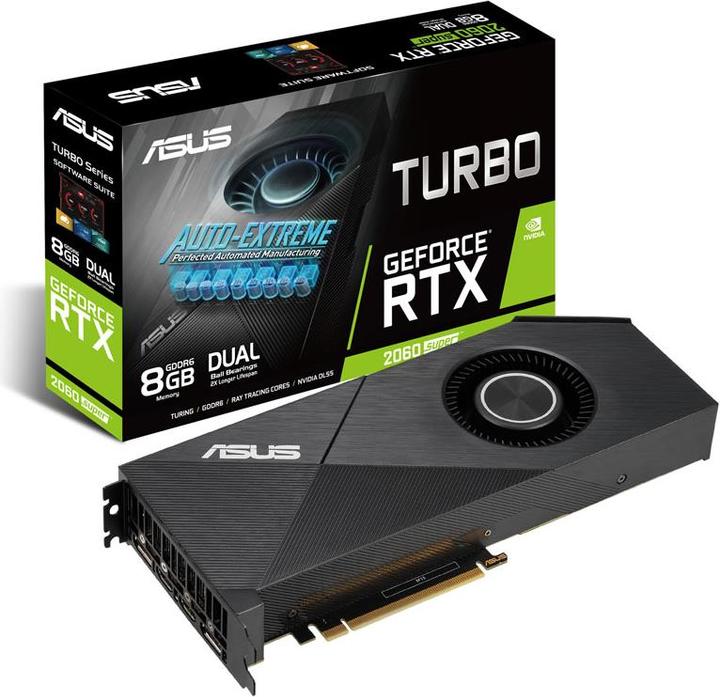

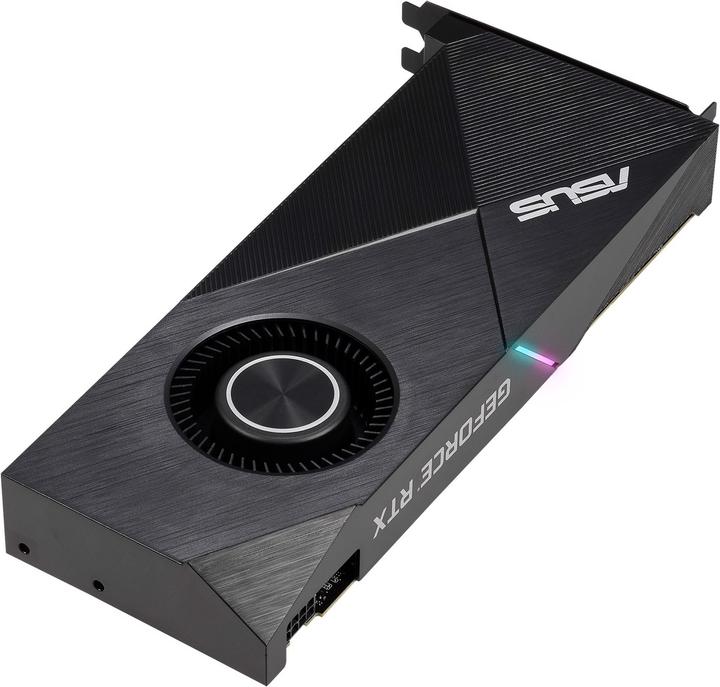

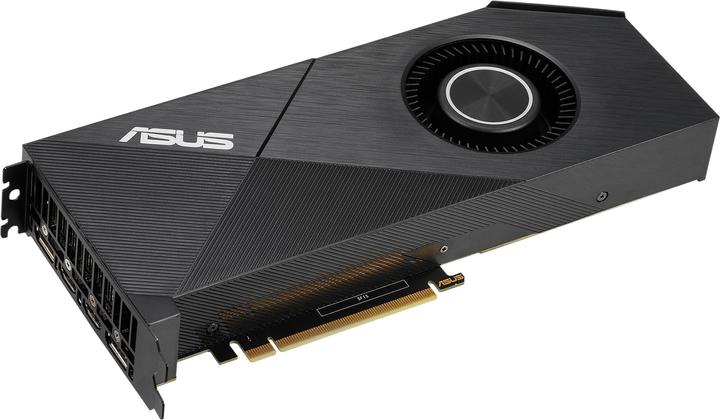

ASUS GeForce TURBO RTX 2060S 8G EVO
8 GBProduct details
Equipped with a TU106 graphics chip, the graphics card enables real-time ray tracing for stunning light and shadow effects. The Turing GPU architecture, combined with a 12nm manufacturing process, also allows for particularly efficient operation of the graphics card. This super model of the GeForce RTX 2060 series now features 8 GB of video memory with GDDR6 specification. Additionally, both the base and boost clock speeds have been increased, and the shader units (CUDA cores) have been raised from 1,920 to 2,176.
Length | 26.80 cm |
Number of shaders | 2176 x |
Graphics card model | GeForce RTX 2060 |
Video memory clock | 1.75 GHz |
Max. connected monitors | 4 x |
Max. Video resolution | 7680 x 4320 pixels |
Power consumption | 175 W |
Item number | 12005339 |
Manufacturer | ASUS |
Category | Graphics card |
Manufacturer no. | 90YV0DF1-M0NA00 |
Release date | 26.9.2019 |
Max. connected monitors | 4 x |
PCI Express version | PCIe 3.0 |
Max. Video resolution | 7680 x 4320 pixels |
Expansion card form factor | 2 slots |
LED colour | RGB |
Graphics chip (GPU) | nVidia GeForce |
Graphics card model | GeForce RTX 2060 |
Clock frequency | 1500 MHz |
Boost frequency | 1680 MHz |
Number of shaders | 2176 x |
Video memory type | GDDR6 |
Storage capacity | 8 GB |
Video memory clock | 1.75 GHz |
Memory Interface | 256 bits |
Graphics card cooling system | Active cooler |
Number of fans | 1 x |
OpenGL version | 4.50 |

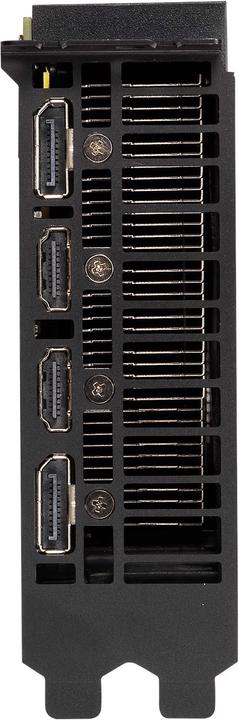

Video connections | DisplayPort (2x), HDMI (2x) |
DisplayPort version | 1.4 |
Power consumption | 175 W |
Min. recommended system performance | 550 W |
Power connectors | 8-pin PCI-E |
CO₂-Emission | |
Climate contribution |
Length | 26.80 cm |
Width | 26.80 cm |
Height | 4 cm |
Length | 37.10 cm |
Width | 22.50 cm |
Height | 7.20 cm |
Weight | 1.24 kg |
