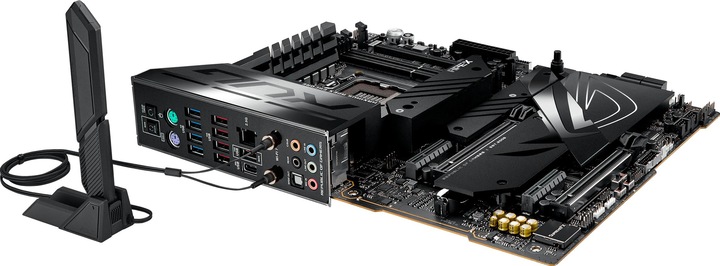

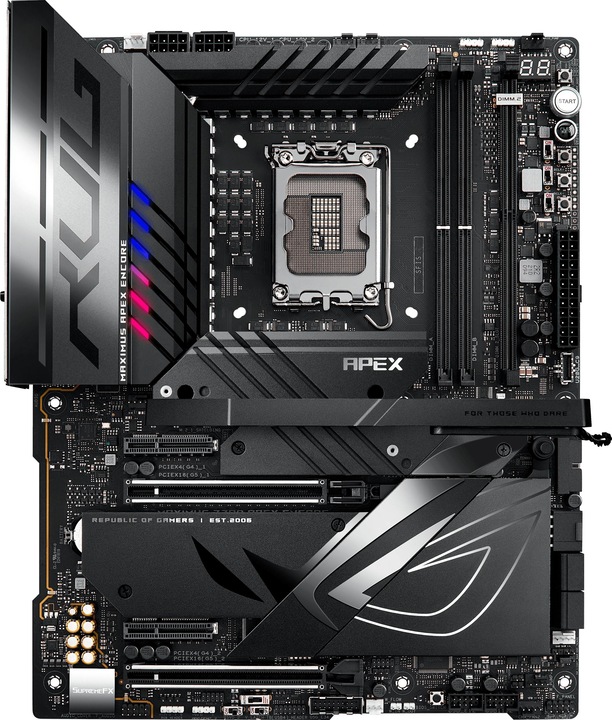

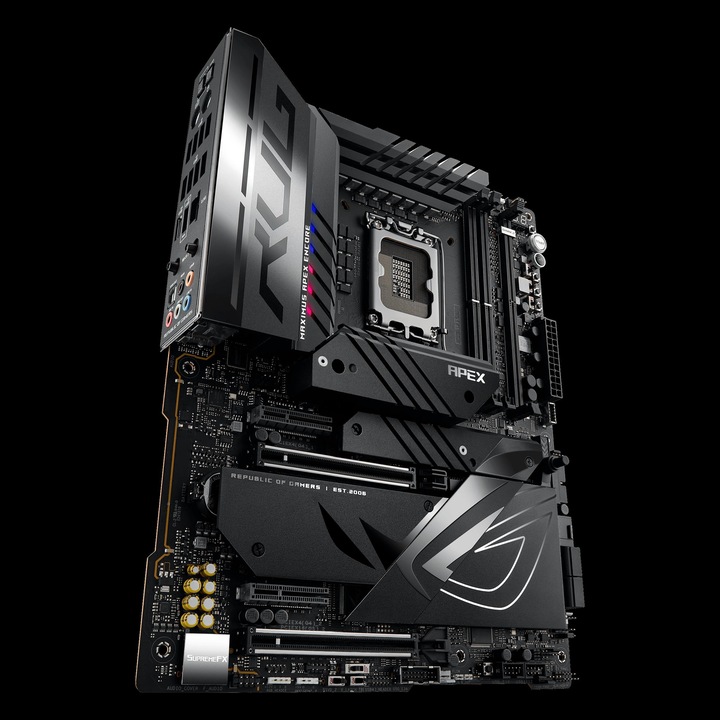

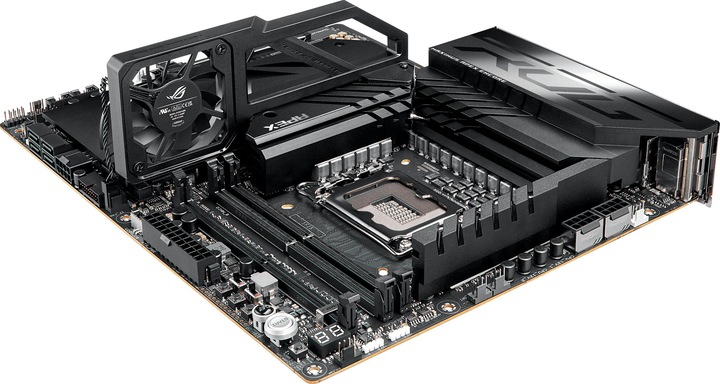

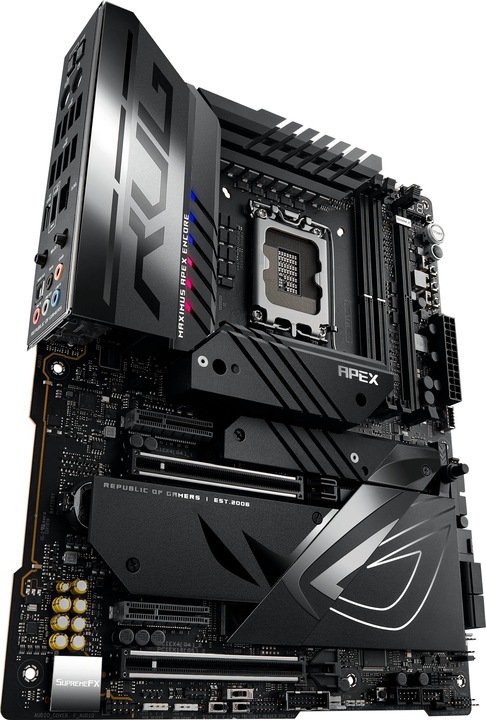

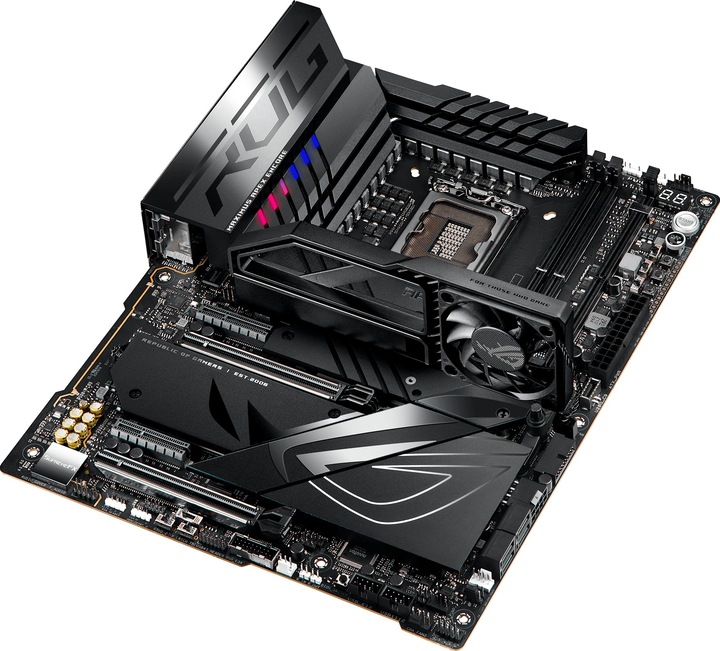

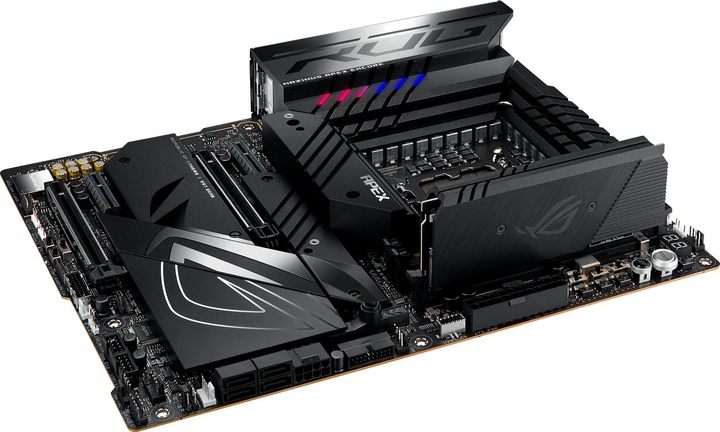

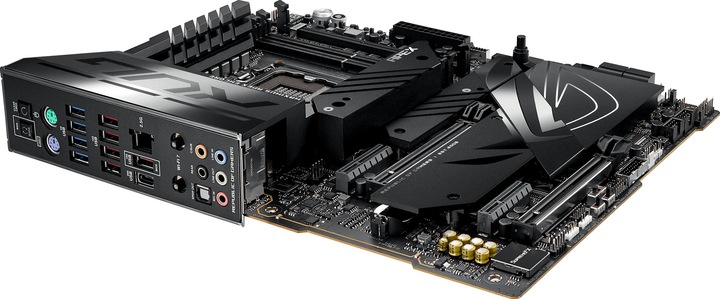

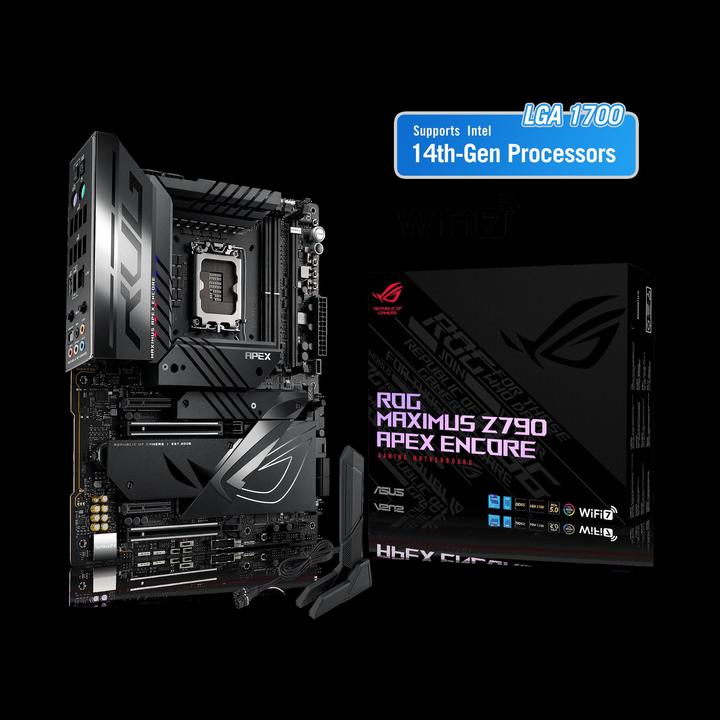

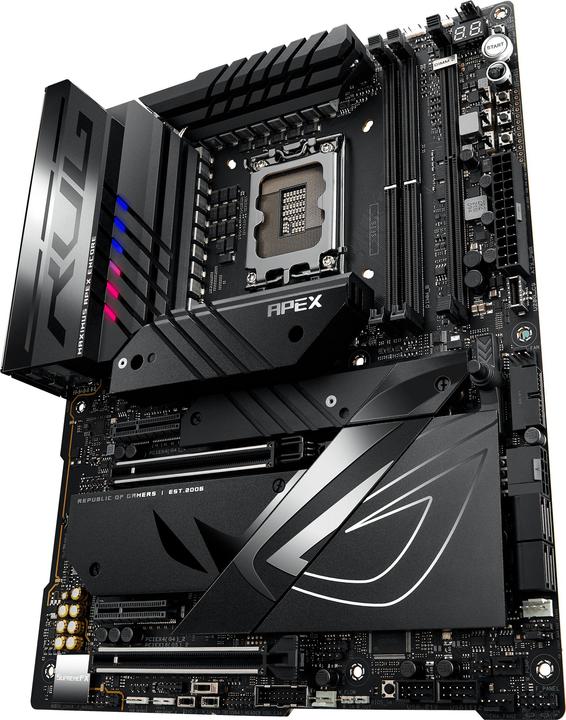

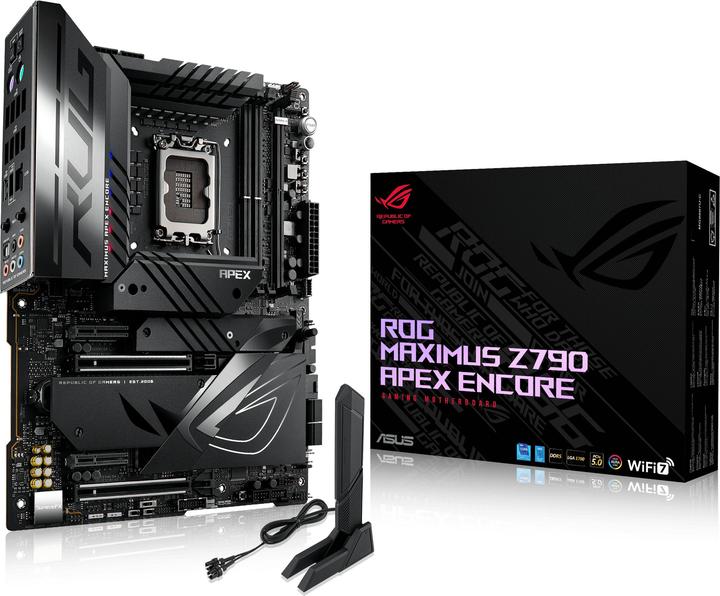

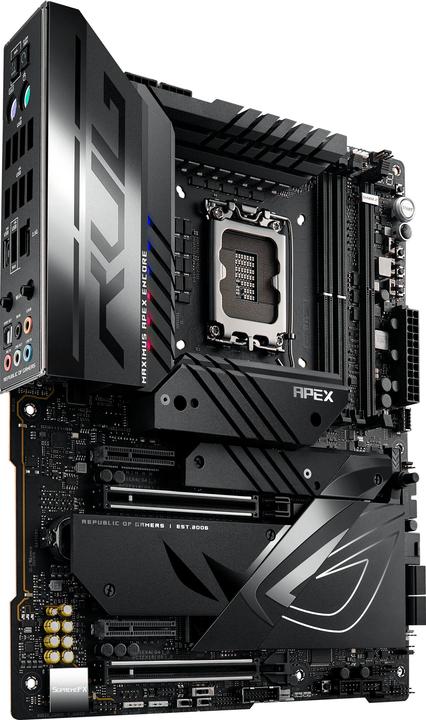

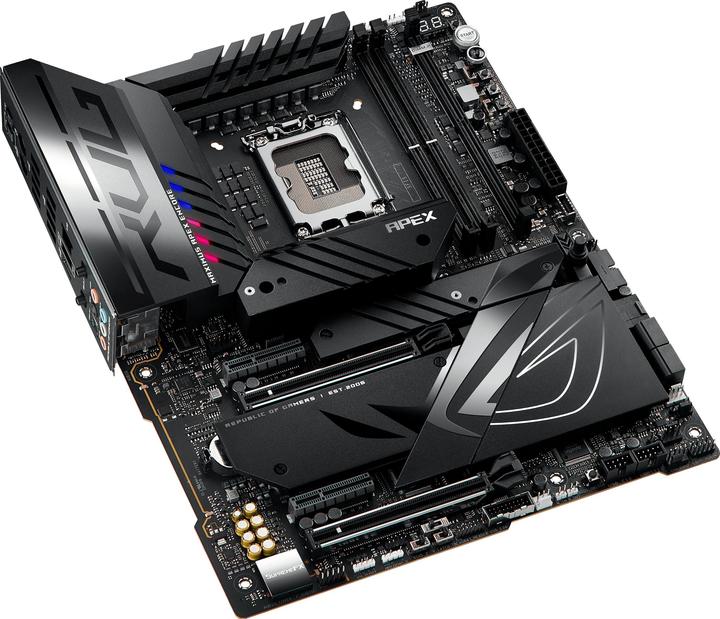

ASUS MB Intel 1700 ROG MAXIMUS Z790 APEX ENCORE

LGA 1700, Intel Z790, ATX
7Ratings
Currently out of stock
Free shipping starting at 30,–

Product details

The ASUS ROG MAXIMUS Z790 APEX ENCORE motherboard is based on the Intel Z790 chipset and supports Intel processors for socket 1700. It features two DDR5 DIMM slots operating in dual-channel mode for up to 96 GB of RAM.

Key specifications

Processor family
Celeron, Pentium
Memory type
DDR5 RAM
Number of memory modules (RAM)
2 x
Internal connection options
M.2 (3x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button, Temperature sensor connections
Item number
39363734

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1FX0-M0EAY0
Release date
20.9.2023
Sales rank in Category Motherboards
380 of 865

Motherboard properties

Form factor
ATX
Socket
LGA 1700
Chipset
Intel Z790
Mainboard features
Clear CMOS Button, Temperature sensor connections
Operating system compatibility
Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 7 / 802.11be

Processor

Processor family
Celeron, Pentium

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2 x
Max. memory (RAM)
96 GB
Memory chip
DDR5, DDR5-5200, DDR5-7600, DDR5-7800, DDR5-8000
Max. RAM OC
8000 MHz
Supported memory speed
5200 MHz, 7600 MHz, 7800 MHz, 8000 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
Thunderbolt (1x)

Network

Network connections
RJ45 (1x)
Ethernet controller
Gigabit Ethernet
Max. port speed
5 Gbit/s

Audio

Chip
Realtek ALC4080
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (5x)

Data storage

RAID configuration
10

Internal interfaces

Internal connection options
M.2 (3x)
Expansion slot
PCI Express x16 (2x), PCI Express x4 (2x)
PCI express version (max.)
5
Number of fan connector
7

Further connections

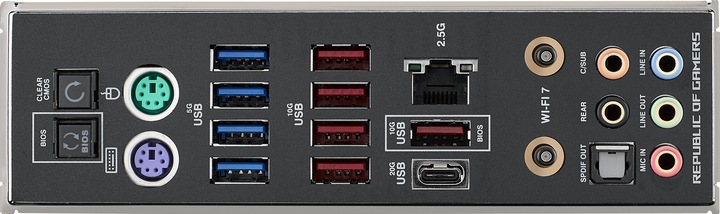

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (4x), USB-C 3.2 Gen 2 (1x)

Power supply

Power connectors
8-pin PCI-E

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

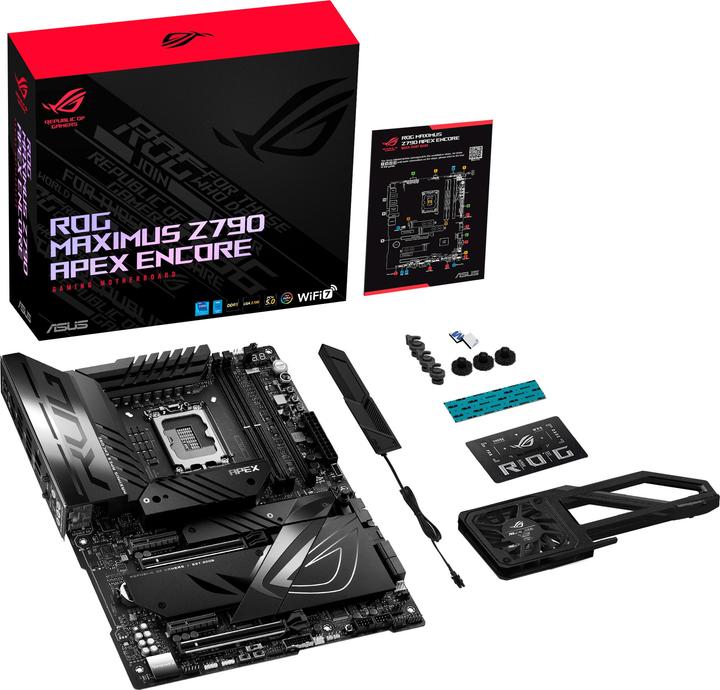

Scope of delivery

Scope of delivery
WiFi antennas

Product dimensions

Length
244 mm
Width
305 mm
Height
49 mm
Weight
1600 g

Package dimensions

Length
37.80 cm
Width
31.70 cm
Height
12 cm
Weight
3.28 kg
