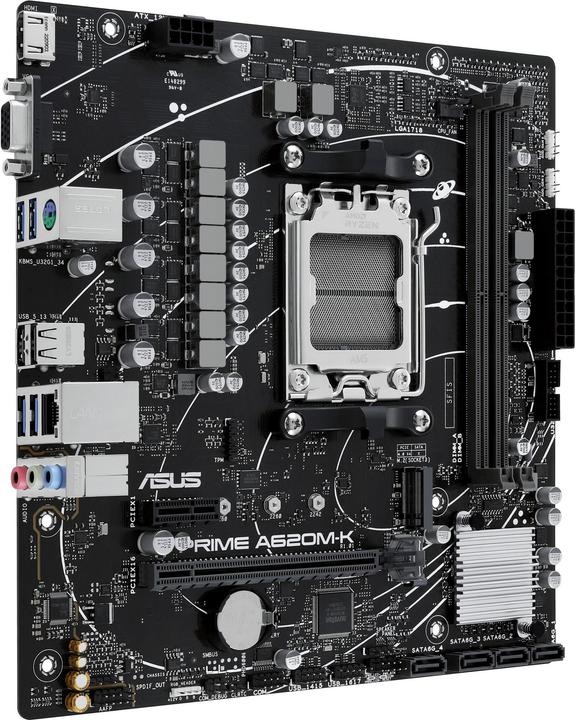

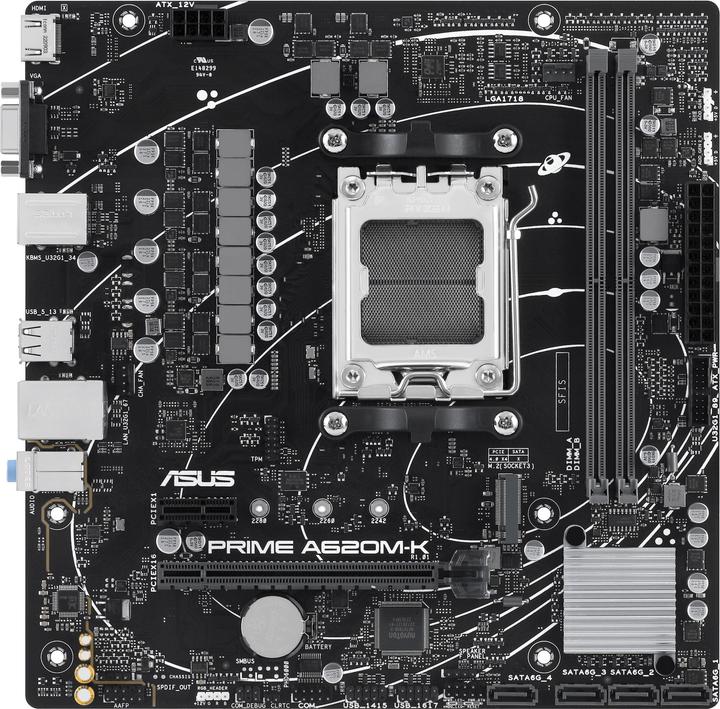

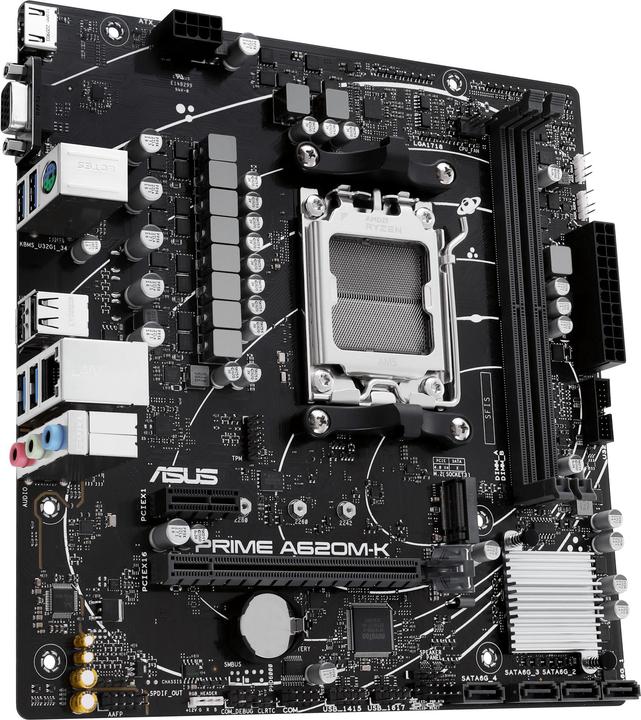

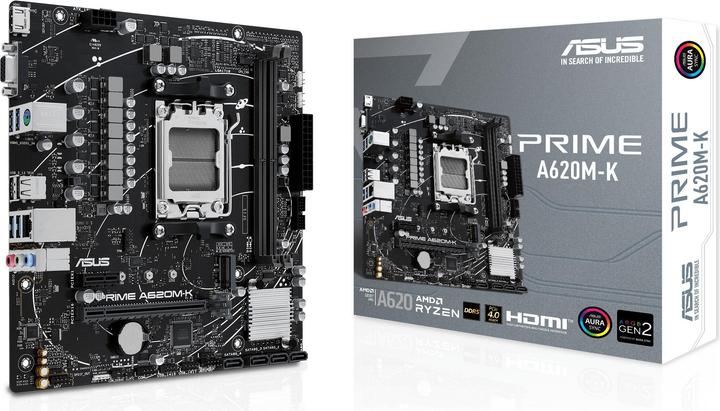

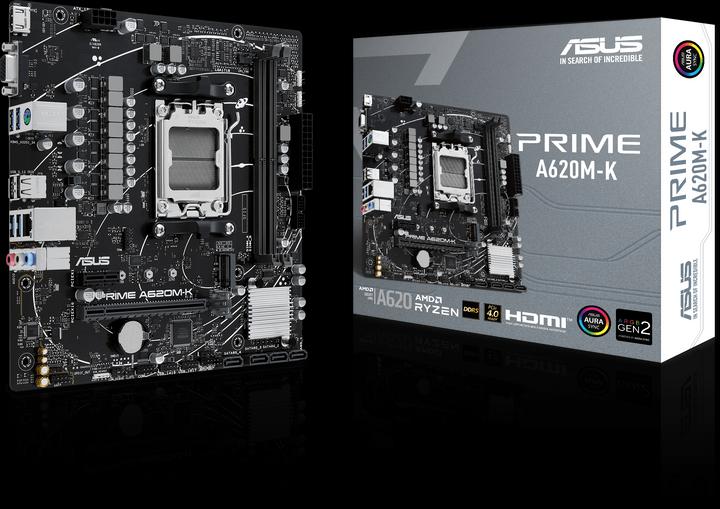

The ASUS PRIME A620M-K motherboard is based on the AMD A620 chipset and supports AMD processors for the AM5 socket. It features two DDR5 DIMM slots operating in dual-channel mode for up to 96 GB of memory.
Processor family | Ryzen 7th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | 4-pin CPU (1x), M.2 (1x), S-ATA III (4x) |
Mainboard features | Front panel audio connector |
Item number | 35823471 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1F40-M0EAY0 |
Release date | 24.5.2023 |
Sales rank in Category Motherboards | 482 of 910 |
External links |
Form factor | Micro ATX (mATX) |
Socket | AM5 |
Chipset | AMD A620 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | Ryzen 7th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 96 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 6400 MHz |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

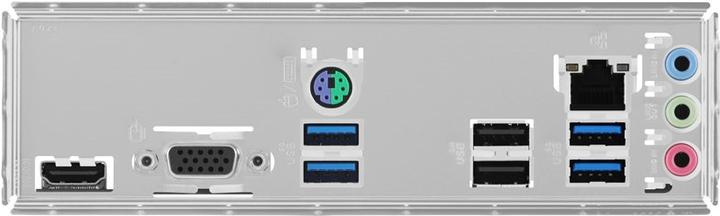

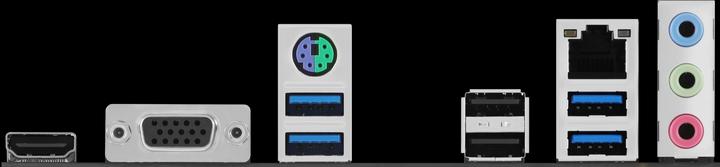

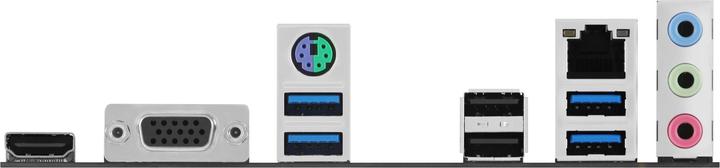

Video connections | D-Sub (1x), HDMI (1x) |
Video connection version | HDMI 2.1 |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | HDMI (1x) |
RAID configuration | 10 |
Internal connection options | 4-pin CPU (1x), M.2 (1x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (Gen 3) (1x) |
PCI express version (max.) | 3 |
Number of fan connector | 2 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x) |
Power connectors | 24-pin ATX, 8-pin PCI-E |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

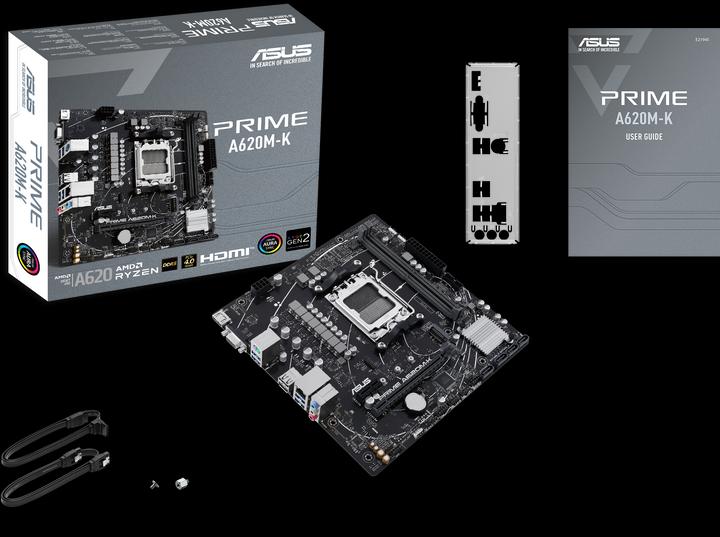

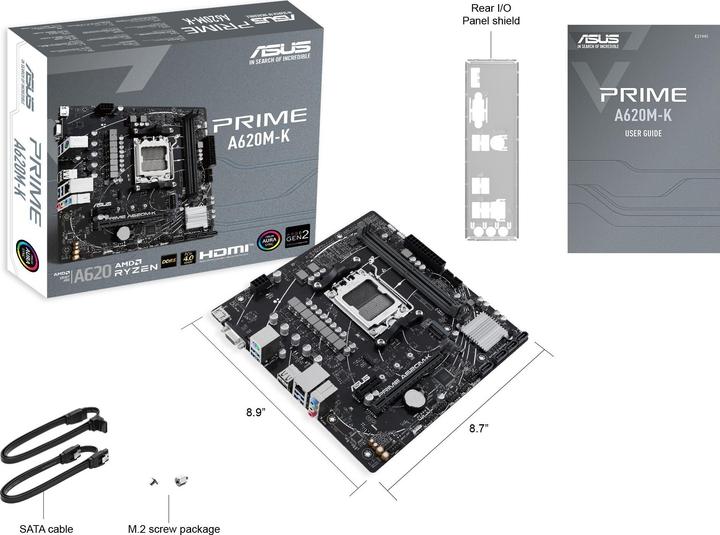

Scope of delivery | Manual |
Length | 221 mm |
Width | 226 mm |
Height | 51.50 mm |
Weight | 920 g |
Length | 27.60 cm |
Width | 26.80 cm |
Height | 5.60 cm |
Weight | 944 g |
