ASUS PRIME B650-PLUS-CSM
AM5, AMD B650, ATXOnly 1 piece in stock at supplier
Product details
The PRIME B650-PLUS-CSM is a motherboard designed for Intel processors of the 10th and 11th generation, utilizing the Intel B650 chipset. The motherboard features an ATX form factor and is intended for use in desktop computers.
It supports a maximum memory capacity of 128 GB and has four DDR4 memory slots. Additionally, it offers a variety of expansion slots, including PCIe 4.0 x16, PCIe 3.0 x4, and PCIe 3.0 x1, as well as six SATA 6 Gb/s ports and two M.2 slots for fast data storage.
The PRIME B650-PLUS-CSM is equipped with a range of ports, including USB 3.2 Gen 1, USB 3.2 Gen 2, and USB 2.0. It also provides Gigabit Ethernet for a fast network connection.
Mainboard features | Clear CMOS Button, COM Port Header, RGB header, Thunderbolt header, Trusted Platform Module |
Processor family | Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Number of memory modules (RAM) | 4x |
Memory type | DDR5 RAM |
Internal connection options | 24-pin ATX power connector (1x), 4-pin CPU (1x), 4-pin Molex (3x), 8-pin ATX 12V (1x) |
Item number | 22605354 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1BS0-M0EAYC |
Release date | 22.9.2022 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD B650 |
Mainboard features | Clear CMOS Button, COM Port Header, RGB header, Thunderbolt header, Trusted Platform Module |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory form factor | DIMM |
Number of pins | 288x |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 6400 MHz |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Chip | High Definition Audio |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm Line In (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | 24-pin ATX power connector (1x), 4-pin CPU (1x), 4-pin Molex (3x), 8-pin ATX 12V (1x) |
Expansion slot | PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 5 |

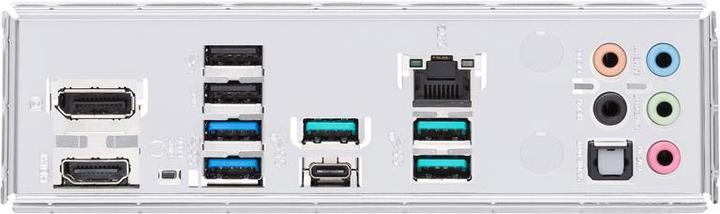

USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 2 (3x), USB-C 3.2 Gen 2 (1x) |
Power connectors | 24-pin ATX, 8-pin PCI-E |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 2069,65 kg |
Climate contribution | EUR 7,47 |
Scope of delivery | SATA cable |
Length | 244 mm |
Width | 305 mm |
Height | 244 mm |
Weight | 1350 g |
Product Safety |
Length | 27 cm |
Width | 34 cm |
Height | 7 cm |
Weight | 1.56 kg |
