ASUS PRIME B660-PLUS D4
LGA 1700, Intel B660, ATX5 pieces in stock
Product details

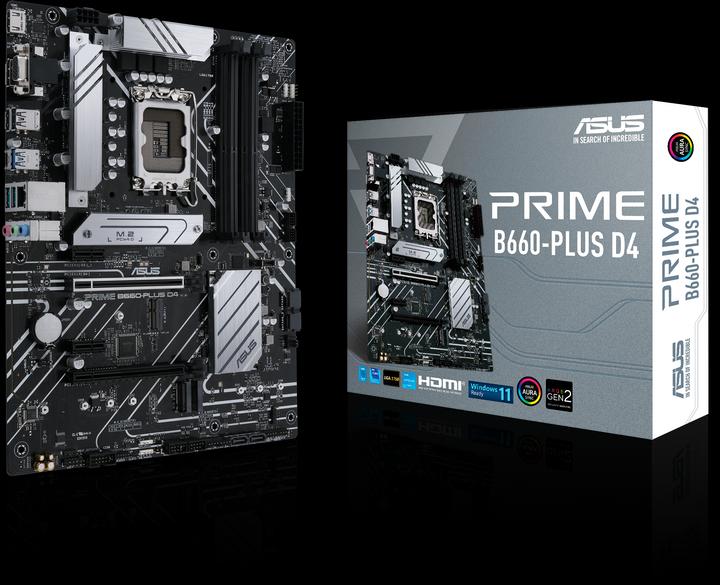

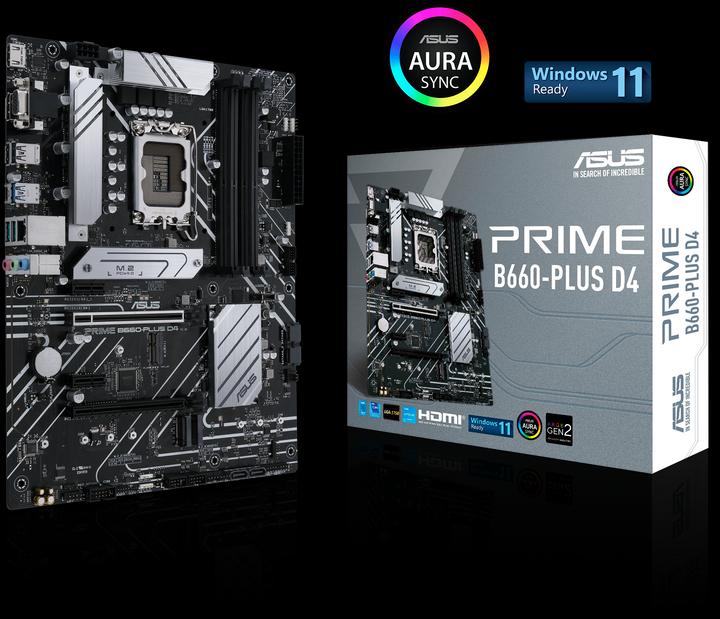

The ASUS Prime B660-Plus D4 motherboard is based on the Intel B660 chipset and supports Intel processors for the 12th generation socket 1700. It has four DDR4 DIMM slots in dual-channel mode for up to 128 GB of RAM. Other features of the ASUS Prime B660-Plus D4 include one PCIe 4.0 x16 slot, one PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots. Furthermore, the ASUS Prime B660-Plus D4 has 8-channel sound, a 2.5 Gigabit LAN interface, four SATA3 ports, three M.2 ports and a number of USB interfaces.
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory type | DDR4-RAM |
Mainboard features | Clear CMOS Button, Front panel audio connector |
Internal connection options | 4-pin PWM (1x), M.2 SATA (3x), S-ATA III (4x) |
Number of memory modules (RAM) | 4x |
Item number | 18260115 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB18X0-M0EAY0 |
Release date | 3.1.2022 |
Sales rank in Category Motherboards | 212 of 870 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel B660 |
Mainboard features | Clear CMOS Button, Front panel audio connector |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory form factor | DIMM |
Number of pins | 288x |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 3600 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

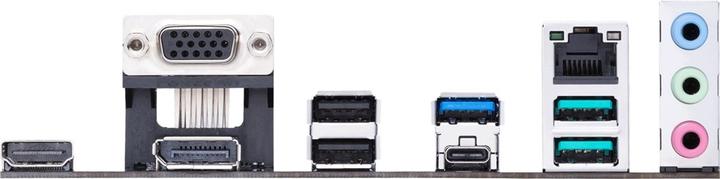

Video connections | D-Sub (1x), DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 2.1 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Chip | High Definition Audio |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (3x), Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | 4-pin PWM (1x), M.2 SATA (3x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (Gen 3) (2x), PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 3 |
USB ports | USB-A |
Exact USB ports | USB-A 1.0 (1x), USB-C 4 (1x) |
Power connectors | 24-pin ATX, 8-pin PCI-E |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

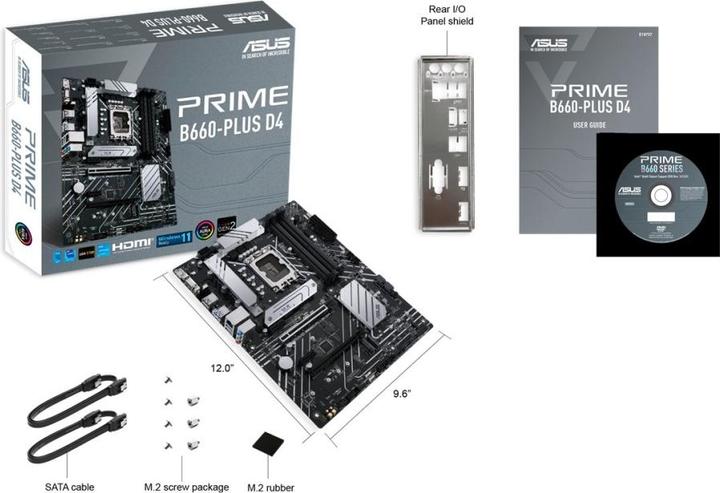

Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 305 mm |
Height | 53 mm |
Weight | 891 g |
Product Safety |
Length | 27 cm |
Width | 34 cm |
Height | 6 cm |
Weight | 1.16 kg |
