ASUS PRIME B760-PLUS D4
LGA 1700, Intel B760, ATXOnly 4 items in stock
Product details

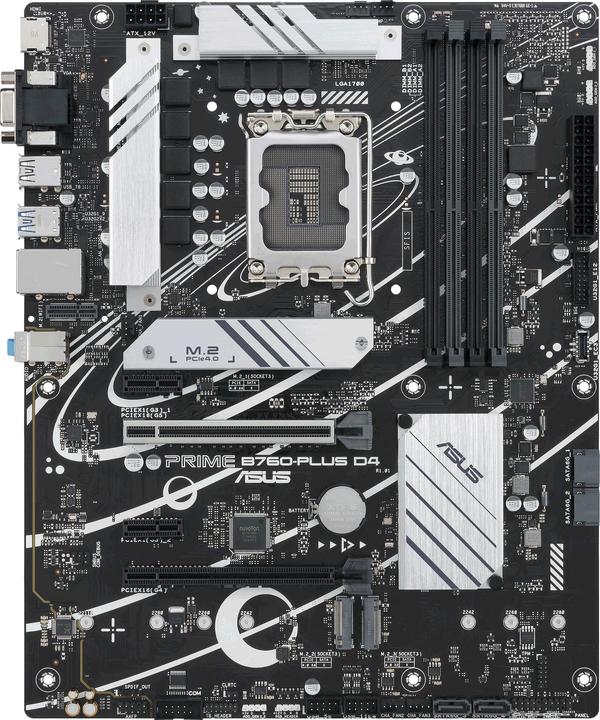

The ASUS PRIME B760-PLUS D4 Gaming motherboard is a powerful board designed for both the 12th and 13th generation Intel processors. It features an Intel LGA1700 socket and offers ultra-fast connectivity options with PCIe 5.0, three PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C, and Thunderbolt (USB4) header support. To ensure comprehensive cooling, the motherboard is equipped with a VRM heatsink, an M.2 heatsink, a PCH heatsink, a hybrid fan header, and Fan Xpert 2+.
Carefully routed traces and vias maintain signal integrity, enhancing memory stability. The motherboard also features Aura Sync RGB lighting and integrated addressable Gen 2 headers and Aura RGB headers for RGB LED strips, which can easily be synchronized with Aura Sync-compatible hardware.
The ASUS PRIME B760-PLUS D4 Gaming motherboard is an excellent choice for gamers and PC DIY builders looking to harness the full potential of 13th generation Intel Core processors.
Processor family | Celeron, Core i3, Core i5 |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (4x) |
Mainboard features | Front panel audio connector |
Item number | 23621348 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1CW0-M0EAY0 |
Release date | 29.11.2022 |
Sales rank in Category Motherboards | 158 of 884 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | Celeron, Core i3, Core i5 |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 5066 MHz |
Supported memory speed | 3200 MHz, 4000 MHz, 4400 MHz, 4800 MHz, 5000 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

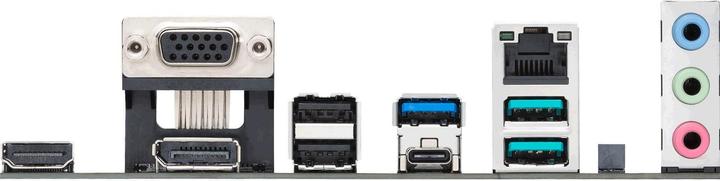

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Max. port speed | 2.50 Gbit/s |
Chip | High Definition Audio |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 3 |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 20+8 pin ATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

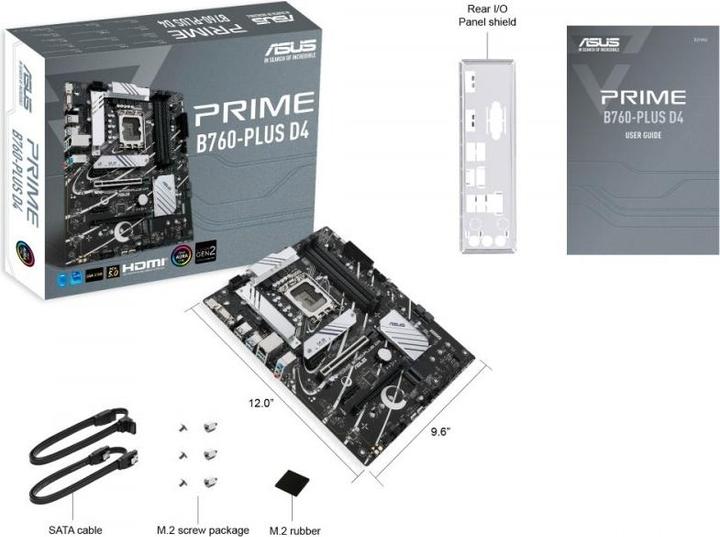

Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 305 mm |
Height | 244 mm |
Weight | 1160 g |
Length | 33 cm |
Width | 27 cm |
Height | 6 cm |
Weight | 1.14 kg |
