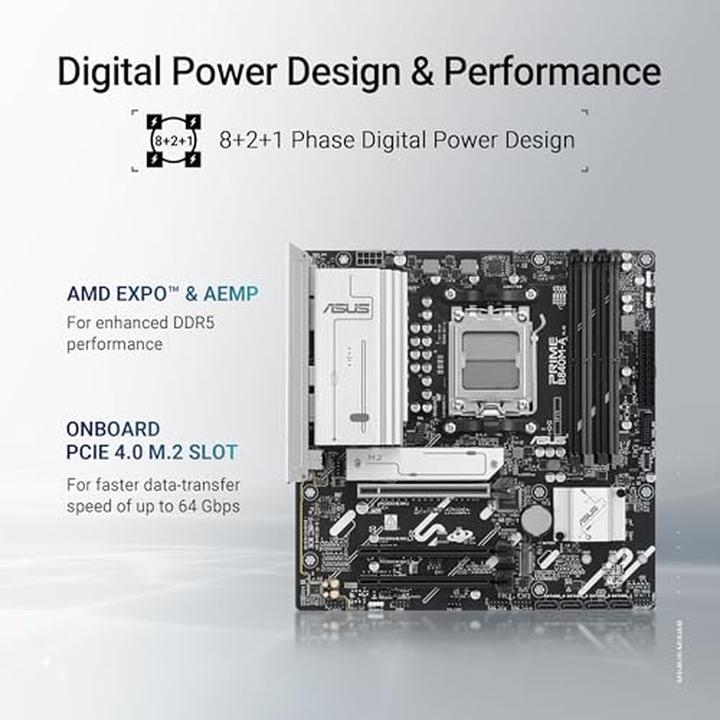

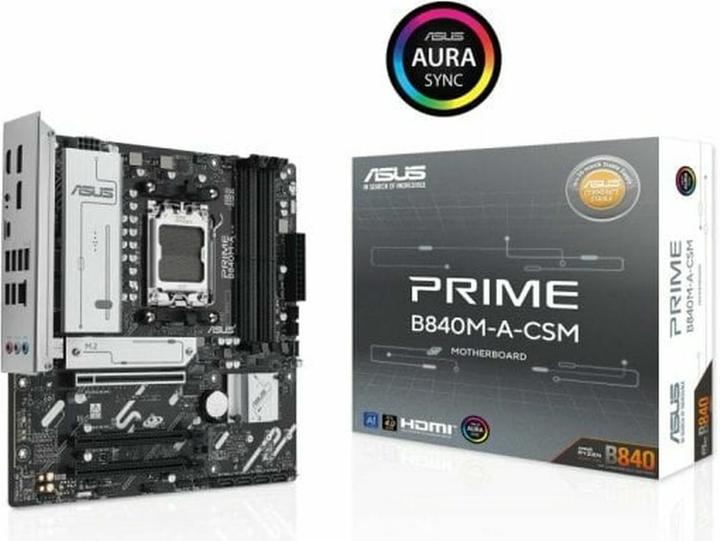

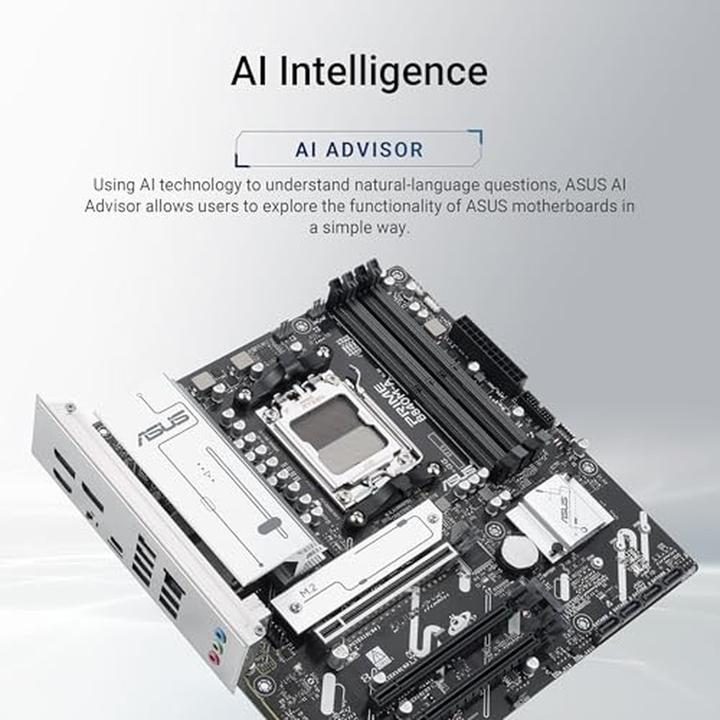

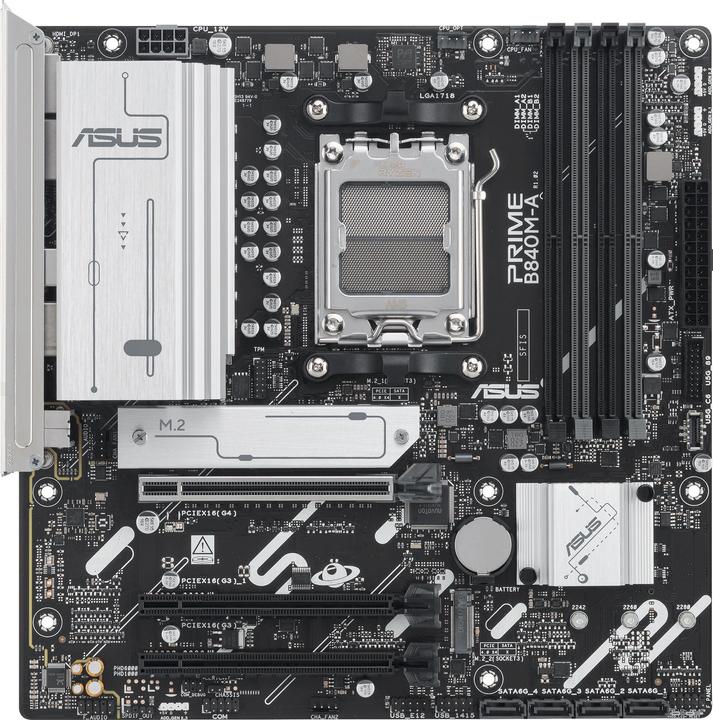

ASUS PRIME B840M-A-CSM
AM5, AMD B840, mATXPrice in EUR including VAT
free shipping
Asus Prime Series motherboards are expertly designed to unleash the full potential of AMD Ryzen 9000 processors. The Prime B840M-A-CSM motherboard offers users and PC DIY builders a range of performance optimisations via intuitive software and firmware functions. Designed to be "Advanced AI PC-ready", it offers the performance and connectivity required for demanding AI applications.
Processor family | AMD 7000 Series |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Mainboard features | Clear CMOS Button, COM Port Header, Front panel audio connector, S/PDIF header |
Item number | 53632620 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1J10-M0EAYC |
Release date | 25.11.2024 |
Sales rank in Category Motherboards | 257 of 910 |
Form factor | Micro ATX (mATX) |
Socket | AM5 |
Chipset | AMD B840 |
Mainboard features | Clear CMOS Button, COM Port Header, Front panel audio connector, S/PDIF header |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | AMD 7000 Series |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 7600 MHz |
Supported memory speed | 7600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x), Jack 3.5mm Line In (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 4 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.1 Gen 1 (2x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 24-pin ATX, 8-pin EATX 12V |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

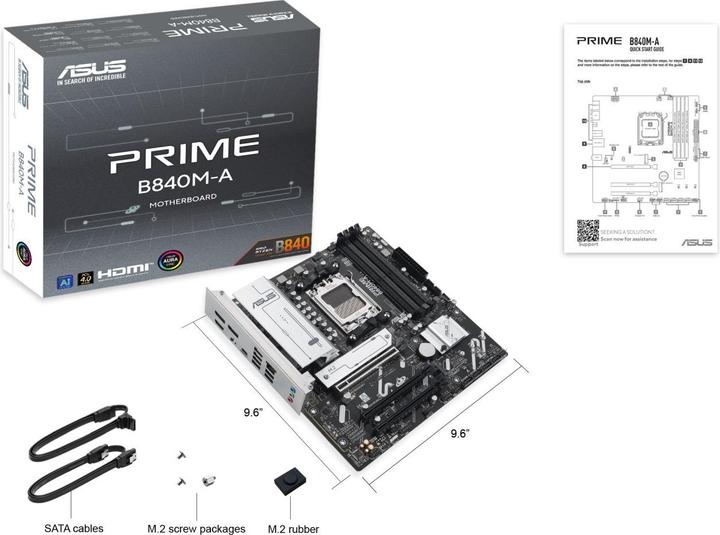

Scope of delivery | Sata Cables, Screws |
Length | 244 mm |
Width | 244 mm |
Height | 244 mm |
Weight | 910 g |
Length | 27.50 cm |
Width | 27.50 cm |
Height | 6.80 cm |
Weight | 1.34 kg |
