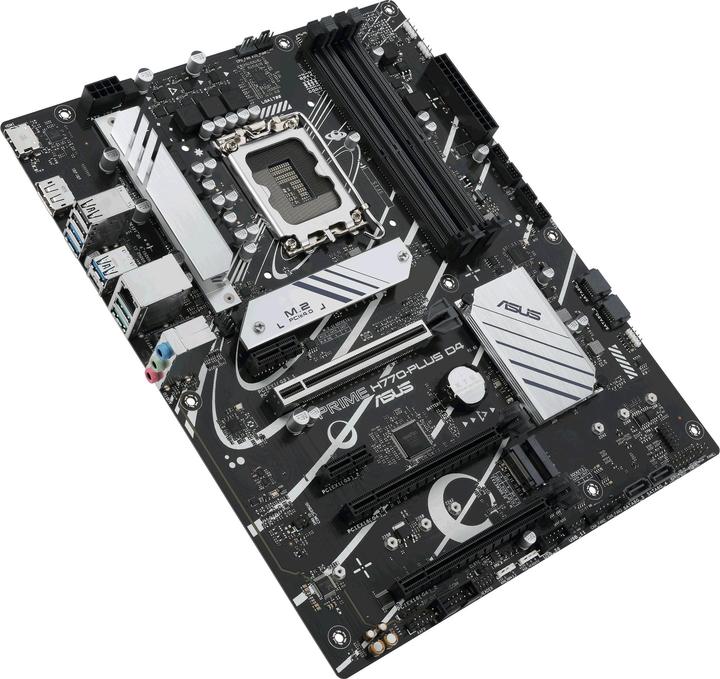

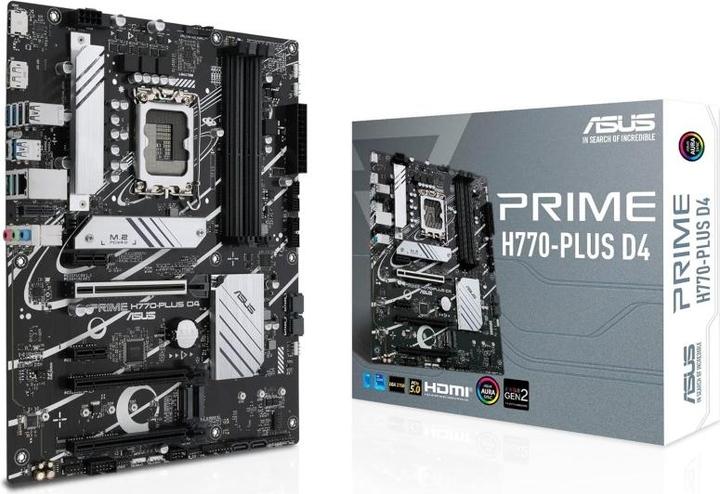

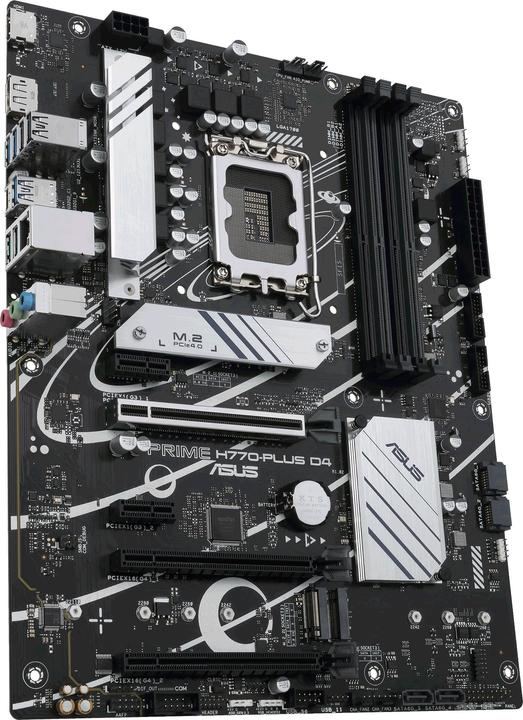

ASUS PRIME H770-PLUS D4

LGA 1700, Intel H770, ATX
2Ratings
Currently out of stock
Free shipping starting at 30,–

Product details

ASUS Prime series motherboards are expertly designed to unleash the full potential of 13th generation Intel Core processors. With a robust power design, comprehensive cooling solutions, and intelligent tuning options, the PRIME H770-PLUS D4 offers users and PC enthusiasts a range of performance optimizations through intuitive software and firmware features.

Key specifications

Processor family
Celeron, Core i3 12th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i9 12th Gen, Core i9 13th Gen, Pentium
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 (1x), S-ATA III (4x)
Mainboard features
Trusted Platform Module
Item number
23630342

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1CU0-M0EAY0
Release date
29.11.2022

Motherboard properties

Form factor
ATX
Socket
LGA 1700
Chipset
Intel H770
Mainboard features
Trusted Platform Module
Operating system compatibility
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Celeron, Core i3 12th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i9 12th Gen, Core i9 13th Gen, Pentium

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4 RAM
Max. RAM OC
5066 MHz
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 4000 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

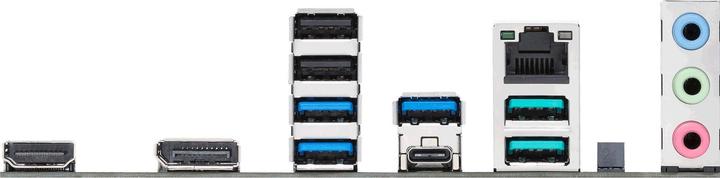

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller
Gigabit Ethernet
Max. port speed
2.50 Gbit/s

Audio

Chip
High Definition Audio
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (1x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
M.2 (1x), S-ATA III (4x)
Expansion slot
PCI Express x16 (Gen 4) (1x), PCI Express x16 (Gen 5) (1x)
Number of fan connector
3

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 1 (3x)

Power supply

Power connectors
20+8 pin ATX

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables, User manual

Product dimensions

Length
244 mm
Width
305 mm
Height
30.50 mm
Weight
1130 g

Package dimensions

Length
33.20 cm
Width
27.20 cm
Height
5.80 cm
Weight
1.11 kg
