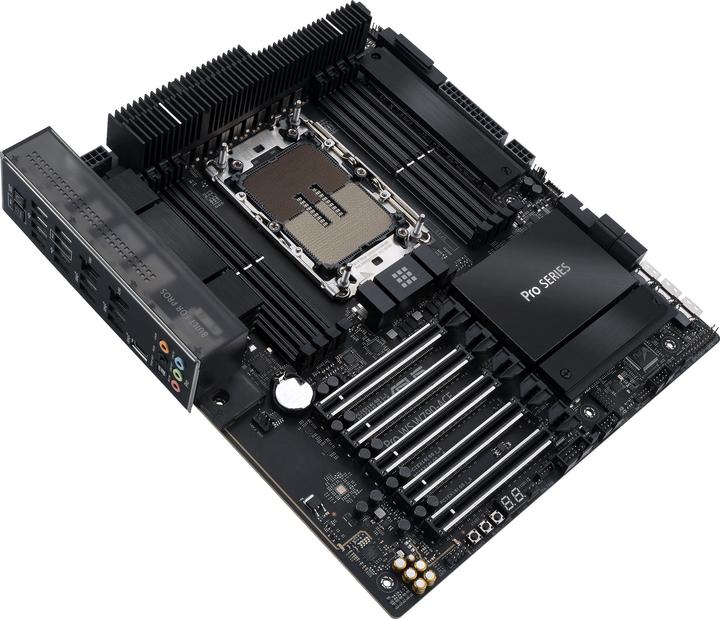

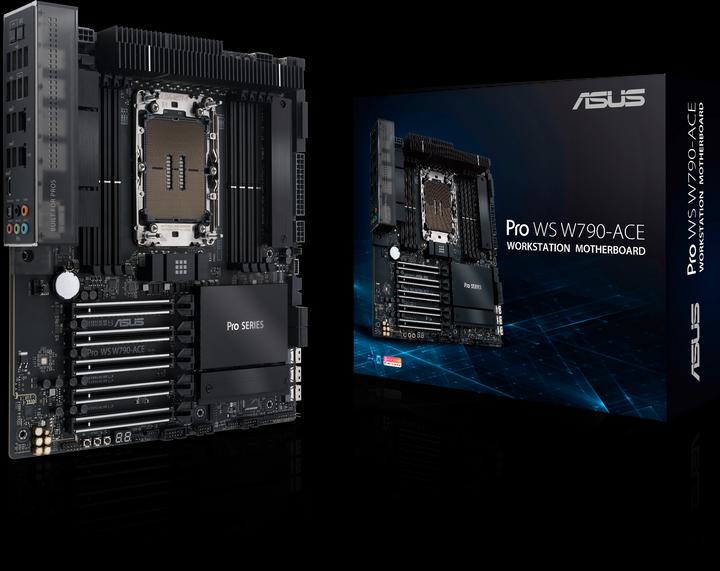

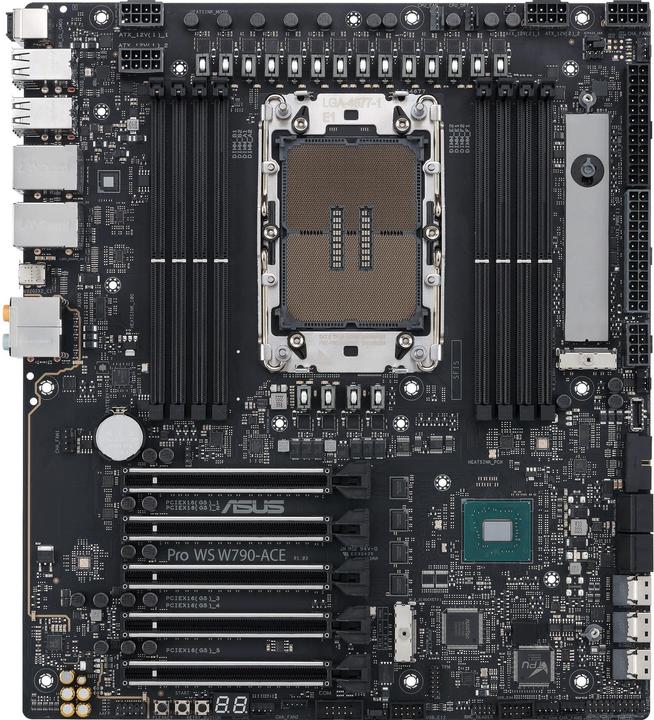

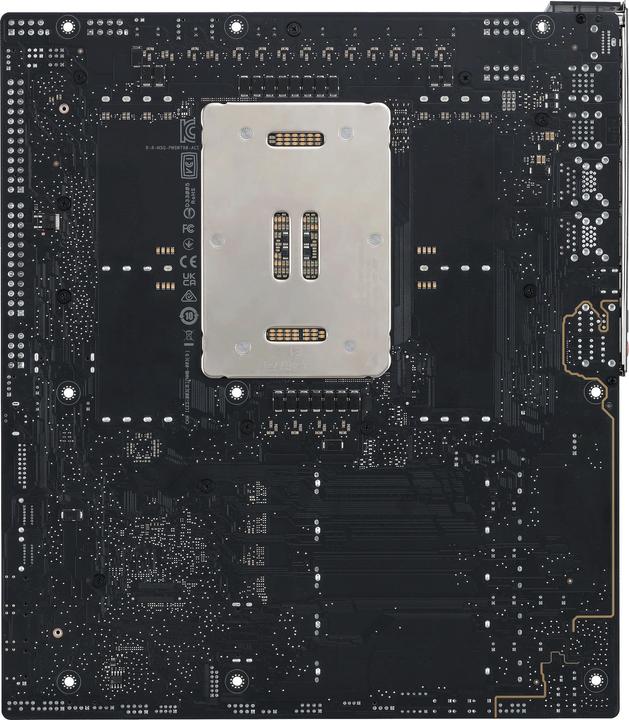

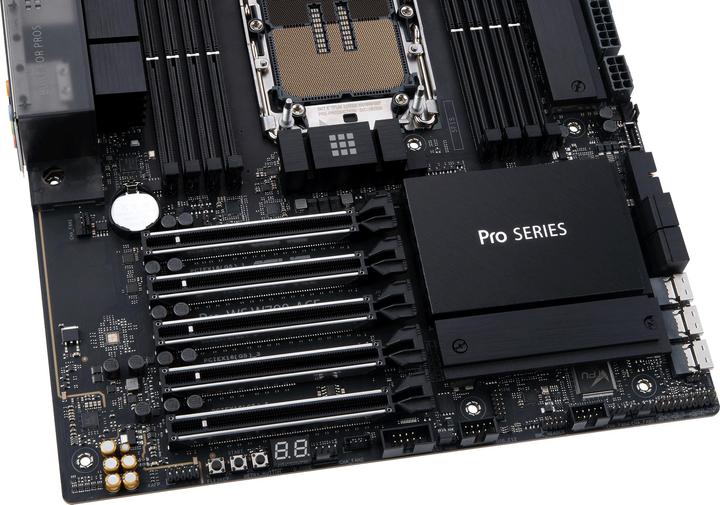

ASUS PRO WS W790-ACE
LGA 4677, Intel W790, SSI CEBMore than 10 pieces in stock at supplier
Product details
Designed specifically for creative professionals, developers and engineers, the Pro WS W790 series workstation motherboard unleashes the superior performance of the latest Intel Xeon processors with CPU and memory overclocking capability. With an optimised memory layout, advanced power-stage design, server-level IPMI remote management and ultra-fast PCIe 5.0 and network connectivity, the Pro WS W790 Series combines uncompromising engineering with incredible aesthetics. ASUS W790 motherboards go beyond the ordinary with a carefully maintained collection of hardware validations to ensure your workstation supports a variety of storage, coolers, chassis, power supplies and other devices.
Processor family | Xeon W |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 8 x |
Internal connection options | S-ATA III (6x) |
Mainboard features | Clear CMOS Button, Front panel audio connector |
Item number | 24860093 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1C70-M0EAY0 |
Release date | 17.3.2023 |
Sales rank in Category Motherboards | 470 of 910 |
Form factor | SSI CEB |
Socket | LGA 4677 |
Chipset | Intel W790 |
Mainboard features | Clear CMOS Button, Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | Xeon W |
Memory form factor | DIMM |
Number of memory modules (RAM) | 8 x |
Max. memory (RAM) | 2048 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 6800 MHz |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz |
Transfer rate | 10 MT/s |
Memory type | DDR5 RAM |
RAM buffer | ECC Registered |

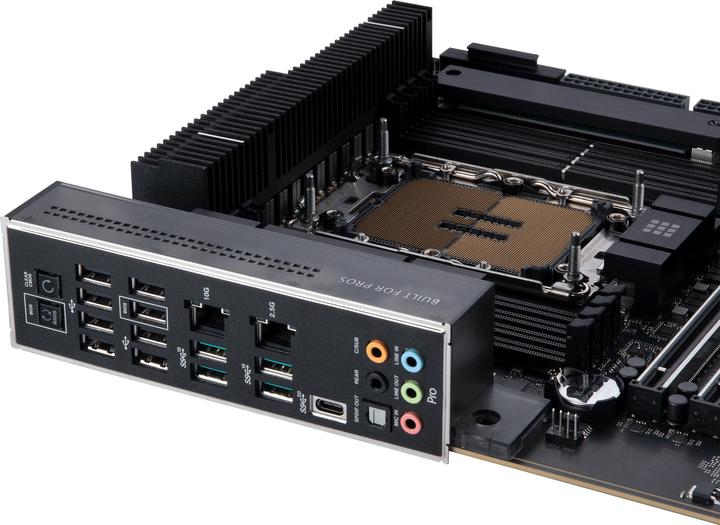

Video connections | DisplayPort (2x), HDMI (2x) |
Network connections | RJ45 (2x) |
Ethernet controller brand | Realtek |
Ethernet controller | Ethernet LAN, LAN |
Max. port speed | 10 Gbit/s |
Chip | Realtek S1220A |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (5x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (6x) |

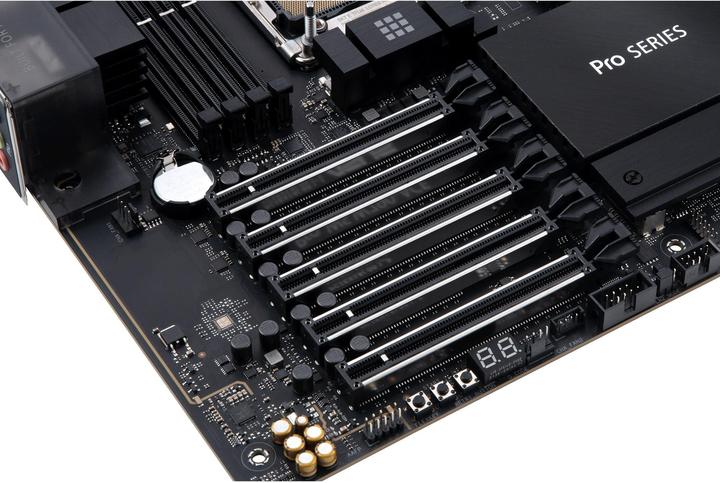

Expansion slot | PCI Express x16 (5x) |
PCI express version (max.) | 5 |
Number of fan connector | 5 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (8x), USB-A 3.2 Gen 1 (1x), USB-A 3.2 Gen 2 (4x) |
Power connectors | 1x flat 4-pin ATX 12V, 24-pin ATX |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

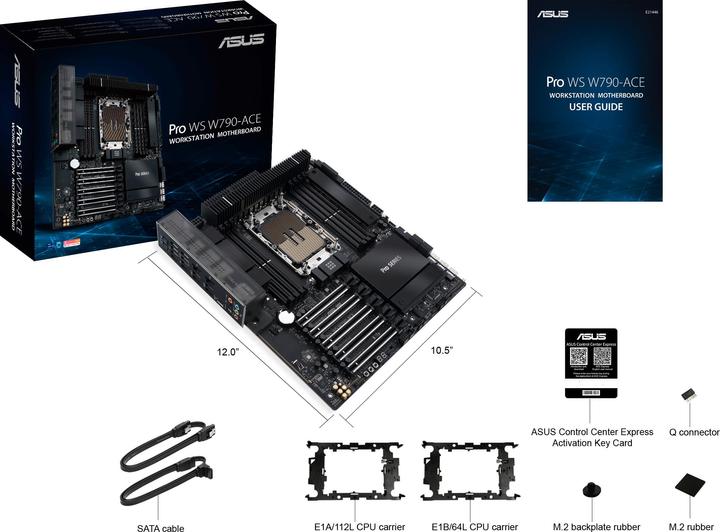

Scope of delivery | Manual |
Length | 277 mm |
Width | 305 mm |
Height | 50 mm |
Weight | 1814 g |
Length | 37.40 cm |
Width | 31.90 cm |
Height | 11.40 cm |
Weight | 3.11 kg |
