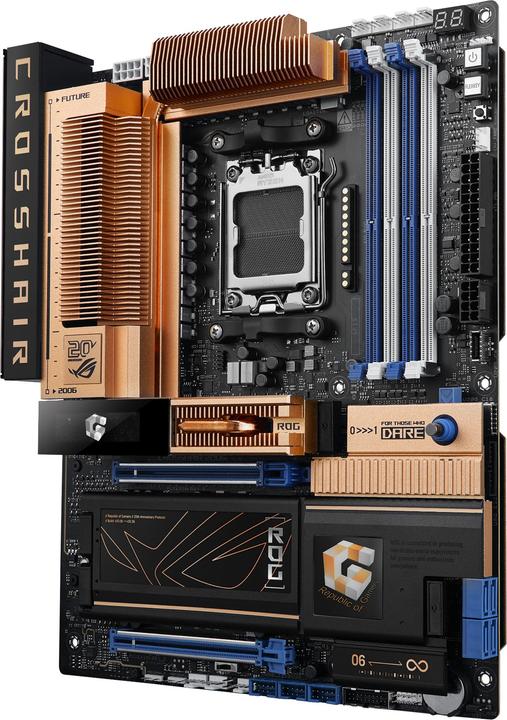

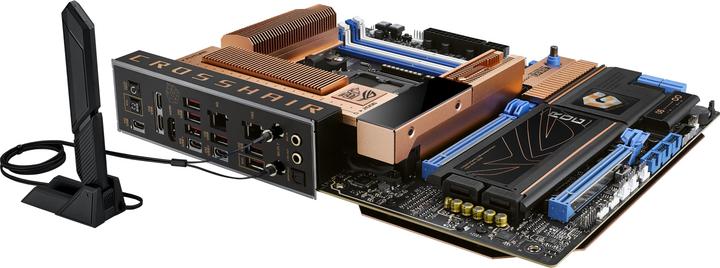

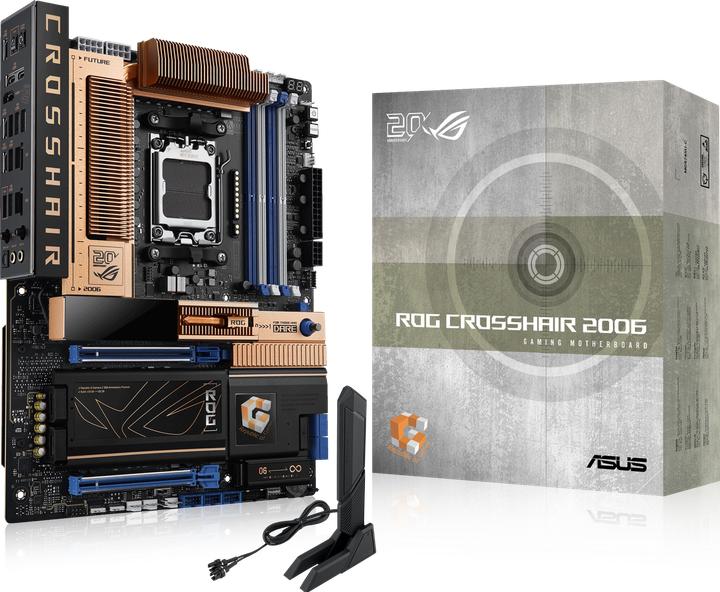

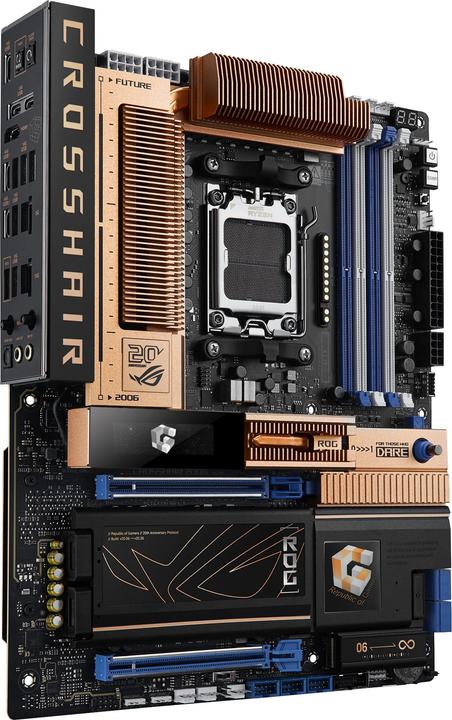

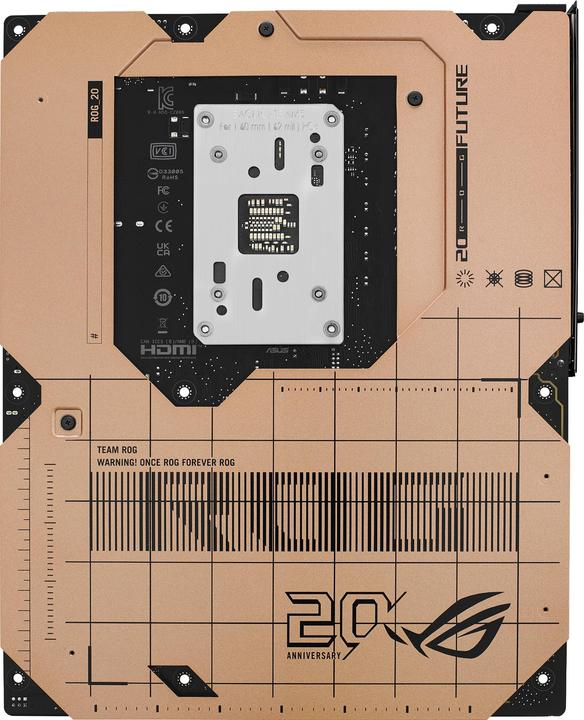

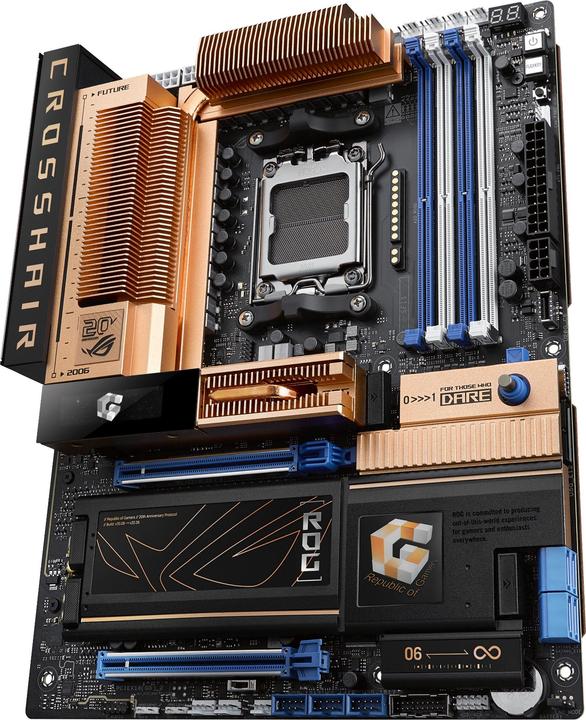

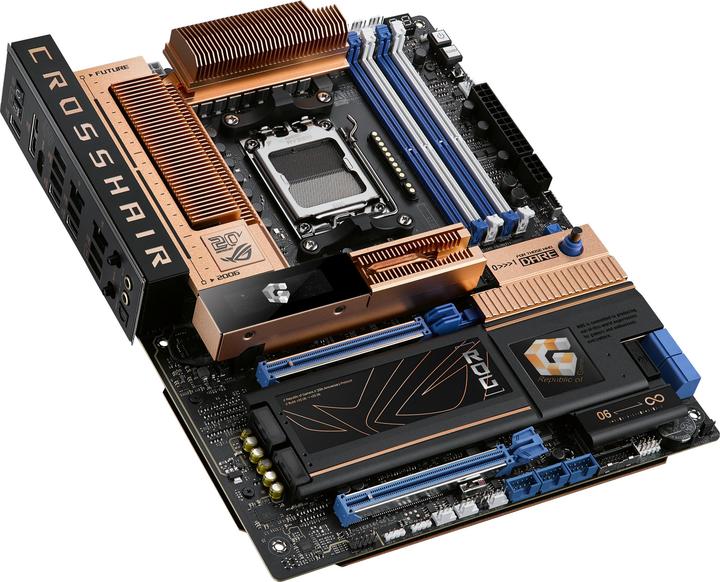

ASUS ROG Crosshair 2006 AMD X870E 4*DDR5 5*M.2 4*SataIII AM5 HDMI ATX
AM5, AMD X870E, ATX6 pieces in stock at supplier
Product details
ROG Crosshair 2006
The ROG Crosshair 2006 celebrates the 20th anniversary of the very first ROG motherboard with a retro-inspired copper color design and signature OLED animation. This flagship platform also offers advanced power delivery and cutting-edge memory technologies, blending heritage with modern performance.
Personalization
The ROG Crosshair 2006 includes LiveDash, a built-in 2-inch OLED panel that shows useful information and features customizable graphics. During the power-on, self-test (POST) phase, the OLED shows key stats in simple language using traditional POST codes. In normal operation, the panel can be programmed to show CPU frequency, device temperatures, or fan speeds. You can also personalize the default OLED GIF with a preferred image or animation.
Supports custom animation uploads in 256x64 pixel monochrome format (up to 100KB).
Mainboard features | Front panel audio connector |
Wireless transmission | Bluetooth, Wi-Fi |
Number of memory modules (RAM) | 4x |
Memory type | DDR5-RAM |
Internal connections | M.2 (5x), S-ATA III (4x) |
Item number | 70622457 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer No. | 90MB1PP0-M0EAY0 |
Release date | 4.5.2026 |
External links |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD X870E |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Memory type | DDR5-RAM |
RAM buffer | Unbuffered |
Video connections | HDMI (1x) |
Network connections | RJ45 (2x) |
Max. port speed | 10 Gbit/s |
Chip | Realtek ALC4082 |
Audio channel | 7.1 Channel |
RAID configuration | 0, 1, 10, 5 |
Internal connections | M.2 (5x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (2x) |
PCI express version (max.) | 5 |
Number of fan connector | 3 |

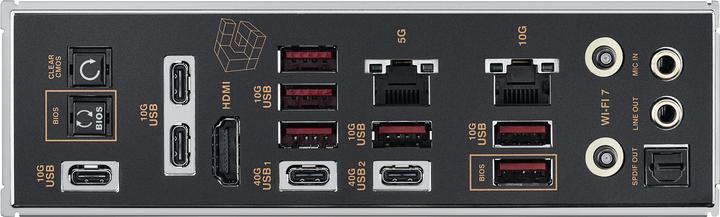

USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (3x), USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 2 (3x), USB-C 3.2 Gen 2x2 (2x), USB-C 4 (2x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂ emissions | 941,9 kg |
Climate contribution | EUR 23,43 |

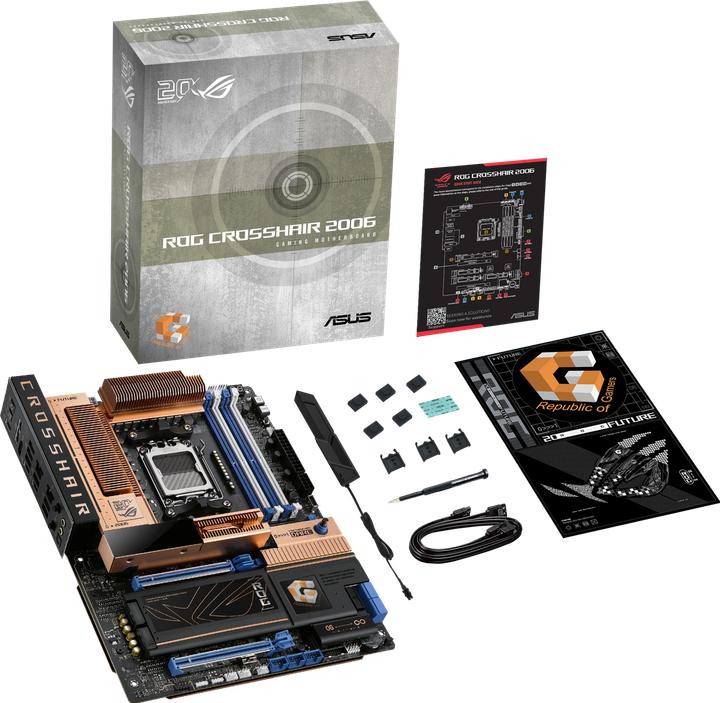

Scope of delivery | Aerial, SATA cable, Screws |
Length | 244 mm |
Width | 305 mm |
Height | 50 mm |
Weight | 2506 g |
