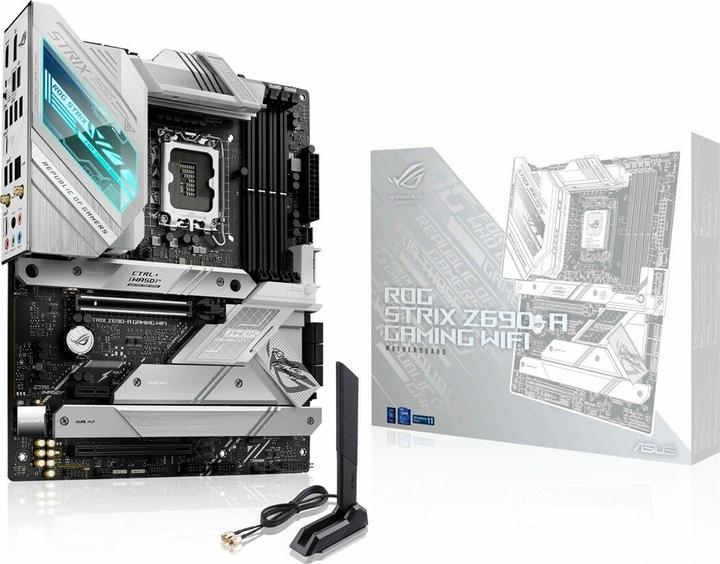

ASUS ROG Strix Z690-A Gaming Wifi
LGA 1700, Intel Z690H, ATXPrice in EUR including VAT
Delivered the day after tomorrow
Only 4 items in stock
Only 4 items in stock
free shipping
Product details
The ASUS ROG Strix Z690-A Gaming Wifi motherboard is based on the Intel Z690 chipset and supports Intel processors for the 12th generation LGA 1700 socket. It features four DDR5 DIMM slots operating in dual-channel mode for up to 128 GB of RAM. Additional features of the ASUS ROG Strix Z690-A Gaming Wifi include a PCIe 5.0 x16 slot, a PCIe 3.0 x16 slot, and a PCIe 3.0 x1 slot. Furthermore, the ASUS ROG Strix Z690-A Gaming Wifi offers 8-channel audio, a 2.5 Gigabit LAN interface, six SATA3 ports, four M.2 slots, WiFi 6, Bluetooth 5.2, and a variety of USB interfaces.
Processor family | Celeron, Core i3, Core i5, Core i7 |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (4x), S-ATA III (6x) |
Wireless transmission | Wi-Fi |
Mainboard features | Clear CMOS Button |
Item number | 20747347 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1AP0-M0EAY0 |
Release date | 29.3.2022 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel Z690H |
Mainboard features | Clear CMOS Button |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 6E / 802.11az |
Processor family | Celeron, Core i3, Core i5, Core i7 |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
Audio Connections | Audio In |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (4x), S-ATA III (6x) |
Expansion slot | PCI Express x16 (Gen 5) (1x) |
Number of fan connector | 5 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x) |
Power connectors | 24-pin ATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 4 x Serial ATA cable |
Length | 2440 mm |
Width | 305 mm |
Height | 70 mm |
Weight | 1030 g |
Length | 34.40 cm |
Width | 27.70 cm |
Height | 7.60 cm |
Weight | 2.33 kg |
Product Safety |
