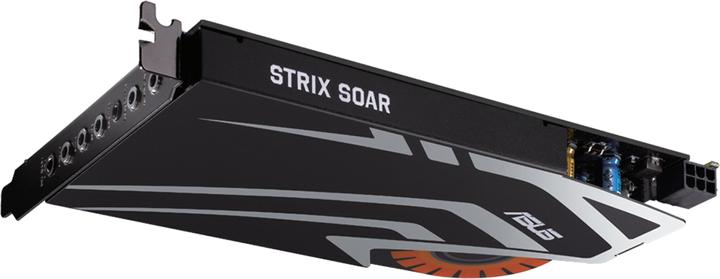

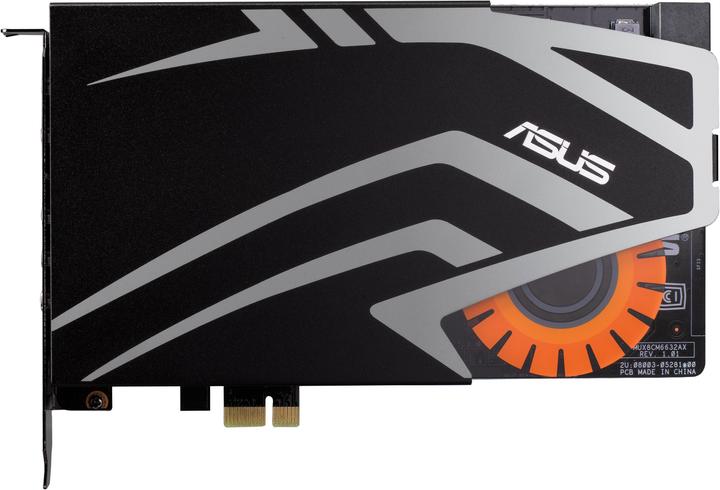

Short Info: ASUS Strix Soar - Sound Card - 24-Bit - 192 kHz - 116 dB S/N - 7.1 - PCIe

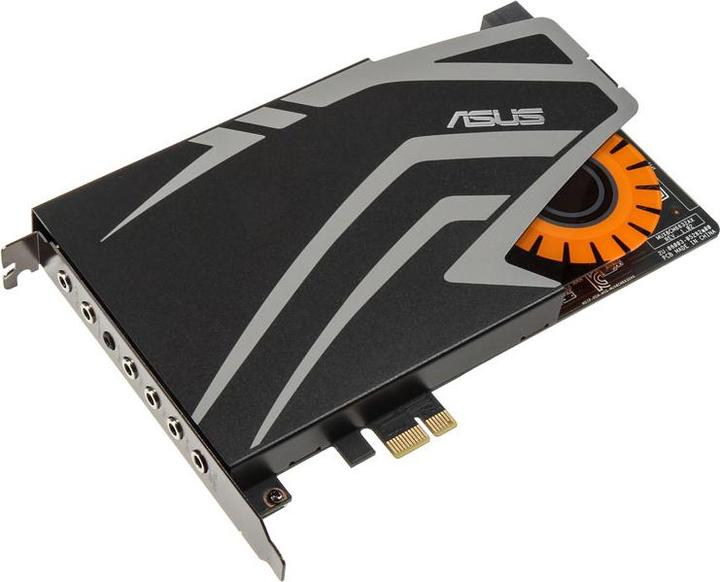

Product Description: ASUS Strix Soar - Sound Card

Device Type: Sound Card
Type: Internal
Interface Type: PCI Express
Dimensions (Width x Depth x Height): 2.2 cm x 19 cm x 13 cm
Weight: 480 g
Signal Processor: CM6632AX
Sound Mode: 7.1 Channel Surround
DAC Resolution: 24-Bit
Sampling Rate: 44.1 kHz (Min.) - 192 kHz (Max)
Signal-to-Noise Ratio: 116 dB

System Requirements: Microsoft Windows 7 (32/64 bits) SP1, Windows 8 (32/64 Bit), Windows 8.1 (32/64 Bit)

General:
Device Type: Sound Card
Form Factor: Internal
Interface Type: PCI Express
Width: 2.2 cm
Depth: 19 cm
Height: 13 cm
Weight: 480 g

Processor / Memory:
Signal Processor: CM6632AX

Audio Output:
Sound Mode: 7.1 Channel Surround
DAC Resolution: 24-Bit
Sampling Rate: 44.1 kHz (Min.) - 192 kHz (Max)
Signal-to-Noise Ratio: 116 dB
Frequency Response: 10 - 48000 Hz

Features:
Headphone Amplifier, Hyper Grounding Technology, Sonic Radar Pro

Compatibility: ASIO 2.0

Audio Modes:
Recording: 24-Bit 192 kHz
Playback: 24-Bit 192 kHz

Expansion / Connectivity:

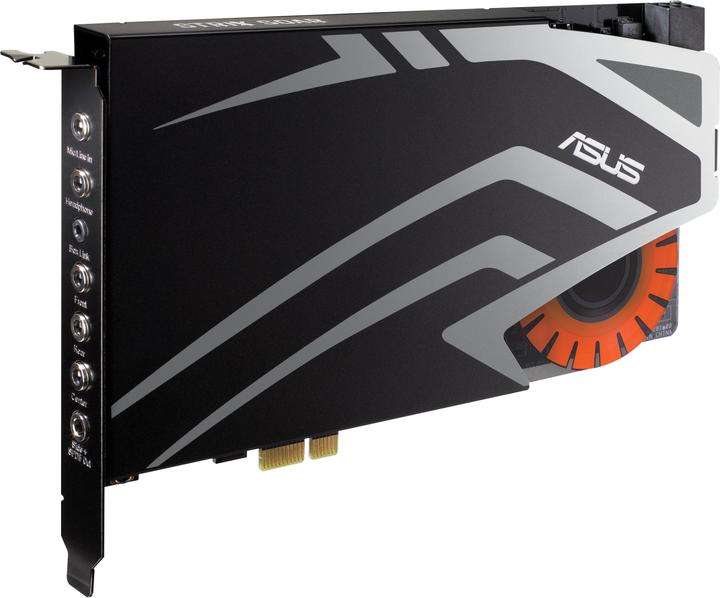

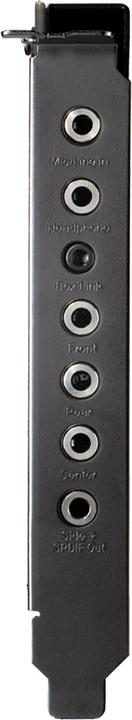

Interfaces:
1 x Headphone - Mini-Phone 3.5 mm
1 x Speaker (Front Surround) - Mini-Phone 3.5 mm
1 x Speaker (Center/Subwoofer) - Mini-Phone 3.5 mm
1 x Speaker (Side)/SPDIF Output - Mini-Phone 3.5 mm
1 x Speaker (Rear) - Mini-Phone 3.5 mm
1 x Audio Line-In/Microphone - Mini-Phone 3.5 mm

Miscellaneous:
Included Cables: 1 x Optical S/PDIF Adapter

Software / System Requirements:
Software: Sonic Studio
Required Operating System: Microsoft Windows 7 (32/64 bits) SP1, Windows 8 (32/64 Bit), Windows 8.1 (32/64 Bit).
