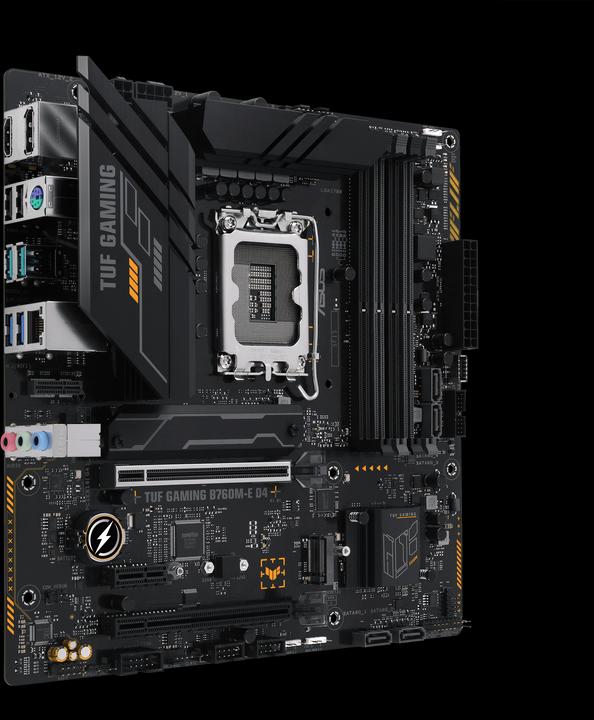

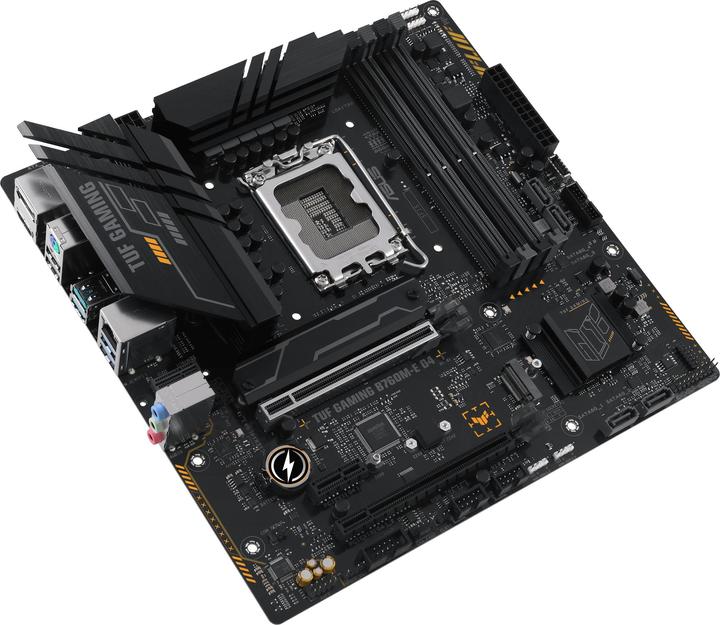

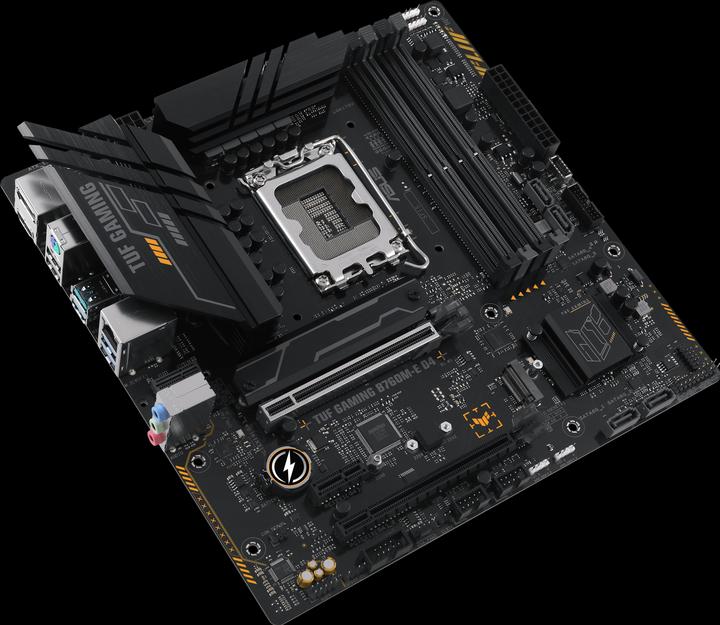

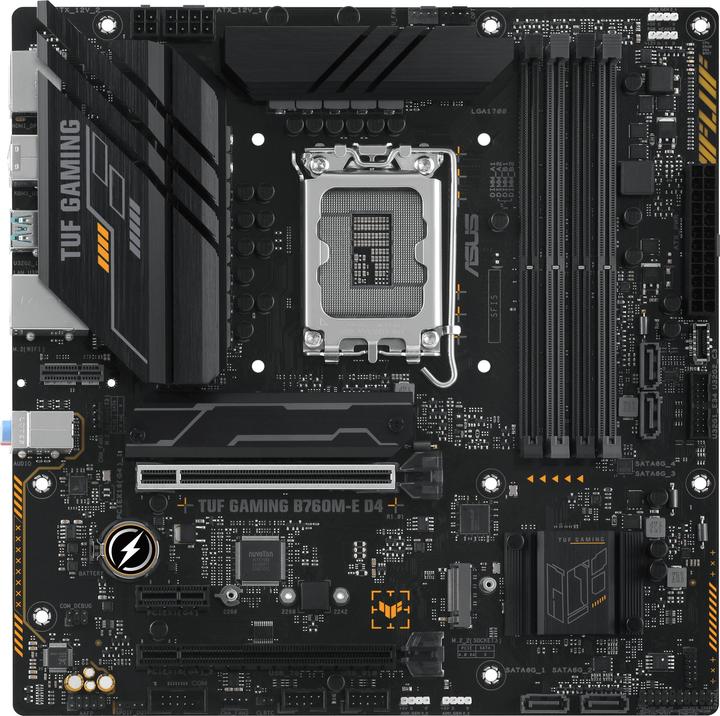

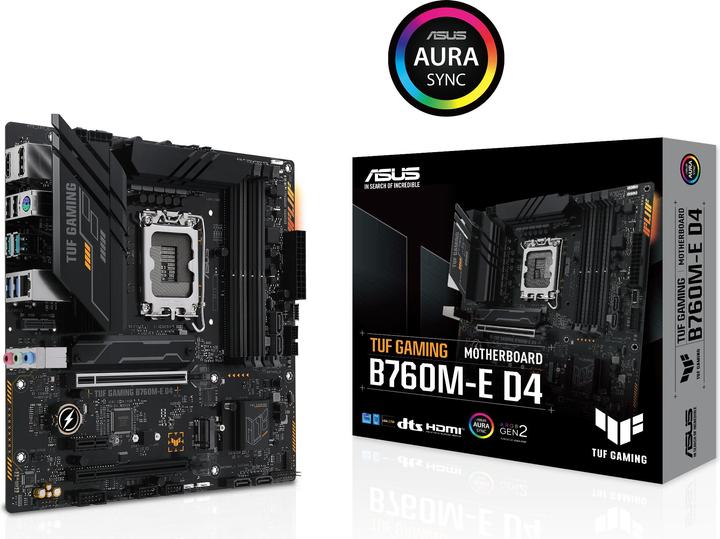

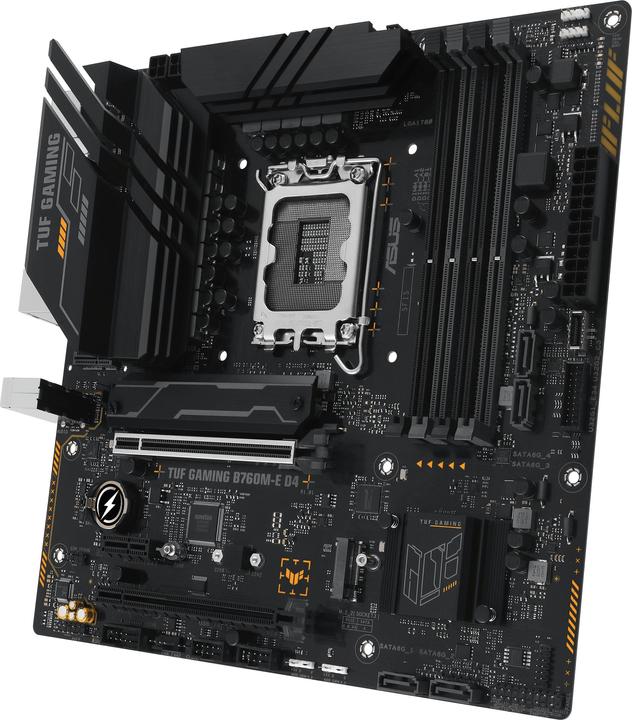

ASUS TUF GAMING B760M-E D4
LGA 1700, Intel B760, mATXProduct details
The TUF Gaming B760M-E D4 utilizes all the essential elements of the latest Intel processors and combines them with gaming-ready features and proven durability. This motherboard is equipped with military-grade components, an enhanced power solution, and a comprehensive cooling system, exceeding all expectations with absolutely solid performance for marathon gaming. TUF Gaming motherboards also undergo rigorous endurance testing to ensure they can handle conditions where others might fail. Aesthetically, this model features an embossed nameplate and geometric design elements to reflect the reliability and stability that characterize the TUF Gaming series.
Mainboard features | Front panel audio connector, RGB header, S/PDIF header |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Number of memory modules (RAM) | 4x |
Memory type | DDR4-RAM |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Item number | 25133935 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1E90-M0EAY0 |
Release date | 2.3.2023 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector, RGB header, S/PDIF header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 5333 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

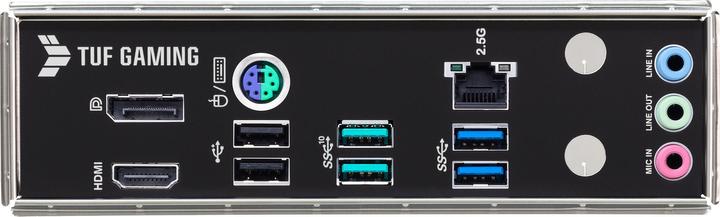

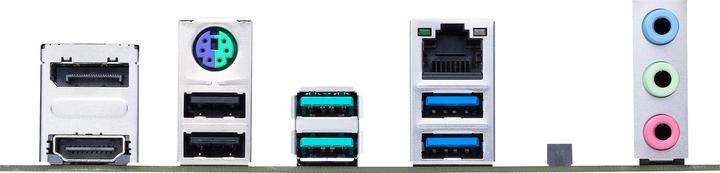

Video connections | DisplayPort, HDMI Type A |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 Gigabit Ethernet (1x) |
Max. port speed | 2.50 Gbit/s |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (2x) |
PCI express version (max.) | 4 |
Number of fan connector | 2 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 8-pin PCI-E |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |

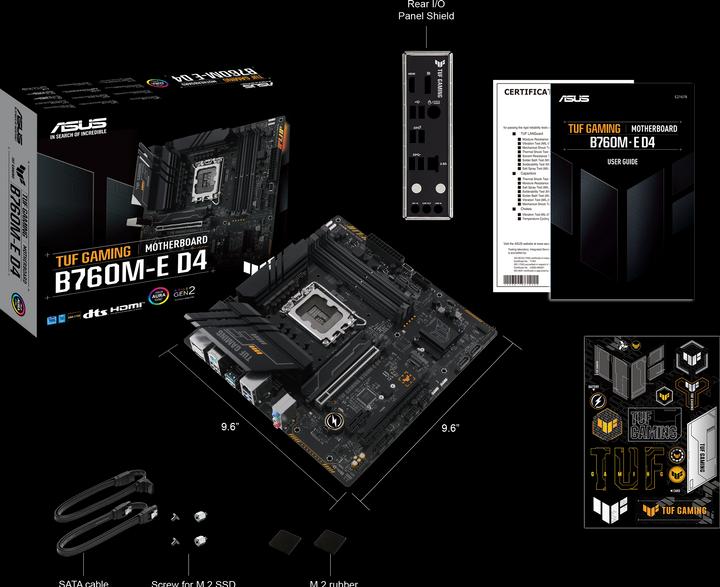

Scope of delivery | Manual |
Length | 244 mm |
Width | 244 mm |
Height | 68 mm |
Weight | 1290 g |
Product Safety |
Length | 28.40 cm |
Width | 27.10 cm |
Height | 7.40 cm |
Weight | 1.31 kg |
