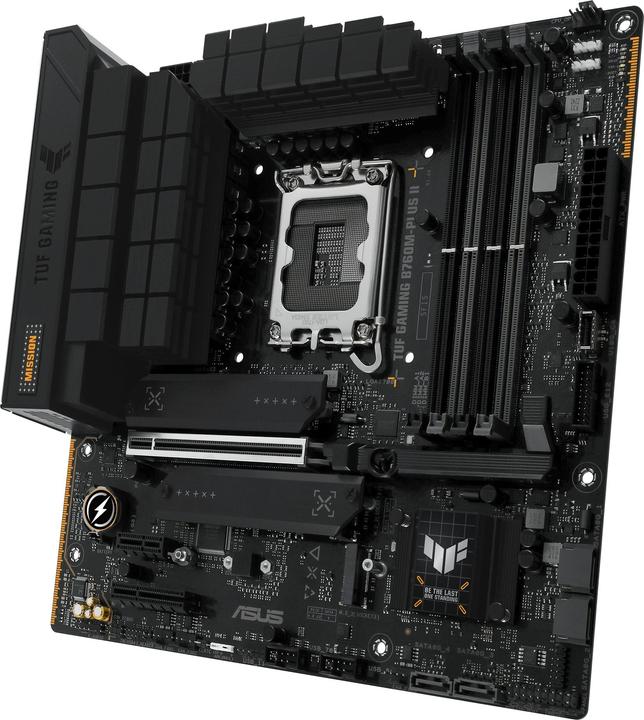

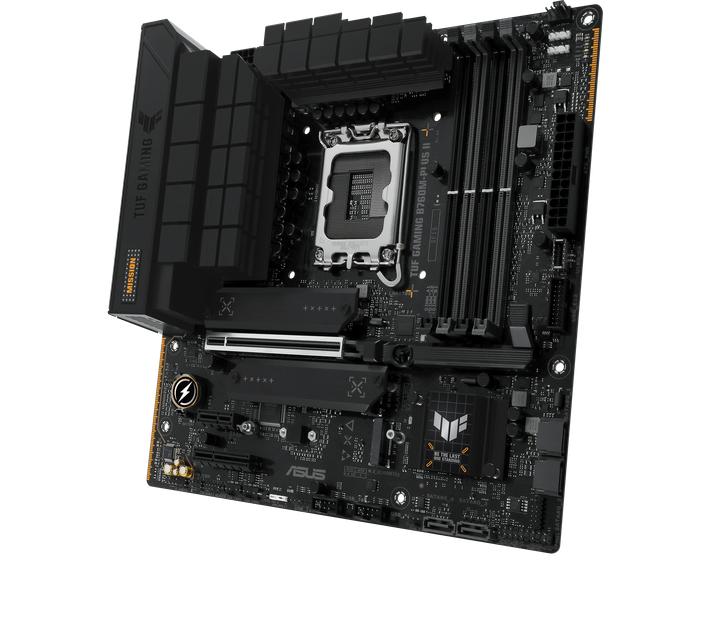

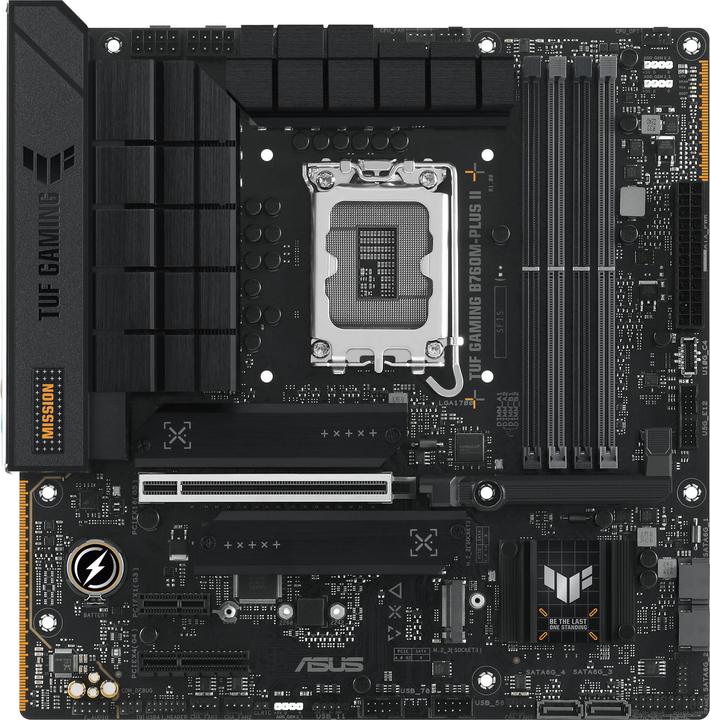

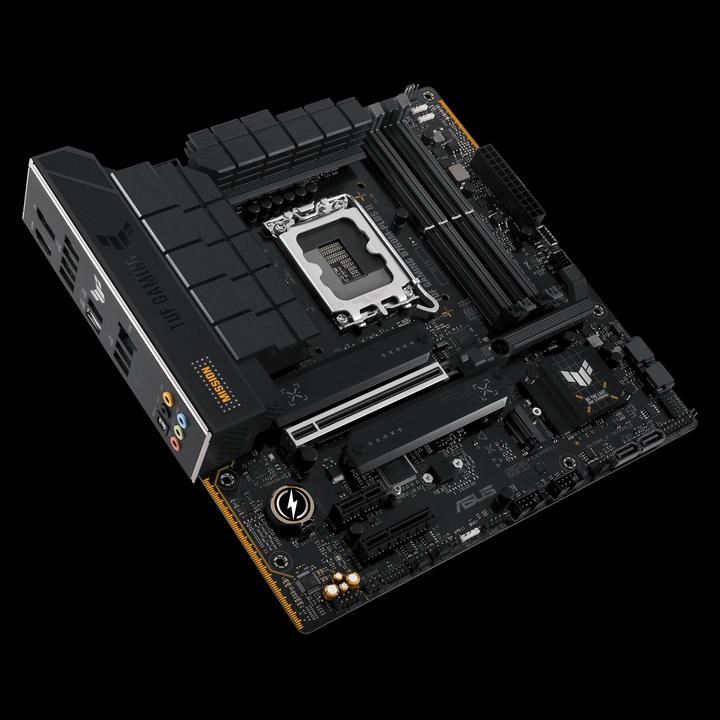

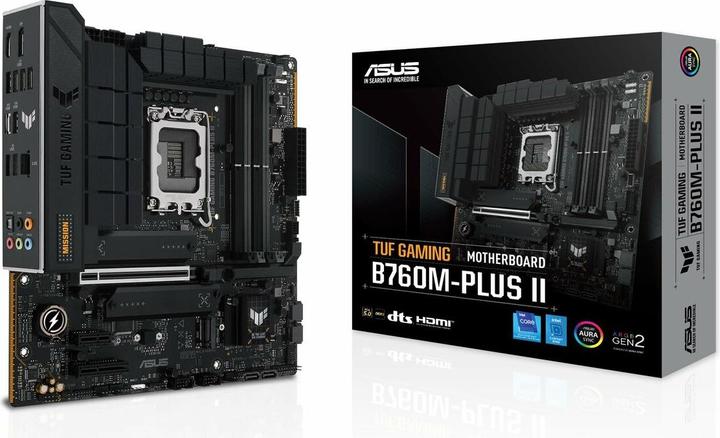

ASUS TUF GAMING B760M-PLUS II

LGA 1700, Intel B760, mATX
Price in EUR including VAT
Ratings
Delivered between Tue, 1.7. and Thu, 3.7.
8 items in stock at supplier
free shipping

Product details

TUF Gaming B760M-Plus II

The TUF Gaming B760M-Plus II combines all the essential elements of the latest Intel processors with gaming-ready features and proven durability. With military-grade components, an enhanced power solution, and a comprehensive cooling system, this motherboard exceeds all expectations and delivers rock-solid performance for marathon gaming sessions. TUF Gaming motherboards also undergo rigorous stress testing to ensure they can withstand conditions where others might fail. Aesthetically, this model is equipped with an embossed nameplate and geometric design elements that reflect the reliability and stability of the TUF Gaming series.

Intelligent Control

The TUF Gaming B760M motherboards offer flexible tools to optimize every aspect of your system and enhance performance to match your gaming style.

All-Around Energy Efficiency

The energy-saving feature includes several settings that allow you to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, dim the Aura lighting, and set the fan profile to a power-saving mode. You can also switch the power plan integrated into Microsoft Windows.

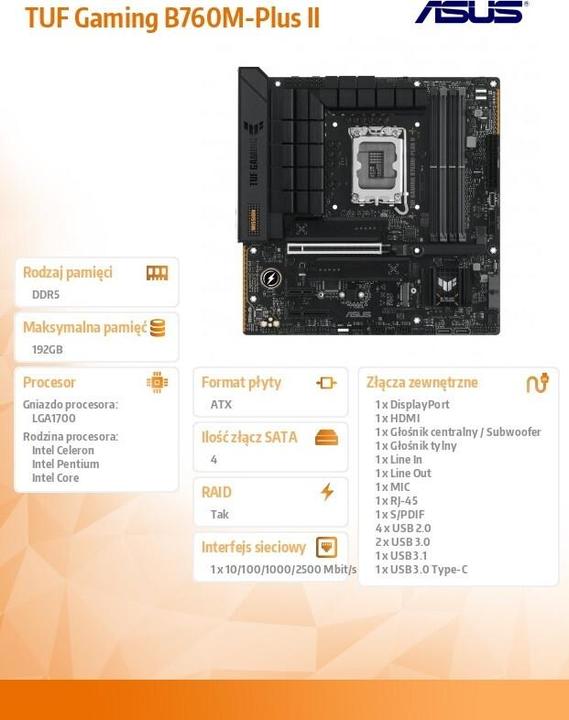

Key specifications

Processor family
Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 (3x), S-ATA III (4x)
Mainboard features
Clear CMOS Button, Front panel audio connector, Thunderbolt header
Item number
41458630

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1HD0-M0EAY0
Release date
3.1.2024

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1700
Chipset
Intel B760
Mainboard features
Clear CMOS Button, Front panel audio connector, Thunderbolt header
Operating system compatibility
Windows 10, Windows 11 Home
BIOS type
UEFI AMI

Processor

Processor family
Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
192 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
7200 MHz
Supported memory speed
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz, 7600 MHz, 7800 MHz
Transfer rate
6800 MT/s
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Ethernet controller
Gigabit Ethernet
Max. port speed
2.50 Gbit/s

Audio

Audio channel
7.1 Channel

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
M.2 (3x), S-ATA III (4x)
Expansion slot
PCI Express x1 (1x), PCI Express x16 (1x), PCI Express x4 (1x)
PCI express version (max.)
5
Number of fan connector
3

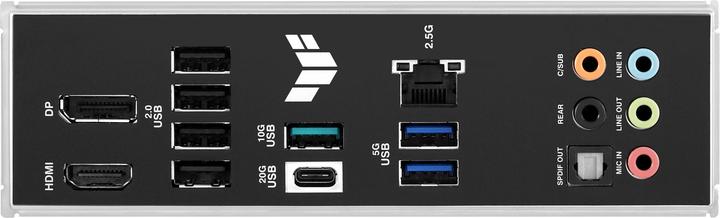

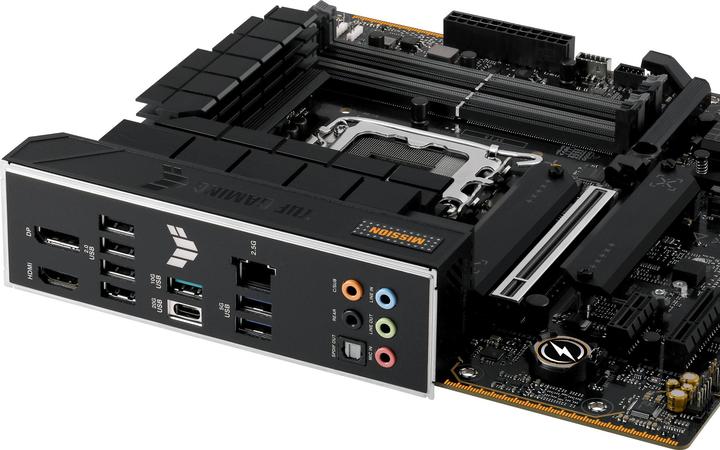

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 3.0 (3x)

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

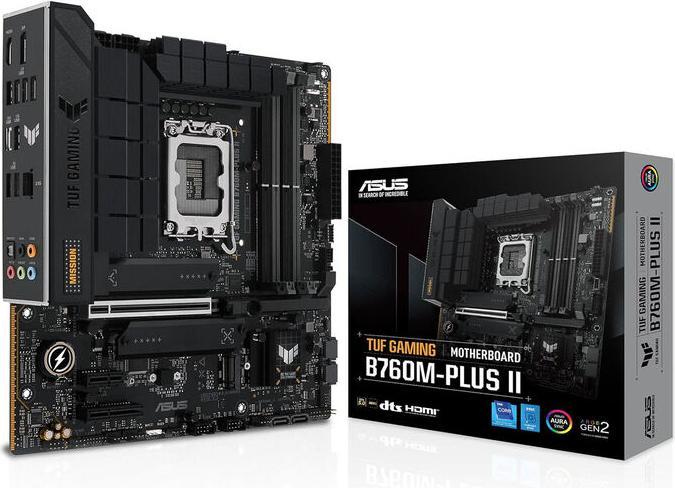

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
244 mm
Width
244 mm
Height
50 mm
Weight
982 g

Package dimensions

Length
27.10 cm
Width
26.50 cm
Height
13.20 cm
Weight
1.44 kg
