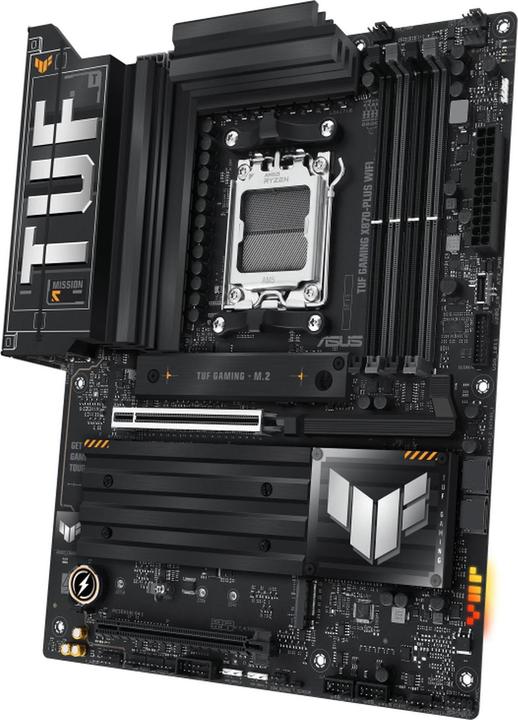

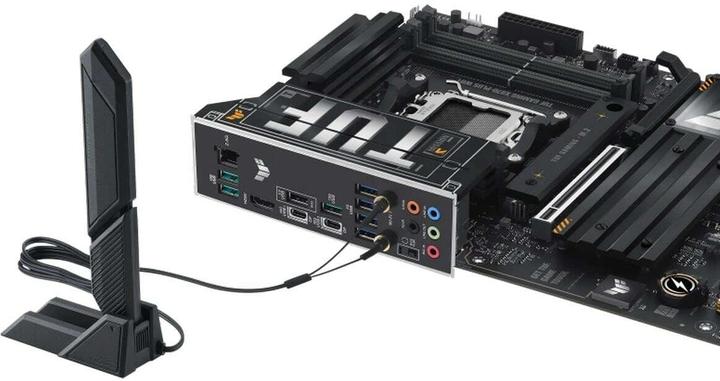

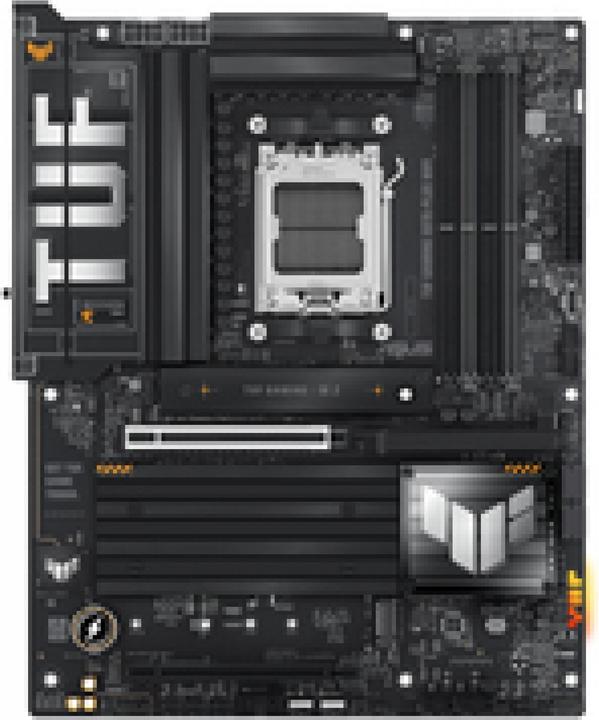

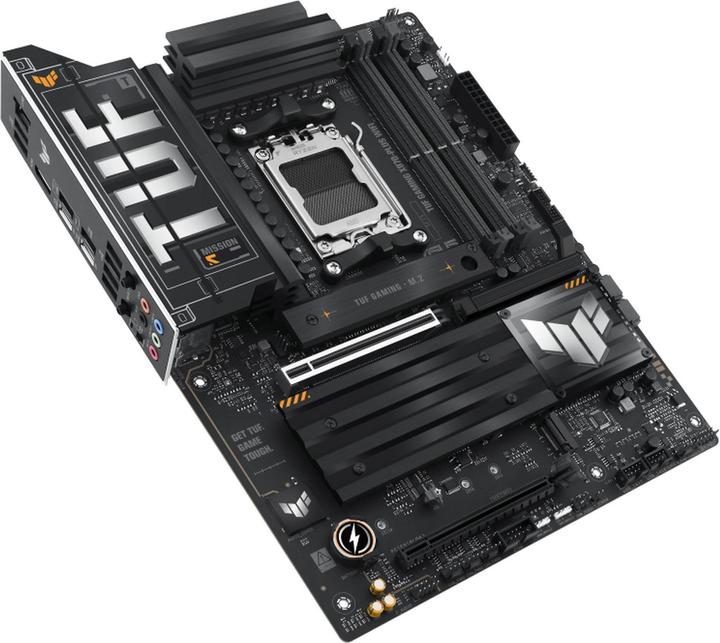

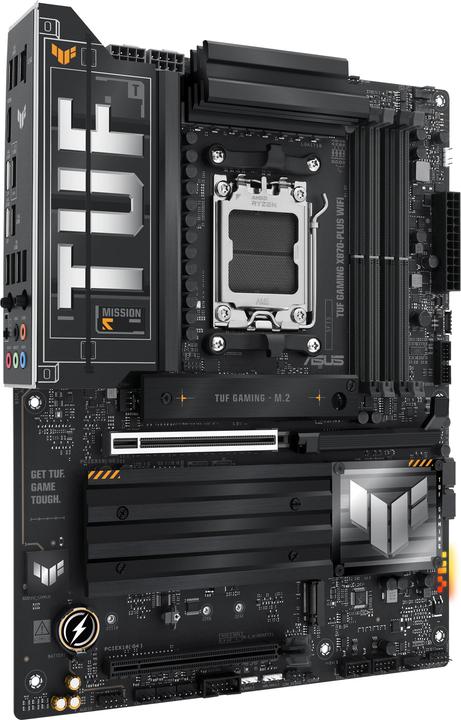

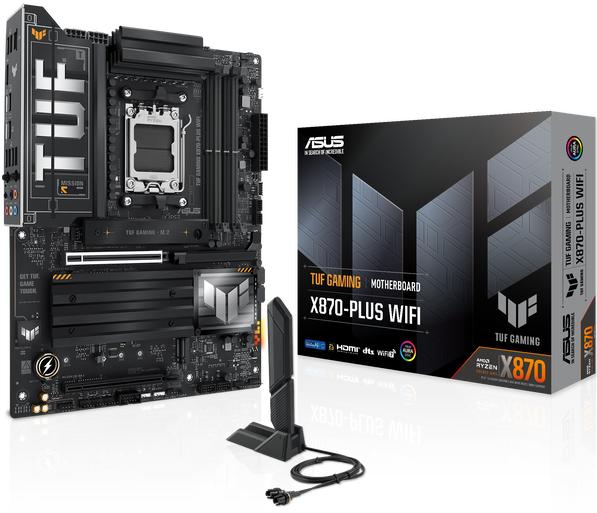

The ASUS TUF GAMING X870-PLUS WIFI is based on the AMD X870 chipset and supports AMD processors for the AM5 socket. It features four DDR5 slots for up to 192 GB of RAM. Additional specifications include a PCIe 5.0 x16 slot and a PCIe 4.0 x16 slot (x4 lanes). The ASUS TUF GAMING X870-PLUS WIFI also offers 8-channel audio, a 2.5 Gigabit LAN interface, WiFi 7, Bluetooth 5.4, four SATA3 ports, four M.2 slots, and a variety of USB interfaces.
Mainboard features | Serial header |
Wireless transmission | Bluetooth, Wi-Fi |
Number of memory modules (RAM) | 4x |
Memory type | DDR5 RAM |
Internal connection options | M.2 PCIe (4x), S-ATA III (2x) |
Item number | 49774829 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1IU0-M0EAY0 |
Release date | 2.9.2024 |
Sales rank in Category Motherboards | 160 of 954 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD X870 |
Mainboard features | Serial header |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 192 GB |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

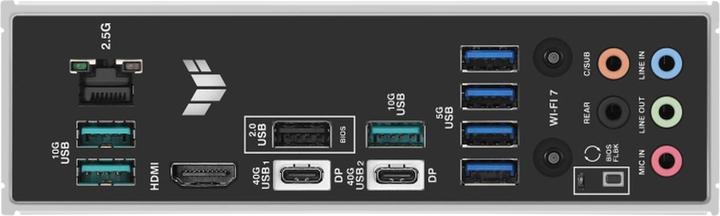

Video connections | 2 x USB-C, HDMI (1x) |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1220P |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 PCIe (4x), S-ATA III (2x) |
Expansion slot | PCI Express x16 (3x) |
PCI express version (max.) | 5 |
Number of fan connector | 4 |
USB ports | USB-A |
Power connectors | 24-pin ATX, 2x 8-pin ATX 12V |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | 732,92 kg |
Climate contribution | EUR 13,20 |
Scope of delivery | 2 x Serial ATA cable |
Length | 244 mm |
Width | 305 mm |
Product Safety |
Length | 40 cm |
Width | 35 cm |
Height | 25 cm |
Weight | 1.95 kg |
