ASUS Ws C621e Sage
LGA 3647, Intel C621, SSI EEBProduct details

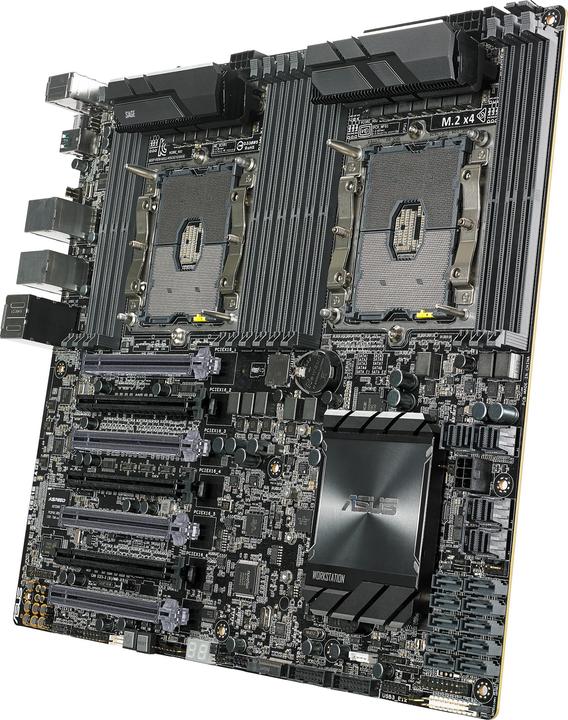

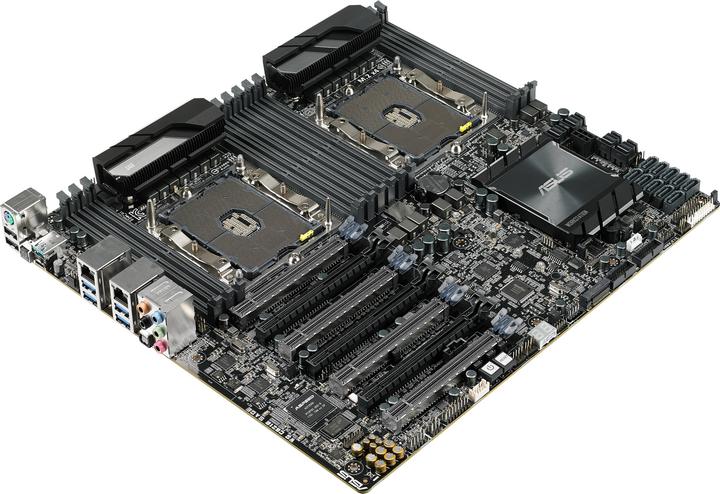

The Asus Server Board WS C621E SAGE supports two Intel Xeon processors from the Bronze, Silver, Gold, and Platinum series, as well as up to 768 GB of DDR4 memory across 12 memory slots. Additional features of the Asus WS C621E SAGE include three PCIe 3.0 x16 slots, four PCIe 3.0 x8 slots, and two Gigabit network ports. For connecting storage devices, there are ten RAID-capable SATA3 interfaces, four U.2 interfaces, and one M.2 interface available.
Processor family | Xeon |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 12 x |
Internal connection options | S-ATA III (8x) |
Mainboard features | Front panel audio connector |
Item number | 7515731 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90SW0020-M0EAY0 |
Release date | 15.1.2019 |
Sales rank in Category Motherboards | 328 of 886 |
External links |
Form factor | SSI EEB |
Socket | LGA 3647 |
Chipset | Intel C621 |
Mainboard features | Front panel audio connector |
Processor family | Xeon |
Memory form factor | DIMM |
Number of pins | 240 x |
Number of memory modules (RAM) | 12 x |
Max. memory (RAM) | 1536 GB |
Memory chip | DDR4-2400 |
Max. RAM OC | 2666 MHz |
Supported memory speed | 2400 MHz, 2666 MHz |
Memory type | DDR4-RAM |
RAM buffer | Registered |
Video connections | D-Sub (1x) |
Multi-GPU technology | AMD Quad-GPU CrossFireX, NVIDIA Quad SLI |
Network connections | RJ45 (2x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I210-AT |
Max. port speed | 1 Gbit/s |
Chip | Realtek S1220A |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (5x), Optical TOSLINK (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (8x) |
Expansion slot | PCI Express x16 (7x) |
PCI express version (max.) | 3 |
Number of fan connector | 7 |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 1 (4x), USB-C 3.2 Gen 2 (1x) |
Power connectors | 24-pin ATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | ASUS Control Center |
Length | 330 mm |
Width | 305 mm |
Height | 366 mm |
Weight | 2400 g |
Length | 41 cm |
Width | 10.30 cm |
Height | 37 cm |
Weight | 3.72 kg |
