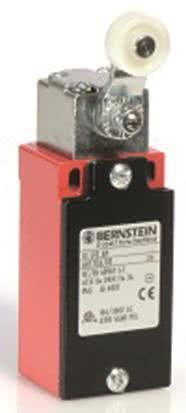

Bernstein Limit Switch GC-SU1Z AH

Manufacturer: Bernstein
Designation: Limit Switch
Type: GC-SU1Z AH
Sensor Width: 36 mm
Sensor Height: 33 mm
Sensor Length: 118.5 mm
Rated Operating Current at AC-15, 230 V: 3 A
Switching Function: Snap Action
Latching Switching Function: No
Electronic Output: No
Forced Opening: Yes
Number of Safety-Related Auxiliary Contacts: 1
Number of Contacts as Normally Open: 1
Number of Contacts as Normally Closed: 1
Interface Design: None
Interface Design for Safety-Related Communication: None
Housing Design: Rectangular
Housing Material: Metal
Housing Coating: Powder Coated
Actuating Element Design: Pivot Lever
Actuating Element Orientation: Other
Electrical Connection Design: Cable Entry (Metric)
With Status Indicator: No
Suitable for Safety Functions: Yes
Explosion Protection Category for Gas: None
Explosion Protection Category for Dust: None
Ambient Temperature during Operation: -30 to 80 °C
Protection Class (IP): IP65
Protection Class (NEMA): 4X

The metal-encapsulated limit switch is suitable for almost any application in the field of safety applications and position detection due to its compact design. The switch offers various mounting advantages, such as screw connections with self-lifting clamping disks, captive cover screws, and an easily replaceable switching system with a latching mechanism. Optional versions with custom cables and connectors are also available.
