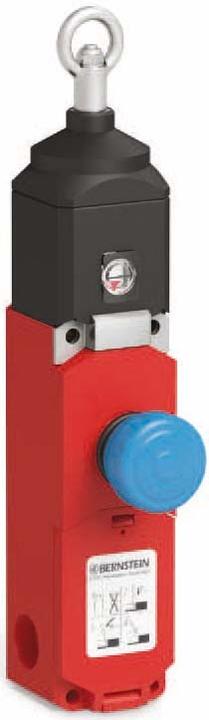

Bernstein Cable Pull Switch SRU2Z0-LU-300-L0-0-0

Manufacturer: Bernstein
Description: Cable pull switch including reset button
Type: SRU2Z0-LU-300-L0-0-0
Number of contacts as normally closed: 2
Number of contacts as normally open: 2
Number of actuation directions: 2
With tension force display: no
Max. length of pull cord: 75 m
Color: red
Ambient temperature: -25..70 °C
Protection class (IP): IP67
Protection class (NEMA): other

Further details:
Cable pull switch according to EN ISO 13850 with plastic housing. Bernstein's safety cable pull switches allow for safe monitoring of processes over a larger area, such as on conveyor belts. The emergency stop function can be triggered along the entire length of the cable. The devices feature a mushroom push button with dual function: one for releasing the pull and the other for an optionally integrated emergency stop button. With the optional Quick-Fix quick clamping device, installation time is drastically reduced. Thanks to the possibility of remote monitoring of cable tension, downtime is a thing of the past. Steel cables with red plastic sheathing in various lengths, along with corresponding mounting accessories, are available as accessories.
EAN: 4024337085291.
