Series: 616
Number and Position of Contacts: 3-pole Normally Closed
Contact Configuration: 2 Normally Closed / 1 Normally Open
Contact Operation: Pushbutton
Cover: Yes
Number of Pedals: 1
Supply Voltage: 240 V AC
Protection Class: IP65
Housing Material: Aluminum
Housing Color: Red
Dimensions: 250 x 156 x 146 mm

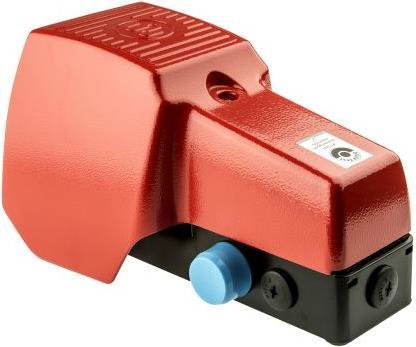

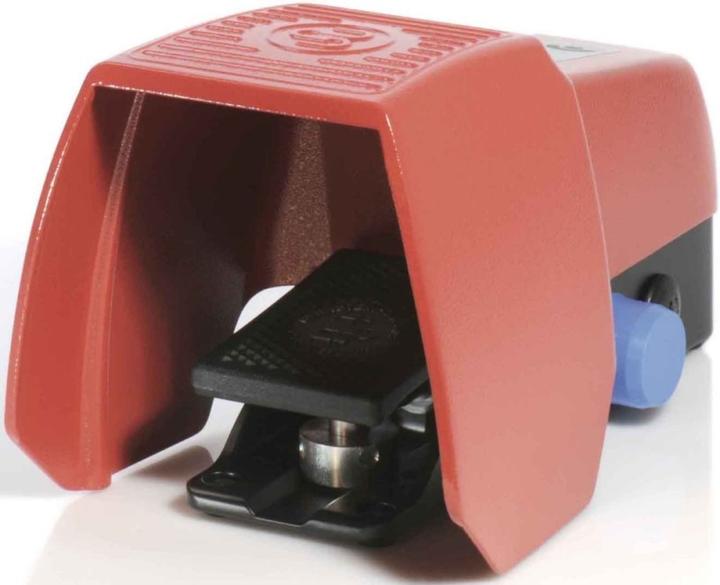

Series 616 - Safety Foot Switch. Safety latching with manual release. Metal encapsulated housing with aluminum accident protection cover. Protection class IP 65. Cable entry M20x1.5.

Function Description:
1. Pressing the pedal to the pressure point: The working contact is closed, initiating the working process.
2. In an emergency situation, pressing beyond the resistance of the pressure point: The working contact is interrupted and locked, stopping the working process. Even if the pedal is not pressed, the locking remains in the off position during this phase. This effectively prevents uncontrolled restarting or a new start of moving machine parts.
3. Unlocking: Only after the hazardous situation has been resolved can a manual release (push button on the side of the housing) free the contacts, allowing the working process to be reinitiated by pressing the pedal to the pressure point.
