Bernstein Safety Switch SIEK-UV1Z

Manufacturer: Bernstein
Designation: Safety Switch
Type: SIEK-UV1Z
Width of the sensor: 40 mm
Height of the sensor: 40 mm
Length of the sensor: 122.5 mm
Switching function: Slow-action switch with overlap
Electronic output: no
Forced opening: yes
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Interface design: none
Interface design for safety-related communication: none
Housing design: Rectangular
Material of the housing: Plastic
Design of the actuating element: other
Orientation of the actuating element: other
Design of the electrical connection: Cable entry (metric)
With status indication: no
Suitable for safety functions: yes
Explosion protection category for gas: none
Explosion protection category for dust: none
Ambient temperature during operation: -30..80 °C
Protection class (IP): IP65

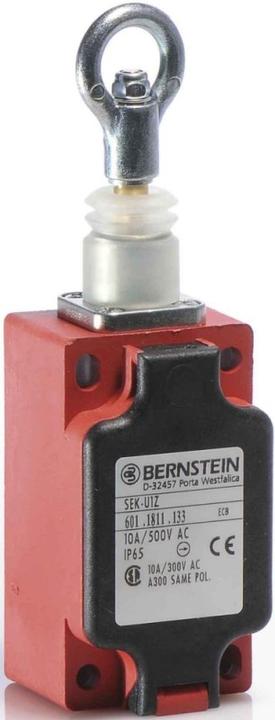

Standard rope pull switches are only usable as command devices due to normative requirements. Products are available in metal and insulated encapsulated housings. Actuation is performed manually by pulling on the attached rope. The standard rope pull switches are based on the basic design of position switches.
