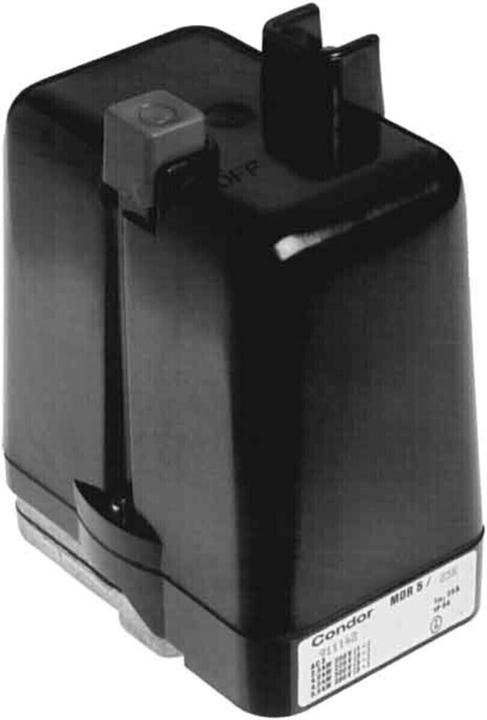

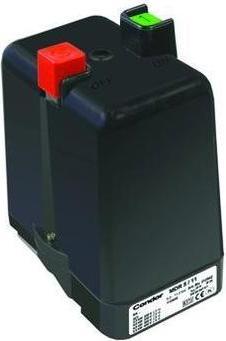

The MDR 5/11-K pressure switch from Condor Werke is a highly advanced device designed for use in three-phase applications. With a switching capacity of 5.5 kW and a 3-pole normally open configuration, this pressure switch meets the requirements of EN 60947. It is designed for a pressure range of 2 to 11 bar and is ideal for various industrial applications where precise pressure control is required. The pressure switch is not only robust but also user-friendly, as it is equipped with a manual on/off switch. To ensure functionality, the use of a separate thermal overload relay is necessary. The MDR 5/11-K also offers a protection rating of IP54, which protects it from dust and splashes, and is suitable for operation in a temperature range of -5 to 80 °C.

• Three-phase version with 5.5 kW switching capacity
• 3-pole normally open according to EN 60947
• Pressure range of 2 to 11 bar
• Manual on/off switch included
• Protection rating IP54 for increased robustness.
