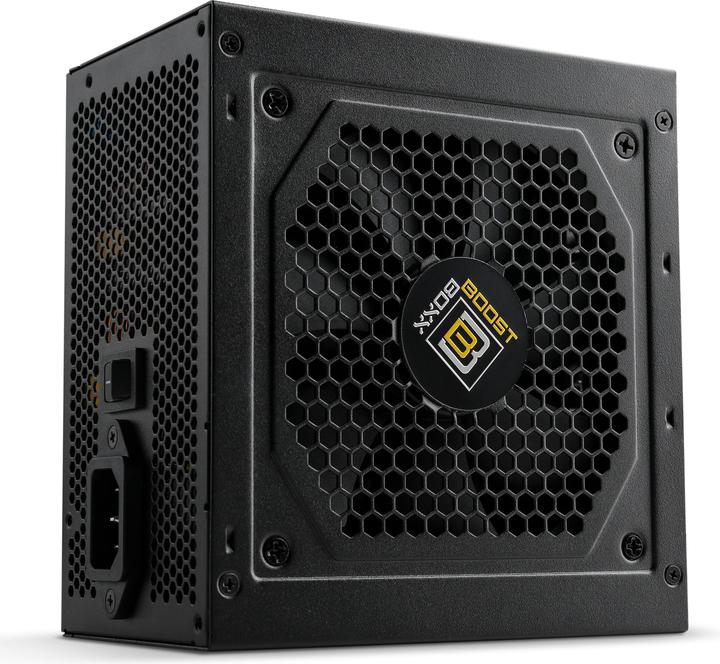

The fully modular BoostBoxx PB850M 80+ Gold power supply impresses with excellent energy efficiency, highly precise voltage regulation, numerous connection options for installed hardware, and very quiet operation. This 850-watt power supply uses only high-quality components and parts to achieve a very high efficiency with 80PLUS Gold certification (averaging over 90%). It is therefore ideally suited for powering high-performance multimedia and gaming systems.

Thanks to the modular cable management, only the necessary component cables are used. This allows for organized cable management and a cleanly structured interior of the system. Air circulation within the PC can occur without obstruction, ensuring optimized heat dissipation. A powerful, very quiet 120mm fan provides good warm air exhaust and effective cooling of the components.

Technical Specifications

Model: BoostBoxx Power Boost 850M 80+ Gold Edition

Continuous Power: 850 Watts

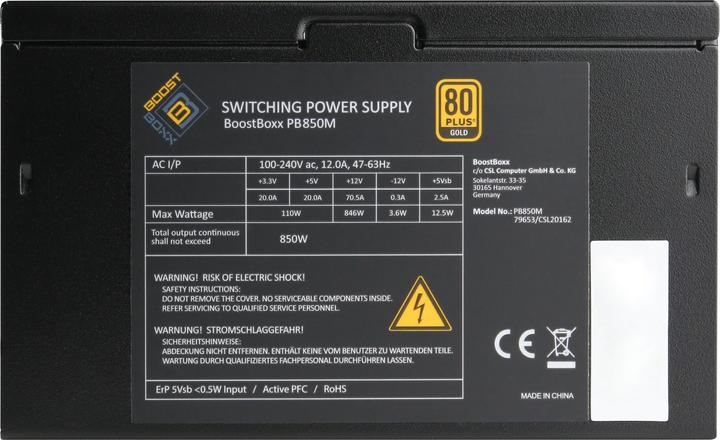

Specification: 100-240V, 9A, 47-63Hz

Active PFC: ATX12V

Fan: 120mm

Protection Features: Overcurrent (OCP), Overvoltage (OVP), Undervoltage (UVP), Short Circuit (SCP), Overheating (OTP), Overload (OPP)

Energy Efficiency: 80PLUS Gold Certification

Load: Efficiency
10%: 87.93%
20%: 91.15%
50%: 91.22%
100%: 87.81%

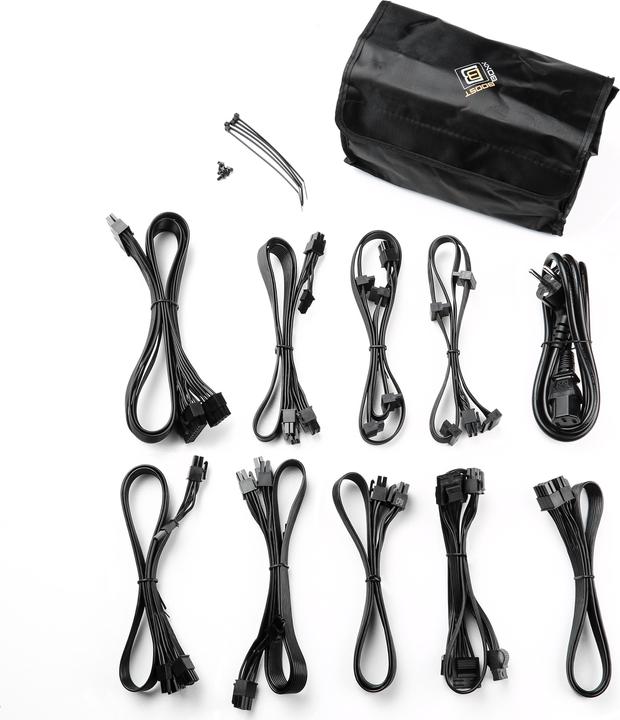

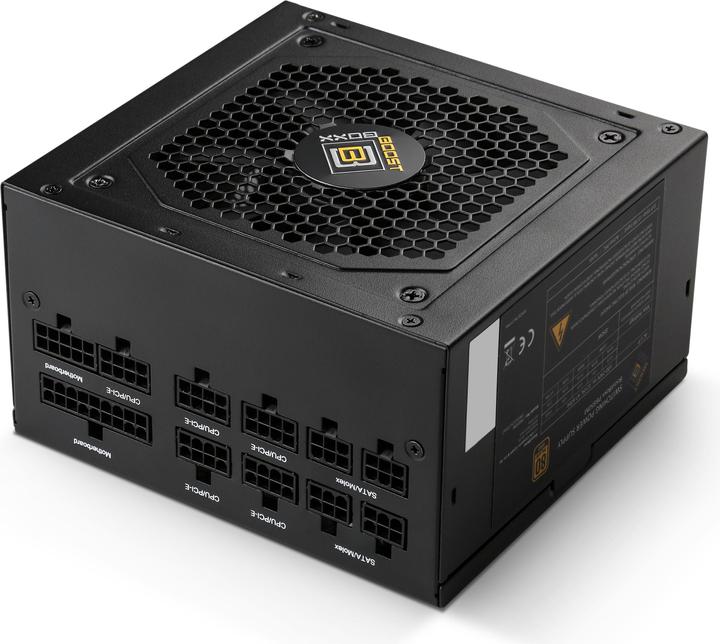

Connections: Fully modular cable management, 9 black sleeved cables
1x ATX motherboard (20+4 pin)
1x CPU (4+4 pin)
6 × PCIe (6+2 pin / GPU)
4 × Molex (4 pin / HDD, drives)
8 × SATA (15 pin / SSD, HDD, drives)

Dimensions: 140×150×86 mm, approx. 1.75 kg

Certification: 80PLUS Gold Certification, FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TÜV, CB, CU, KC Mark, RoHS, WEEE.
