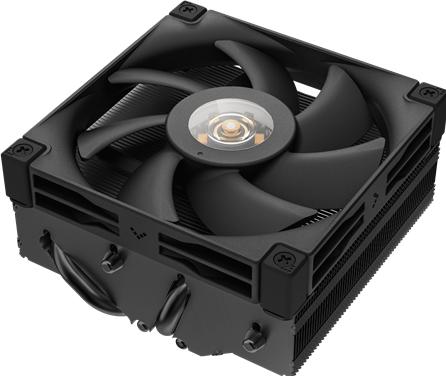

AN400 BK
The AN400 BK is a flat air cooler with 4 heat pipes that offers a TDP of 150 W in a compact heatsink. With unobstructed space for RAM modules and a top-down airflow, the AN400 is an excellent choice for everything from small ITX builds to larger systems.
Compact and feature-rich
With 62 nickel-plated aluminum fins, 4 optimized heat pipes, and an enlarged copper cooling plate, the AN400 BK provides significant cooling potential in a CPU cooler that is only 53 mm tall.
Small but powerful
Equipped with a sleek 92 mm PWM-capable FDB fan featuring a visible 6-phase motor, the AN400 BK can spin up to an impressive 2950 RPM while remaining below 23.2 dB(A). A noise-reducing adapter cable is included.
Passive air circulation
The top-down design has the added benefit of providing passive air circulation to the surrounding VRMs around the CPU.
Simplified support
The fully metal backplate is easy to install and evenly distributes pressure from the back of the motherboard while providing additional stability behind the CPU socket.
Socket | AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1200, LGA 1700 |
Diameter | 92 mm |
Number of fans | 1x |
Max. TDP | 150 W |
Airflow | 52.97 m³/h |
power connector | 4-pin |
Height (with fan) | 52.50 mm |
Item number | 52272300 |
Manufacturer | Deepcool |
Category | CPU coolers |
Manufacturer no. | R-AN400-BKWNMN-G |
Release date | 17.10.2024 |
Sales rank in Category CPU coolers | 87 of 1036 |
Colour | Black |
Exact colour description | Black |
CPU cooler design | Top Blower |
Fan type | Standard |
Socket | AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1200, LGA 1700 |
Cooler mounting | Screw |
Supported fan sizes | 92mm |
Number of heatpipes | 4 |
Diameter heat pipe | 4 mm |
Materials radiator core | Copper |
Material cooling fins | Aluminium |
Diameter | 92 mm |
Number of fans | 1x |
Max. Speed | 2950 RPM |
Max. TDP | 150 W |
Airflow | 52.97 m³/h |
Static pressure | 47.07 Pa |
Max. noise level | 23.20 dB |
LED colour | White |
Fan bearing type | Fluid Dynamic bearing |
power connector | 4-pin |
Power consumption | 5.40 W |
Voltage | 12 V |
Scope of delivery | Installation kit, Screws |
CO₂ emissions | 62,23 kg |
Climate contribution | EUR 1,55 |
Width (with fan) | 92 mm |
Length (with fan) | 92 mm |
Height (with fan) | 52.50 mm |
Weight | 431.40 g |
Product Safety |
Length | 14 cm |
Width | 12 cm |
Height | 9 cm |
Weight | 590 g |
How often does a product of this brand in the «CPU coolers» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «CPU coolers» category returned?
Source: Galaxus
The cooling performance and noise level of the AN400 BK are in the lower mid-range, the price is pretty much in the middle. On the other hand, DeepCool sets a visual accent with the white LED embedded in the fan hub: it glows like the small arc reactors in Tony Stark's Iron Man suits...
