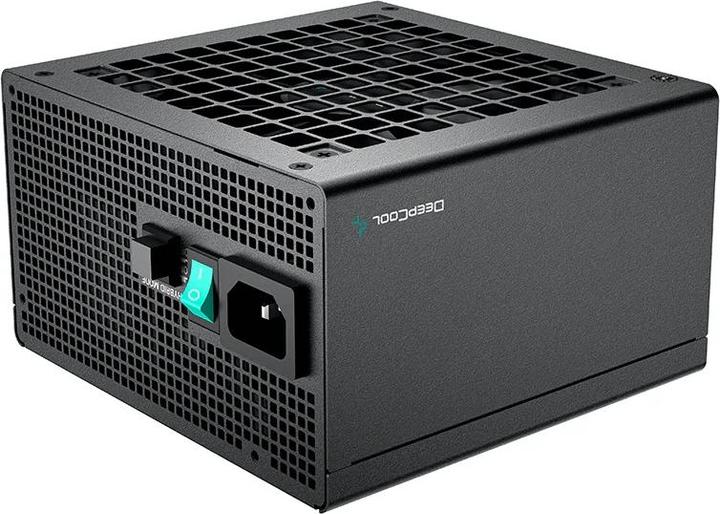

PQ1000M 1000W PC power supply

The modular power supply of the DeepCool PQ-M series with 80 PLUS Gold represents another generation of power supply and is characterized by quiet operation with high efficiency and stability for powerful PCs. Certified according to 80 PLUS Gold for the generation of environmentally friendly and even power while reducing waste heat and noise. The PQ-M series achieves an efficiency of 90% at 50% system load.

Type: PC power supply
Color: Black
Performance: Total | 1000W
Power: +12V total | 996W
Power: +3.3V/+5V total | 125W
Performance: Efficiency | up to 90%
Performance: Input voltage range | 100-240 volts
Power: Input current | 6.5 A at 230 volts / 50 Hz, 13 A at 110 volts / 60 Hz
Default: ATX12V 2.4
Design: ATX
Certification: 80 PLUS Gold
Amperages: +3.3 V | 25A
Amperages: +5 V | 25A
Currents: +5 Vsb | 3 A
Amperages: -12 V | 0.3A
Amperages: +12 V total | 83 A
Amperages: +12 V1 | 83 A
Power Factor Correction: Active PFC
Switch: 1x power switch
Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 5x 4-pin 5.25", 3x 6+2-pin graphics, 10x 15-pin SATA
Cables: Cable Management | Yes
Cooling: Number of fans | 1x 120mm fan
Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Overload Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP)
Dimensions: Width: 150mm x Height: 86mm x Depth/Length: 140mm.
