Main Features

Power

• Total power: 1000 W
• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
• Input current: 13 - 6.5 A
• Power factor correction filter (PFC): Active

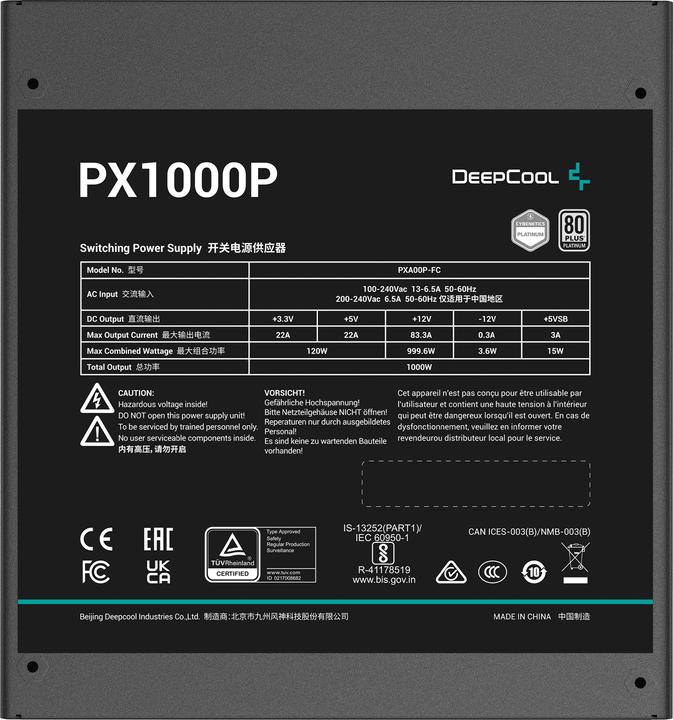

Combined Output

• (+3.3V): 120 W
• (+12V): 999.6 W
• (+5V): 120 W
• (-12V): 3.6 W
• (+5Vsb): 15 W

Max. Output Current

• (+3.3V): 22 A
• (+12V): 83.3 A
• (+5V): 22 A
• (-12V): 0.3 A
• (+5Vsb): 3 A

Hold-up Time: 16 ms
Efficiency: 92%
Power Good Signal Delay Range: 100 - 150 ms

Energy Protection Features

• No load operation
• Overcurrent
• Overload
• Overvoltage
• Overheating
• Surge & inrush protection (SIP)
• Overvoltage protection
• Undervoltage

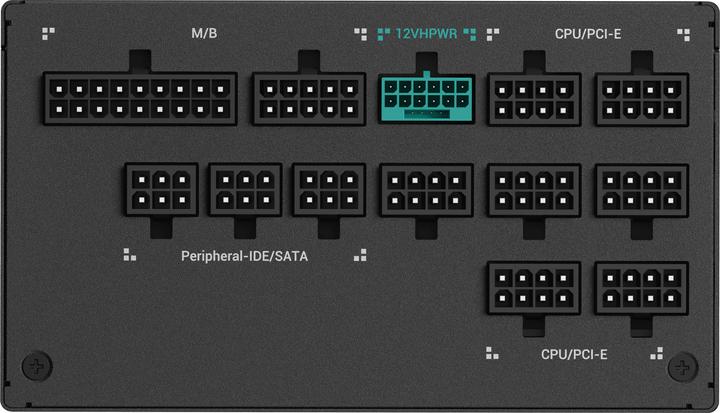

Connections and Interfaces

• Motherboard connector: 20+4 pin ATX
• Number of Molex connectors: 4-pin: 4
• Cable length to motherboard: 60 cm
• Number of SATA power connectors: 8
• SATA power cable length: 500, 650, 800, 950 mm
• Peripheral (Molex) power cable length: 500, 650, 800, 950 mm
• Number of PCI Express power connectors: 6+2 pin: 5
• PCI Express power connectors (16-pin): 1
• CPU connector (4+4 pin): Yes
• ATX power connector (20+4 pin): Yes
• Cable type: Fully modular

Specifications

• Purpose: PC Power Supply Unit (PSU)
• Form factor: ATX
• 80 Plus certification: 80 PLUS Platinum
• Supported motherboard form factors: ATX
• ATX version: 3.0
• Bearing type: FDB
• Mean Time Between Failures (MTBF): 100000 h
• Certification: CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/TUV-RH
• Country of origin: China
• Product color design: Black
• Cooling: Active

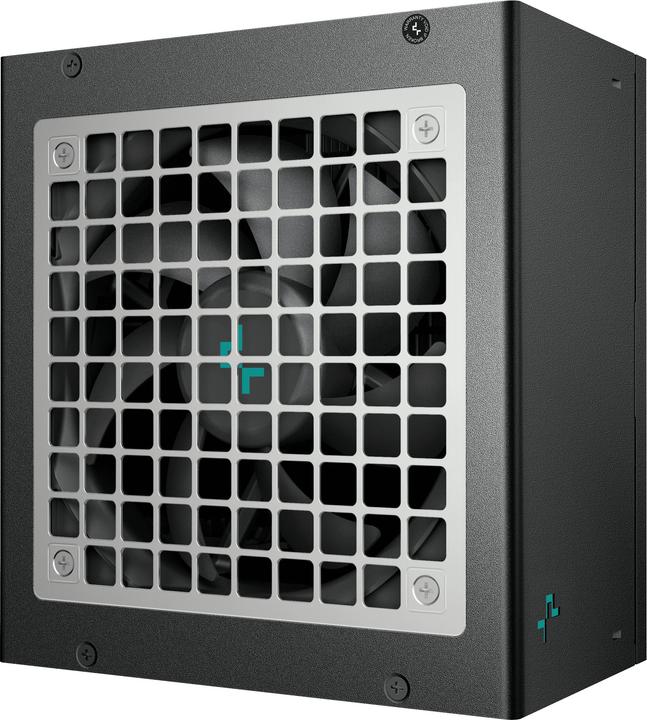

• Fan diameter: 12 cm
• Number of fans: 1
• Fan placement: Top

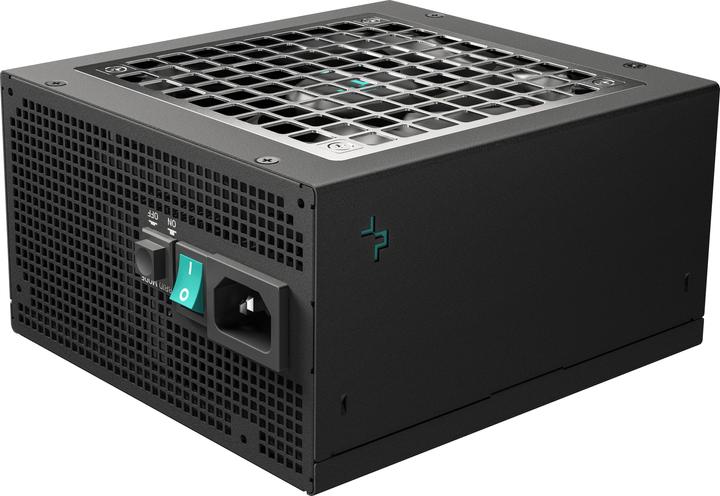

• Power switch: Yes

Operating Conditions

• Operating temperature: 0 - 50 °C

Package Contents

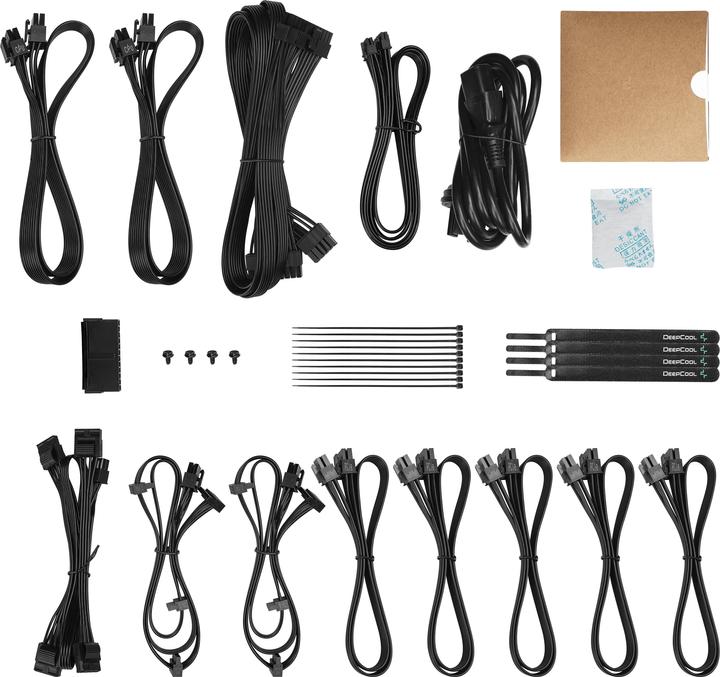

• Included cables: PCIe, Peripheral (Molex), SATA

Weight and Dimensions

• Width: 150 mm
• Depth: 160 mm
• Height: 86 mm

Packaging Data

• Packaging type: Box

Technical Details

• Sustainability compliance: Yes
• Sustainability certifications: ErP, RoHS, Triman, WEEE.
