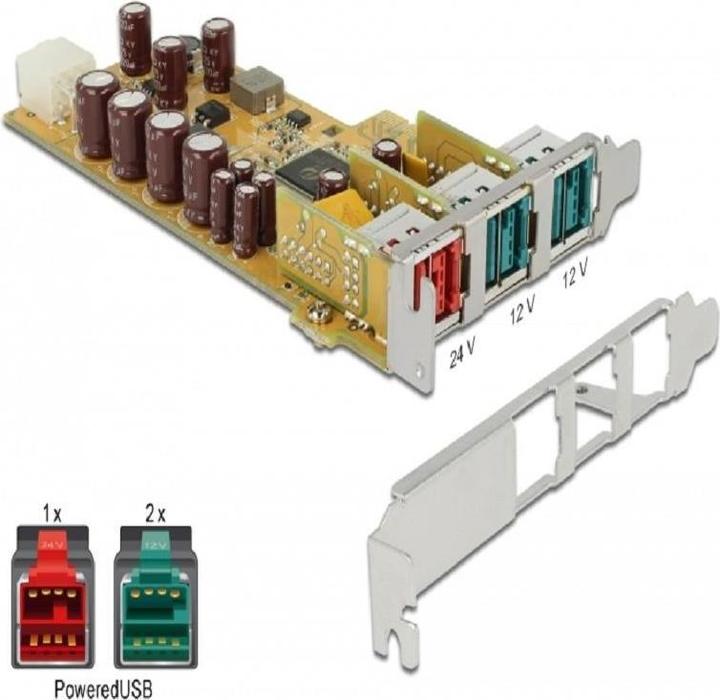

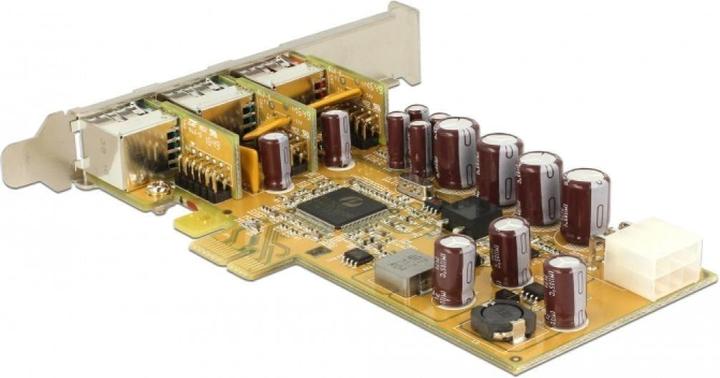

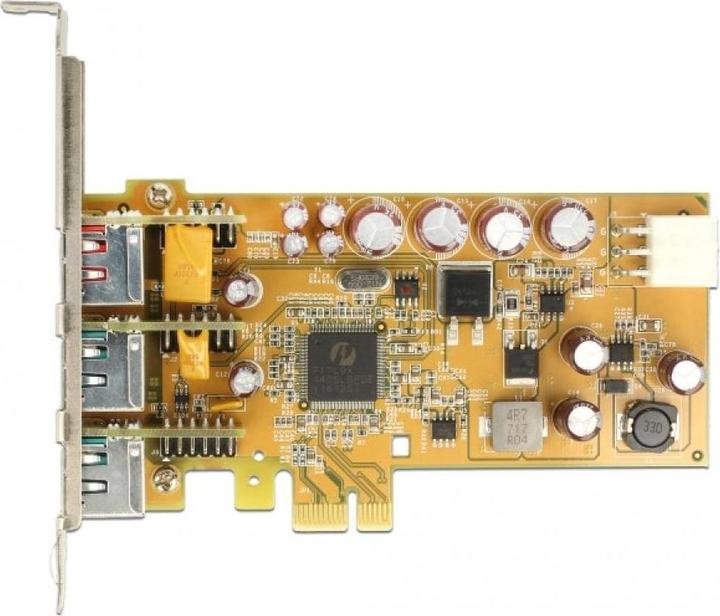

The Delock PCI Express card expands the PC with three external PoweredUSB 2.0 ports. Various USB devices, such as docking stations, card readers, external enclosures, etc., can be connected. Additionally, devices that require a power supply of 12 V or 24 V, such as barcode scanners or cash register systems, can be connected using appropriate cables, eliminating the need for an additional power supply.

Specifications:

• Connections:

external:

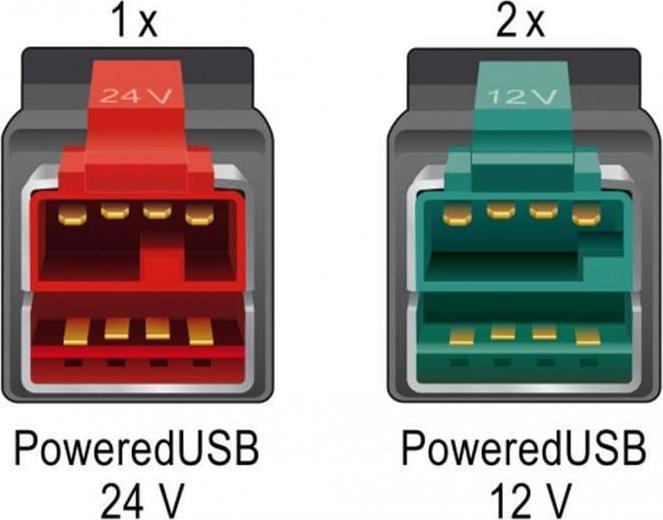

1 x PoweredUSB 2.0 Type-A socket 24 V
2 x PoweredUSB 2.0 Type-A sockets 12 V
internal:
1 x PCI Express x1, V1.1
1 x 6 Pin power connector

• Chipset: Pericom PI7C9X
• Maximum output current: 3 A per PoweredUSB port and 0.5 A for USB 2.0
• Data transfer rates up to:

Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps

• Overcurrent protection for each USB port
• Compatible with OHCI and EHCI
• ESD protection up to 15 kV

System requirements:

• Windows 7/7-64/8.1/8.1-64/10/10-64, from Linux Kernel 2.6.x / Kernel 4.9.4
• PC with a free PCI Express slot
• Power supply with a free 6 Pin power connector

Package contents:

• PoweredUSB PCI Express card

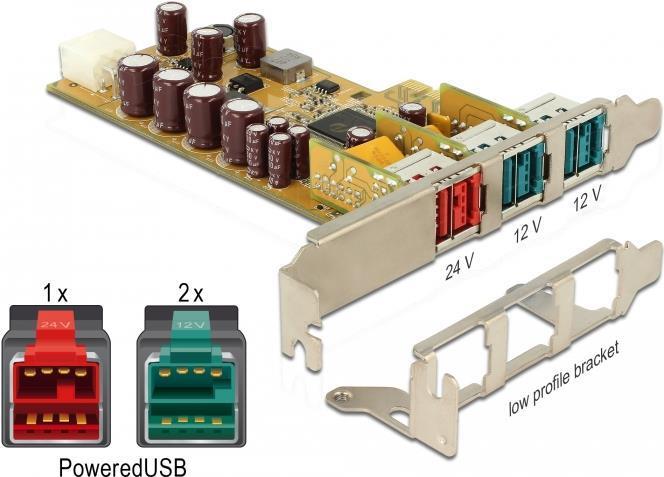

• Low profile bracket.
