This Delock converter allows the installation of an M.2 PCIe NVMe SSD with Key M or an M.2 SATA SSD with Key B in the 2280, 2260, 2242, and 2230 formats. When using an NVMe SSD, the converter connects to the U.2 interface, and when using a SATA SSD, it connects to the SATA interface.

The converter can be installed in a 2.5" bay of a docking station for HDD/SSD.

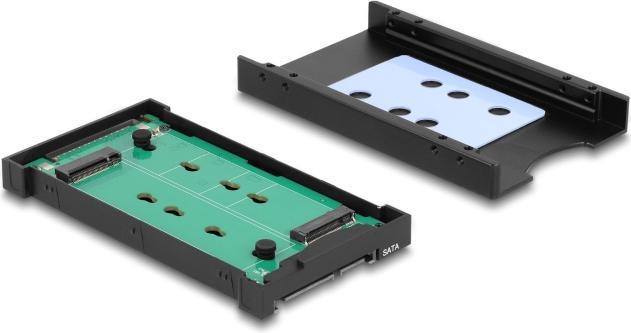

The special feature of this converter is that no tools are required to install the M.2 SSD. The SSD is inserted into the slot and secured with a rubber cap on the board.

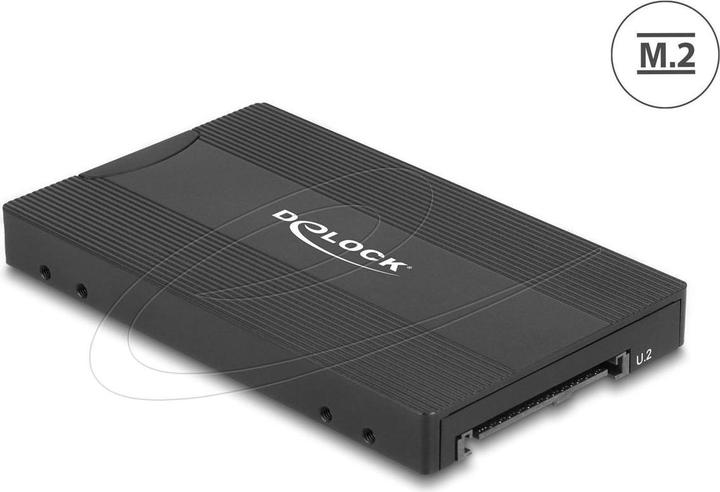

On the top side, which is made of metal, a connection to the installed SSD is established through a thermal pad inside. This ensures good cooling of the SSD.

Technical specifications:

• Connections:

external:
1 x U.2 SFF-8639 connector
1 x SATA 6 Gb/s 22 pin connector
internal:
1 x M.2 Key M slot
1 x M.2 Key B slot

• Supports M.2 modules in the formats 2280, 2260, 2242, and 2230 with Key M, Key B, or Key B+M on SATA or PCIe basis
• Maximum height of components on the module: 1.5 mm, use of double-sided modules possible
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Supports TRIM
• Dimensions (LxWxH): approx. 115 x 70 x 12 mm
• OS independent, no driver installation required

System requirements:

• An available U.2 SFF-8639 interface or
• An available SATA 22 pin interface

Package contents:

• Converter

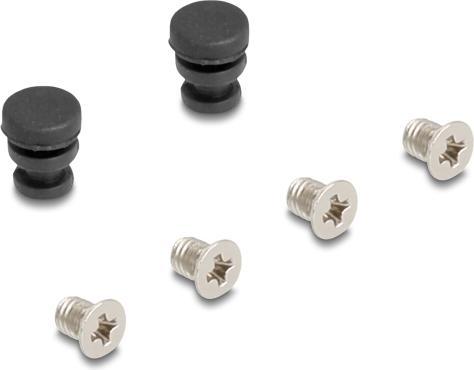

• Screws
• User manual

Packaging:

• Retail box.
