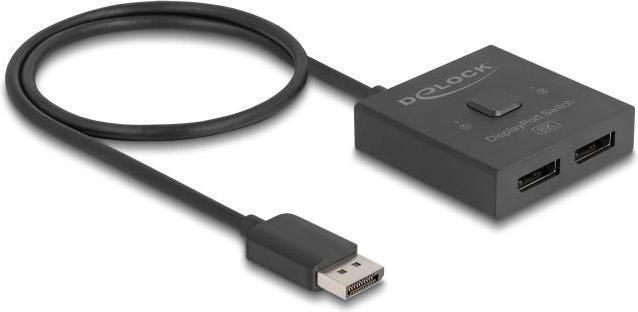

This DisplayPort switch from Delock is a manual bidirectional switch designed to connect various devices with a DisplayPort connection, offering two different usage options.

Function 1: Up to 2 devices can be connected to one monitor, TV, or projector. With the push of a button, you can select the device to be displayed on the screen.

Function 2: One DisplayPort device can be connected to up to 2 screens. With the push of a button, you can select the screen on which the signal will be displayed. Simultaneous output on multiple screens is not possible.

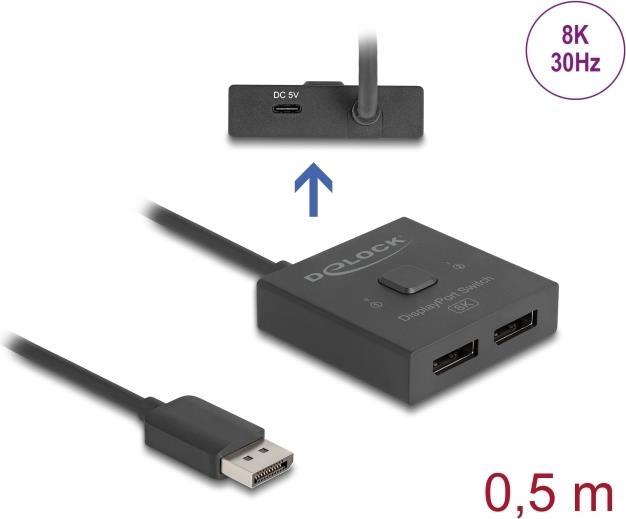

Note: The switch can be powered via the DisplayPort connector. If a device does not support power supply via DisplayPort, the switch can be powered through the USB-C port.

Specifications:

• Connections:

Function 1
Input: 2 x DisplayPort socket
Output: 1 x DisplayPort plug
Function 2
Input: 1 x DisplayPort plug
Output: 2 x DisplayPort socket

• 1 x USB Type-C socket (optional for power supply)
• 1 x switch button with LED indicators for 1 or 2
• DisplayPort 1.4 specification
• Supports HDR
• Resolution up to:

7680 x 4320 @ 30 Hz
3840 x 2160 @ 144 Hz (depending on the system and connected hardware)

• Plastic housing
• Color: black
• Dimensions (LxWxH): approx. 55 x 55 x 15 mm
• Cable length without connectors: approx. 50 cm

System requirements:

• An available DisplayPort socket
• DisplayPort cable

Package contents:

• Bidirectional switch
• User manual.
