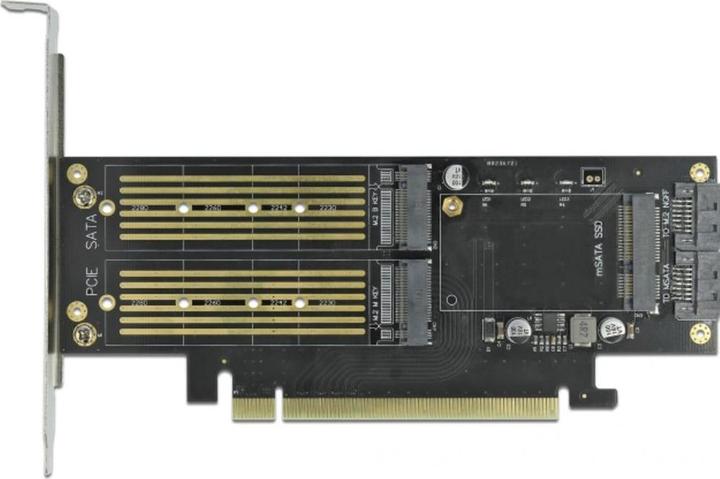

This PCI Express card from Delock expands the PC with two M.2 slots and one mSATA slot. An M.2 SATA module in 2280, 2260, 2242, or 2230 format can be connected to this card and linked to the motherboard via a SATA cable. Additionally, an M.2 NVMe/PCIe module in 2280, 2260, 2242, or 2230 format can also be connected. Furthermore, an mSATA storage can be connected and linked to the motherboard via a SATA cable. All slots can be used individually or simultaneously.

Specifications:

• Connections:
• 1 x 67 Pin M.2 Key B Slot
• 1 x 67 Pin M.2 Key M Slot
• 1 x mSATA Slot (full size)
• 1 x PCI Express x16, V4.0
• 2 x SATA 6 Gb/s 7 Pin Connectors
• Interface: PCIe / SATA
• Supports an M.2 module in 2280, 2260, 2242, and 2230 formats with Key B or Key B+M based on SATA, and an M.2 module in 2280, 2260, 2242, and 2230 formats with Key M or Key B+M based on PCIe
• Maximum height of components on the module: 1.5 mm, use of double-sided modules is possible
• 3 x LED indicators
• Bootable
• Supports NVM Express (NVMe)
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap

System Requirements:

• Linux Kernel 4.6.4 or higher
• Windows 8.1/8.1-64/10/10-64
• PC with a free PCI Express x16/x32 slot

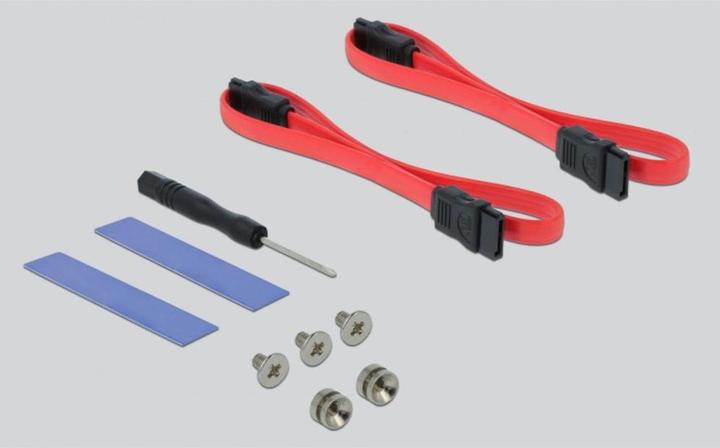

Package Contents:

• PCI Express card
• Low Profile bracket
• 2 x SATA cables, approximately 35 cm in length
• Mounting materials
• Screwdriver
• 2 x thermal pads
• User manual.
