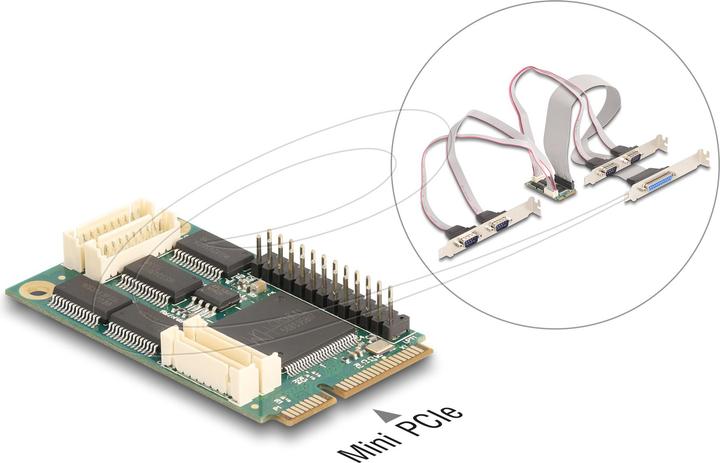

This Mini PCIe module by Delock provides you with four serial and one parallel interface, which you can connect to the outside via the slot bracket. You can connect various serial and parallel devices such as printers, scanners, and modems to the adapter.

Technical data:

• Connectors:

external: 4 x serial D-Sub 9 pin male; 1 x parallel D-Sub 25 pin female
internal: 1 x Mini PCI Express, Rev. 1.2; 4 x 10 pin male connectors; 1 x 26 pin male connector

• Chipset: WCH382L
• Form factor: Mini PCIe full size
• Serial specification:
• Data transfer rate up to 460.8 Kbps
• FIFO: 4 x 256 Byte
• Data bits: 5, 6, 7, 8
• Stop bits: 1, 2
• Parity bit: even, odd, none, marked, empty
• Flow control: none, hardware RTS/CTS, software XON/XOFF
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• Parallel specification: data transfer rate up to 1 Mbps
• SPP, PS2, EPP, ECP compatible with IEEE 1284
• Cable length included: approx. 25 cm (including connections)
• Dimensions (LxWxH): approx. 51 x 30 x 10 mm

System requirements:

• Windows 10/10-64/11
• Windows Server 2022
• Mainboard with one free Mini PCIe slot with PCIe interface

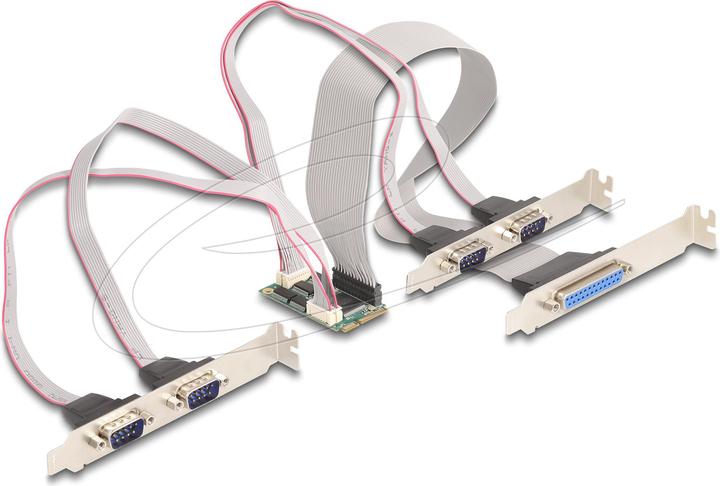

Package contents:

• Mini PCIe module
• 4 serial connection cables
• 1 parallel connection cable

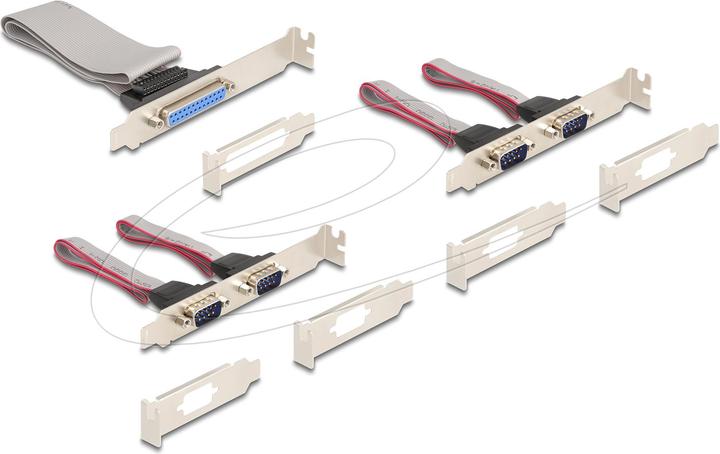

• 3 standard bezels
• 5 low profile bezels
• Operating instructions.
